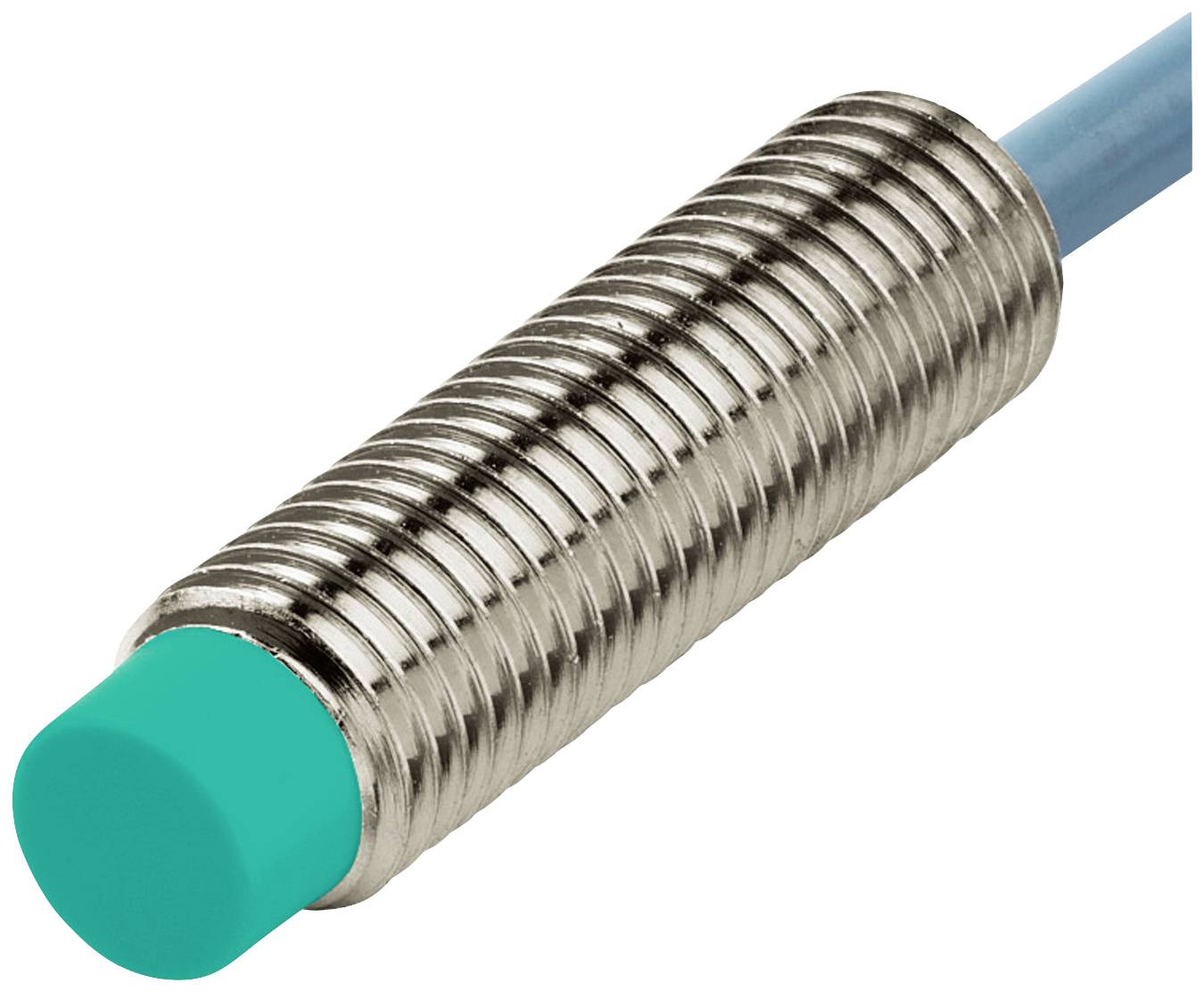

Image similar
Pepperl+Fuchs Sensor Inductive NJ2-8GM-N-Y33681 033681 M8 non-shielded NAMUR
Product type
Sensor
Max. operating voltage
8 V
Contact type
1 breaker
Switching distance (max.)
2 mm
Outputs
NAMUR
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NJ2-8GM-N-Y33681
- Max. operating voltage
8 V
- Operating voltage
8 V (max)
- Contact type
1 breaker
- Switching distance (max.)
2 mm
- Outputs
NAMUR
- Enclosure material
Stainless steel V2A
- Model
Inductive
- Material properties
rust-proof
- Installation type
non-shielded
- Size
M8
- Connector
Cable
- Cable length
0.5 m
- Min. temperature
-20 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
5000 Hz
Documents & Downloads
Datasheet
Datasheet 2627695 Pepperl+Fuchs Sensor Inductive NJ2-8GM-N-Y33681 033681 M8 non-shielded NAMUR
User & Safety Instructions
User & Safety Instructions 2627695 Pepperl+Fuchs Sensor Inductive NJ2-8GM-N-Y33681 033681 M8 non-shielded NAMUR
Description
Switching distance 2 mm, installation: Non-flush, switching function: NC contact (NC), output type: NAMUR, nominal voltage: 8 V.
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: NC contact (NC)Output type: NAMURSwitching distance: 2 mmInstallation: Non-flushSafe switching distance: 0 ... 1.62 mmReduction factor forAl: 0.4Reduction factor rCu: 0.3Reduction factor rV2A (1.4301) : 0.85Output type: 2-wireCharacteristicsNominal voltage: 8 VSwitching frequency: 0 ... 5000 HzHysteresis: 1 ... 10 type. 5%Current consumption Measuring plate not detected: Min. 3 mA Measuring plate recorded: ≤ 1 mAFunctional safety characteristicsMTTFd: 5887 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance NAMUR: EN 60947-5-6:2000 | IEC 60947-5-6:1999 Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeAmbient conditionsAmbient temperature: -20 ... 70 °C (-4 ... 158 °F)Mechanical data:Connection type: Cable PVC, 0.5 mWire cross-section 0.14 mm2Housing material: Stainless steel 1.4305 / AISI 303 (V2A)Face: PBTProtection class IP67
