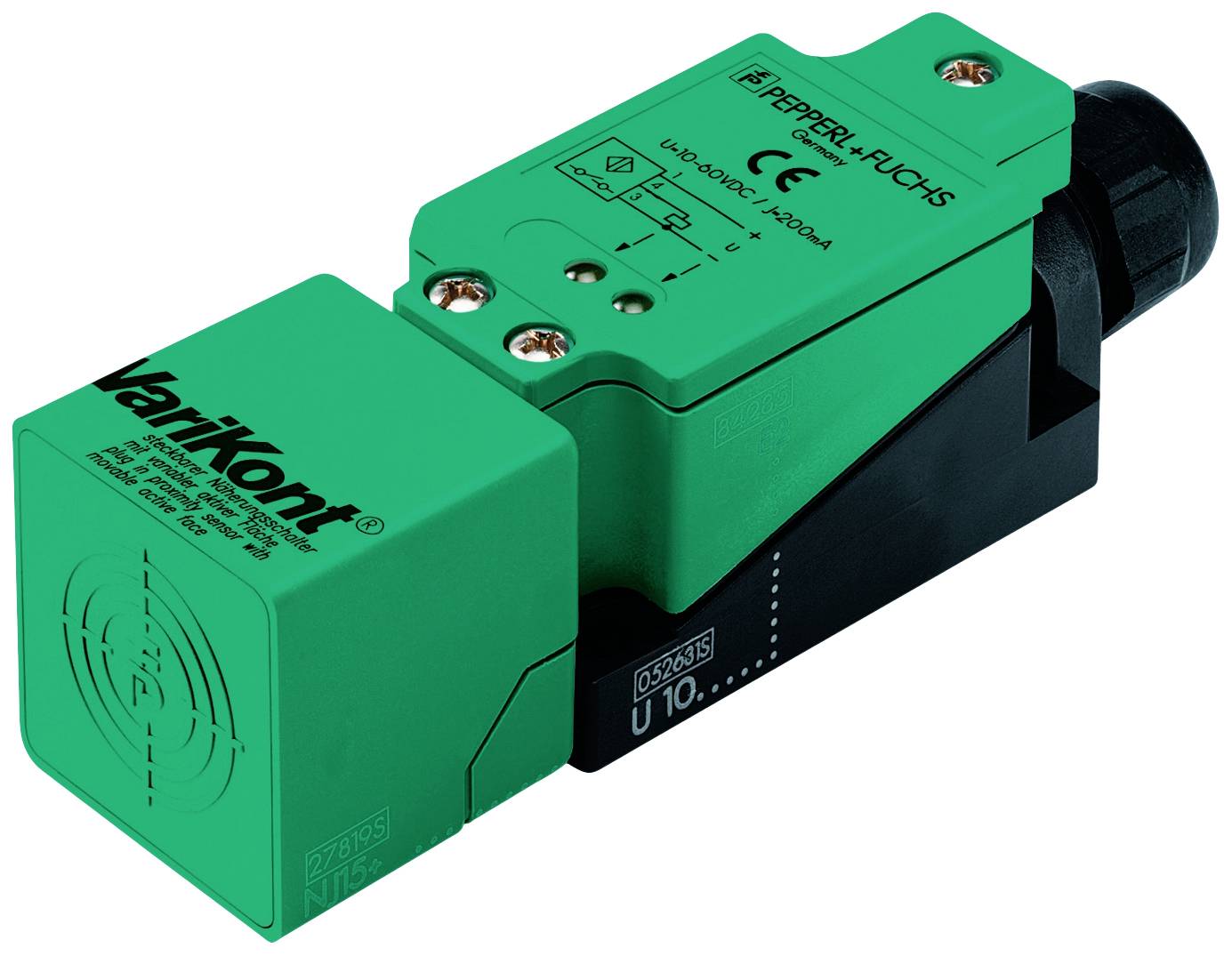

Image similar
Pepperl+Fuchs Sensor Inductive NJ20+U1+E2-Y287109 287109 shielded PNP
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 maker
Switching distance (max.)
20 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NJ20+U1+E2-Y287109
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Contact type
1 maker
- Switching distance (max.)
20 mm
- Outputs
PNP
- Enclosure material
PBT
- Model
Inductive
- Installation type
shielded
- Connector
Screw terminals
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
150 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628347 Pepperl+Fuchs Sensor Inductive NJ20+U1+E2-Y287109 287109 shielded PNP
User & Safety Instructions
User & Safety Instructions 2628347 Pepperl+Fuchs Sensor Inductive NJ20+U1+E2-Y287109 287109 shielded PNP
Description
Switching distance: 20 mm, installation: Flush, switching function: Normally open contact (NO), output type: PNP, operating voltage: 10 ... 30 V, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: PNPSwitching distance: 20 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 16.2 mmReal switching distance: 18 ... 22 mm type. 20 mmReduction factor rAl: 0.35Reduction factor rCu: 0.35Reduction factor rV2A (1.4301) : 0.8Output type: 3-wireCharacteristicsOperating voltage 10 ... 30 VSwitching frequency: 0 ... 150 HzHysteresis: 1 ... 10 type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 2.8 VVoltage drop at IL. Voltage drop IL = 1mA, switching element on: 0.5 ... 2.3 V type. 0.9 V Voltage drop IL = 10mA, switching element on: 0.8 ... 2.2 V type. 1.4 V Voltage drop IL = 20mA, switching element on: 0.9 ... 2.3 V type. 1.5 V Voltage drop IL = 50mA, switching element on: 0.9 ... 2.5 V type. 1.6 V Voltage drop IL = 100mA, switching element on: 1 ... 2.6 V type. 1.8 V Voltage drop IL = 200mA, switching element on: 1.2 ... 2.8 V type. 2 VOperating current: 0 ... 200 mAResidual current: 0 ... 0.5 mA type. 0.01 mA Residual current TU =40 °C Switching element off: ≤ 100 µANo-load current ≤ 10 mAStandby delay: ≤ 50 msOperating voltage display: LED, greenSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 819 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -25 ... 85 °C (-13 ... 185 °F)Mechanical data:Connection type: Screw terminalsConnection information: A maximum of 2 conductors with the same wire cross-section may be mounted at one clamping point! | Torque 1.2 Nm + 10 %Wire cross-section: Up to 2.5 mm2 Smallest wire cross-section: Without wire-end sleeves 0.5 mm2 , with wire-end sleeves 0.34 mm2 Largest wire cross-section: Without wire-end sleeves 2.5 mm2 , with wire-end sleeves 1.5 mm2Cable gland Note: Recess sealing ring: | Hole diameter 7 / 10.5 / 13 / 16 mm | The dimension of the connection cable must correspond to the selected hole of the undercut ring.Housing material: PBT with Viton seals and PVDF screw connectionFace: PBTProtection class: IP68
