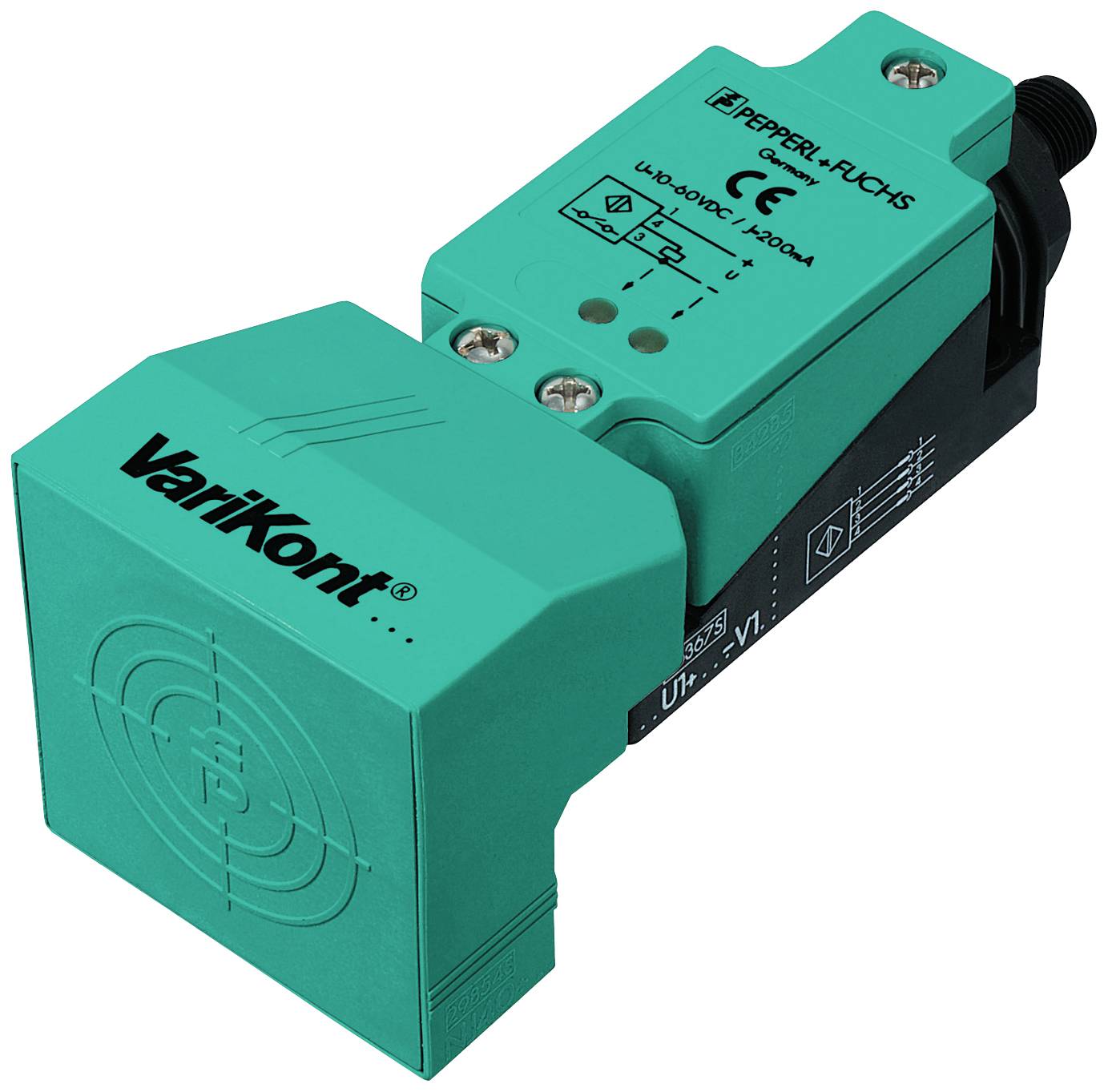

Pepperl+Fuchs Sensor Inductive NJ40+U1+E2-T-V1 196264 M12 non-shielded PNP
Product type
Sensor
Max. operating voltage
60 V
Contact type
1 maker
Switching distance (max.)
40 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NJ40+U1+E2-T-V1
- Min. operating voltage
10 V
- Max. operating voltage
60 V
- Operating voltage
10 - 60 V
- Contact type
1 maker
- Switching distance (max.)
40 mm
- Outputs
PNP
- Enclosure material
PBT
- Model
Inductive
- Installation type
non-shielded
- Size
M12
- Connector
M12 plug (4-pin)
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
100 °C
IP68
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
300 Hz
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2627931 Pepperl+Fuchs Sensor Inductive NJ40+U1+E2-T-V1 196264 M12 non-shielded PNP
User & Safety Instructions
User & Safety Instructions 2627931 Pepperl+Fuchs Sensor Inductive NJ40+U1+E2-T-V1 196264 M12 non-shielded PNP
Description
Switching distance: 40 mm, installation: Non-flush, switching function: Normally open contact (NO), output type: PNP, operating voltage: 10 ... 60 V, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: PNPSwitching distance: 40 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 32.4 mmReduction factor forAl: 0.4Reduction factor rCu: 0.3Reduction factor rV2A (1.4301) : 0.85Output type: 3-wireCharacteristicsOperating voltage 10 ... 60 VSwitching frequency: 0 ... 300 HzHysteresis: type. 3%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 3 VOperating current: 0 ... 200 mANo-load current ≤ 20 mAStandby delay: ≤ 20 msOperating voltage display: LED, greenSwitching status indicator: LED, yellowCompliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeAmbient conditionsAmbient temperature: -25 ... 100 °C (-13 ... 212 °F)Mechanical data:Connection type: Device plug M12 x 1, 4-pinHousing material: PBTFace: PBTProtection class: IP68Weight 130 g
