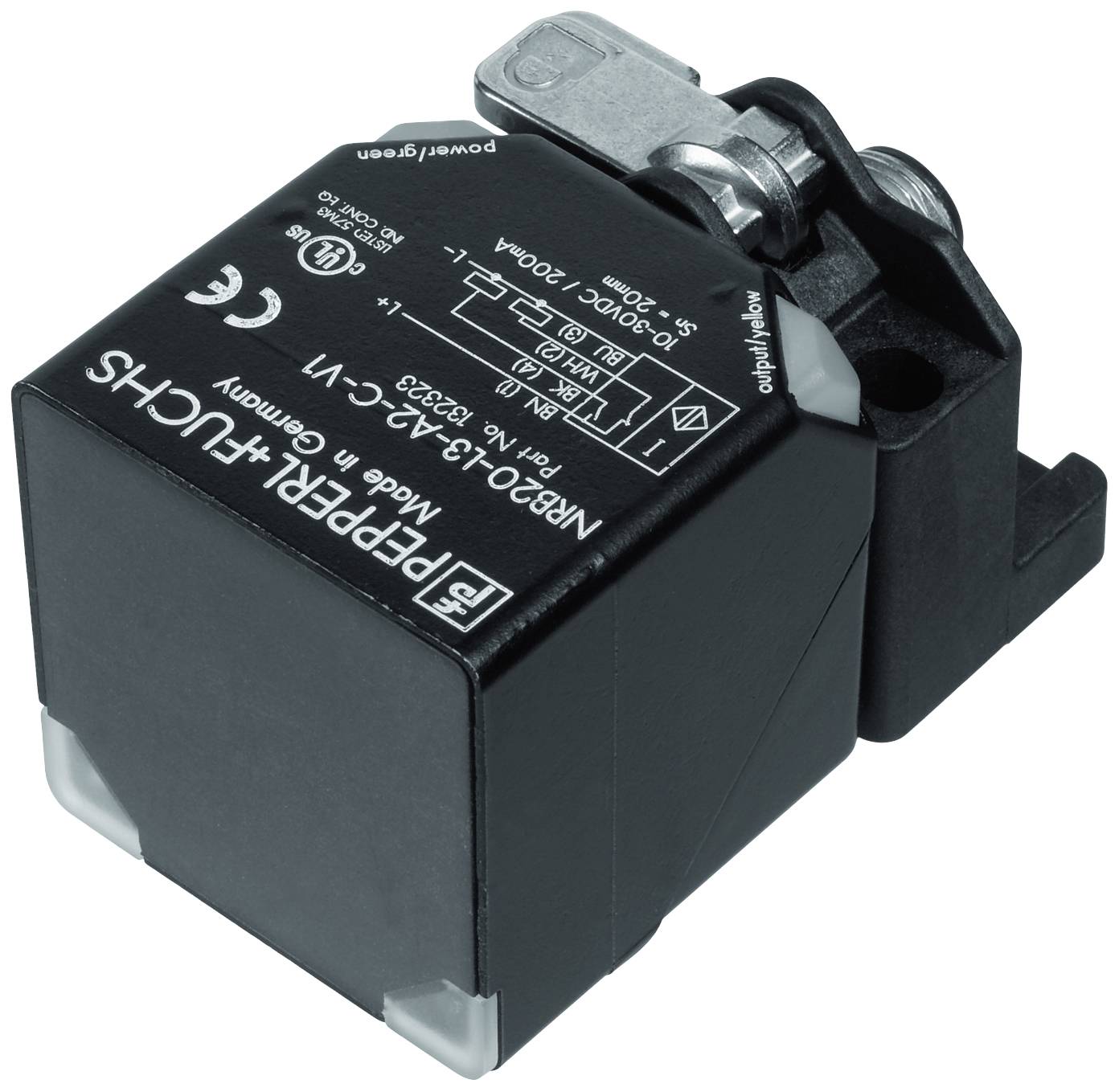

Pepperl+Fuchs Sensor Inductive NRB20-L3-A2-C-V1 306534-0101 shielded PNP
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
Antivalent
Switching distance (max.)
20 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NRB20-L3-A2-C-V1
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Antivalent
- Switching distance (max.)
20 mm
- Outputs
PNP
- Enclosure material
GD-ZnAl4Cu1
- Model
Inductive
- Installation type
shielded
- Connector
M12 plug (4-pin)
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
440 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628469 Pepperl+Fuchs Sensor Inductive NRB20-L3-A2-C-V1 306534-0101 shielded PNP
User & Safety Instructions
User & Safety Instructions 2628469 Pepperl+Fuchs Sensor Inductive NRB20-L3-A2-C-V1 306534-0101 shielded PNP
Description
Switching distance: 20 mm, installation: Flush, switching function: Antivalent, output type: PNP, operating voltage: 10 ... 30 V DC, operating current: 0 ... 200 mA
