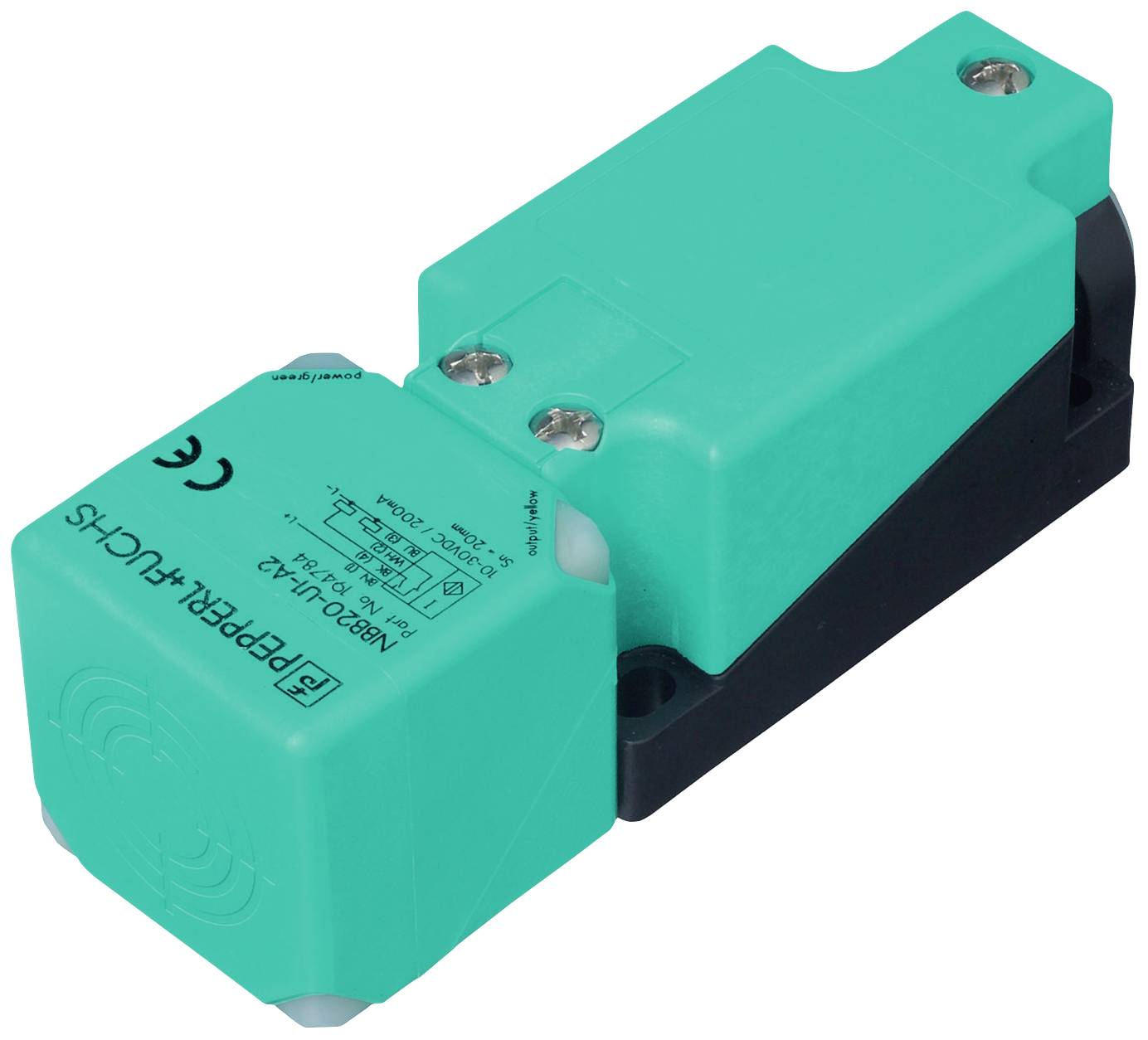

Pepperl+Fuchs Sensor Inductive NRB20-U1-E2-IO 306534-0005 shielded PNP
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 breaker
1 maker
Switching distance (max.)
20 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NRB20-U1-E2-IO
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 breaker
1 maker
- Switching distance (max.)
20 mm
- Outputs
PNP
- Enclosure material
Polyamide
- Model
Inductive
- Material properties
powder-coated
- Installation type
shielded
- Connector
Screw terminals
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
440 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628465 Pepperl+Fuchs Sensor Inductive NRB20-U1-E2-IO 306534-0005 shielded PNP
User & Safety Instructions
User & Safety Instructions 2628465 Pepperl+Fuchs Sensor Inductive NRB20-U1-E2-IO 306534-0005 shielded PNP
Description
Switching distance: 20 mm (factory setting), installation: Flush, switching function: Normally open contact/normally closed contact (NO/NC) programmable, output type: PNP, operating voltage: 10 ... 30 V DC, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Normally open contact/normally closed contact (NO/NC) can be programdOutput type: PNPSwitching distance 20 mm (factory setting)15 mm (software activated)Installation: FlushOutput polarity: DCSafe switching distance: 0 ... 16.2 mmReduction factor forAl: 1Reduction factor rCu: 1Reduction factor rV2A (1.4301) : 1Reduction factor rSt37: 1Output type: 3-wireCharacteristicsOperating voltage 10 ... 30 V DCSwitching frequency: 0 ... 440 Hz (switching point mode) | 0 ... 10 Hz (window operation, switching point operation with stability alarm)Hysteresis: type. 3%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 0.5 V.Operating current: 0 ... 200 mAResidual current: 0 ... 0.5 mA type. 60 µA at 25 °C.No-load current ≤ 20 mAStandby delay: Max. 150 msMagnetic DC field 200 MTMagnetic field: 200 MTOperating voltage display: LED, greenStatus indicator: LED, yellowFunctional safety characteristicsMTTFd: 701 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%InterfaceInterface type: IO-Link ( via C/Q = terminal 4 )IO-Link version: 1.1Device ID: 0x201005 (2101253)Transfer rate: COM2 (38.4 kBit/s)Min Cycle time: 2.3 msProcess data width: Process data input (control side): 2 bits | Process data output (control side): None"SIO Mode" support: YesCompatible master port type: A.Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesProtection class: II Rated insulation voltage 60 V. Rated surge voltage resistance 800 V.UL approval: CULus Listed, General Purpose | Class 2 power sourceCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: Screw terminalsConnection information: A maximum of 2 conductors with the same wire cross-section may be mounted at one clamping point! | Torque 1.2 Nm + 10 %Wire cross-section: Up to 2.5 mm2 Smallest wire cross-section: Without wire-end sleeves 0.5 mm2 , with wire-end sleeves 0.34 mm2 Largest wire cross-section: Without wire-end sleeves 2.5 mm2 , with wire-end sleeves 1.5 mm2Housing material: PA/metal with epoxy powder coatingFront face: PAHousing bottom: PlasticProtection class IP67Weight 275 gNote: Tightening torque: 1.8 Nm (housing)Factory settingsDefault setting: Operating mode = switching point operation with stability alarm | Switching function = NO contact (NO) | Switching distance = 20 mm
