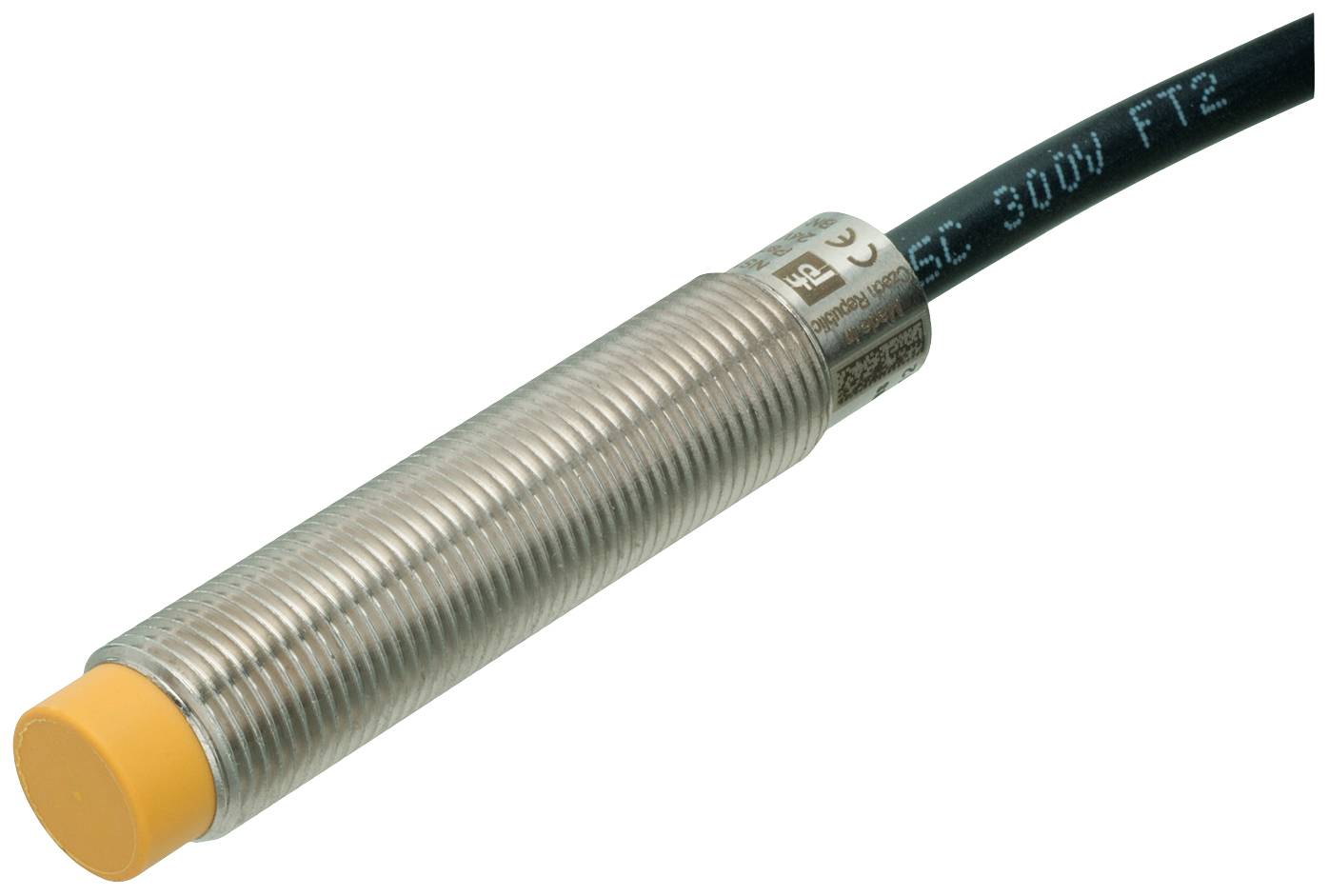

Pepperl+Fuchs Sensor Inductive NSN4-12GH50-2E2-S2D2 304276-000016 non-shielded PNP
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Contact type
2 makers
Switching distance (max.)
4 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NSN4-12GH50-2E2-S2D2
- Min. operating voltage
18 V
- Max. operating voltage
30 V
- Operating voltage
18 - 30 V
- Contact type
2 makers
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
Stainless steel V4A
- Model
Inductive
- Installation type
non-shielded
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
IP69
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
30 Hz
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2627947 Pepperl+Fuchs Sensor Inductive NSN4-12GH50-2E2-S2D2 304276-000016 non-shielded PNP
User & Safety Instructions
User & Safety Instructions 2627947 Pepperl+Fuchs Sensor Inductive NSN4-12GH50-2E2-S2D2 304276-000016 non-shielded PNP
Description
Switching distance: 4 mm, installation: Non-flush, switching function: 2 x NO contact (NO), output type: PNP, operating voltage: 18 ... 30 V, operating current: 1 ... 30 mA per output
