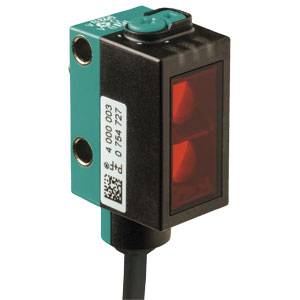

Pepperl+Fuchs Sensor OMT50-R101-2EP-IO-L 267075-100212 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor
Max. operating voltage
30 V DC
Connector
Cable
Type
OMT50-R101-2EP-IO-L
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 0.5 mm at a distance of 50 mm, switching voltage max. 30 V/DC, opening angle: approx. 0.6°, function indicator: LED yellow, switching current 100 mA
- Packaging type
Piece
- Product type
Sensor
- Type
OMT50-R101-2EP-IO-L
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
2 ms
- Outputs
2x PNP Antivalent
- Connector
Cable
- Cable length
2.00 m
- Enclosure material
PC
- Transmitter type
Laser diode
- Laser class
1
- Wavelength
680 nm
50 mm
IP67
IP69
IP69K
- Min. temperature
+10 °C
- Max. temperature
+60 °C
- Width
13.9 mm
- Height
41.4 mm
- Depth
18.3 mm
- Dim
(W x H x D) 13.9 x 41.4 x 18.3 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2130515 Pepperl+Fuchs Sensor OMT50-R101-2EP-IO-L 267075-100212 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2130515 Pepperl+Fuchs Sensor OMT50-R101-2EP-IO-L 267075-100212 1 pc(s)
Conformity certificate
Conformity certificate 2130515 Pepperl+Fuchs Sensor OMT50-R101-2EP-IO-L 267075-100212 1 pc(s)
Description
Measurement on object, range 50 mm, laser light red, laser class 1, measured value via IO-Link, 2 x push-pull output, 2 m fixed cable
This text is machine translated.
This text is machine translated.
Hints
For more information on this 267075-100212, please refer to its datasheet under 'downloadable documents'
