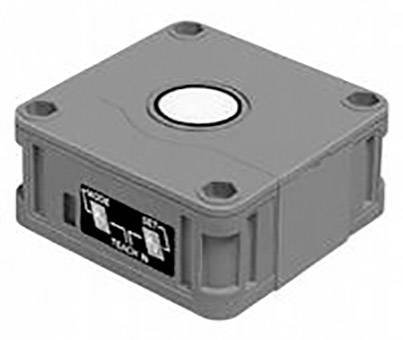

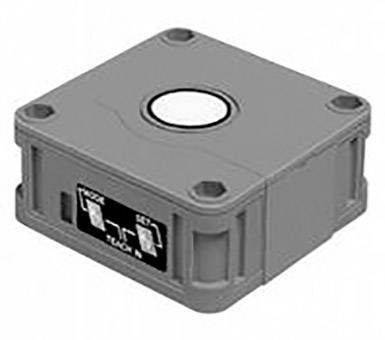

Pepperl+Fuchs Sensor Ultrasound Analogue UB2000-F42S-U-V15
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
Analogue
Switching distance (max.)
2000 mm
Model
Ultrasound
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Detection range 60 mm - 2000 mm
- Blind zone: 0 mm - 60 mm
- Setting range 90 mm - 2000 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 175 kHz
- Response delay: Approx. 150 ms
- LED green: Permanent green: Power on
- Red LED: Normal operation: Malfunction, learning function: No object detected
- No-load current ≤ 50 mA
- Storage temperature: -40 °C to +85 °C.
- Resolution 0.7 mm
- Synchronization frequency, common mode: Max. 30 Hz
- Reproducibility: ± 0.1% of the final value
- Default setting: Evaluation limit A1: 90 mm, evaluation limit A2: 2000 mm, wide ultrasound beam
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane, cover PBT
- Weight 140 g
- Characteristic deviation: ± 1% from the end value
- Load impedance>: 1 kOhm
- Product type
Sensor
- Type
UB2000-F42S-U-V15
- Min. operating voltage
17 V DC
- Max. operating voltage
30 V DC
- Operating voltage
17 - 30 V DC
- Outputs
Analogue
- Switching distance (max.)
2000 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12 (5-pin)
- Enclosure material
Acrylonitrile butadiene styrene
- Contact type
Analogue
IP54
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- UKCA
yes
