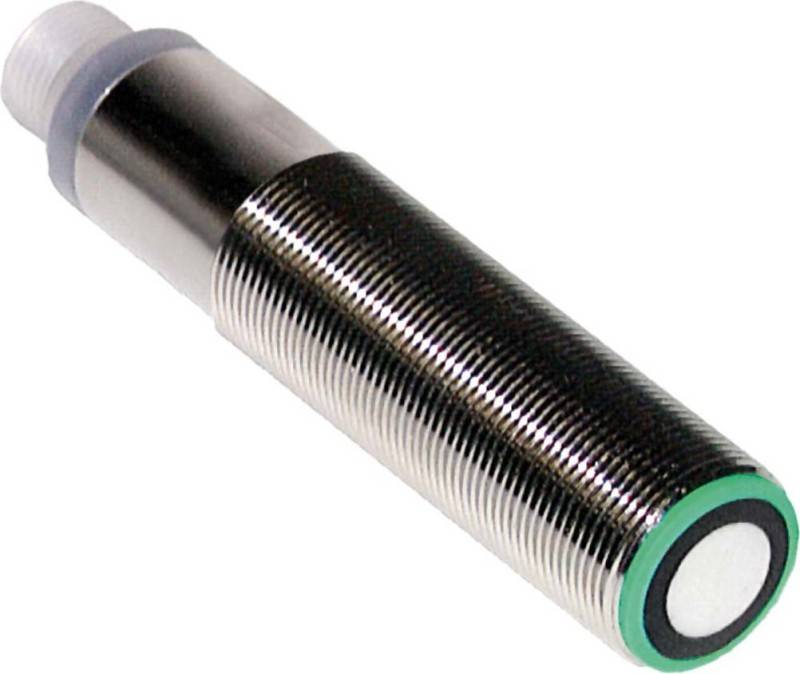

Pepperl+Fuchs Sensor Ultrasound M18 PNP UB500-18GM75-E6-V15
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP
Switching distance (max.)
500 mm
Model
Ultrasound
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Detection range 30 mm - 500 mm
- Blind zone: 0 mm - 30 mm
- Setting range 50 mm - 500 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 380 kHz
- Response delay: Approx. 50 ms
- Red LED: Fault, object unsafe, in learning function: No object detected
- No-load current ≤ 50 mA
- Storage temperature: -40 °C to +85 °C.
- Distance hysteresis: 1 % of the set switching distance
- Rated operating current 2 x 100 mA, short-circuit/overload-proof
- Voltage drop ≤ 3 V
- Reproducibility: ≤ 1%
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane, cover PBT
- Weight 60 g
- Product type
Sensor
- Type
UB500-18GM75-E6-V15
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching distance (max.)
500 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12 (5-pin)
- Size
M18
- Material properties
nickel plated
- Enclosure material
Brass
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
75 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 75 mm
- Switching frequency
8 Hz
- UKCA
yes
