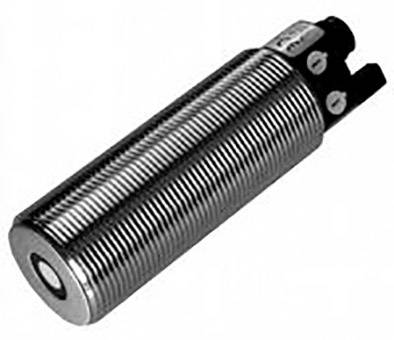

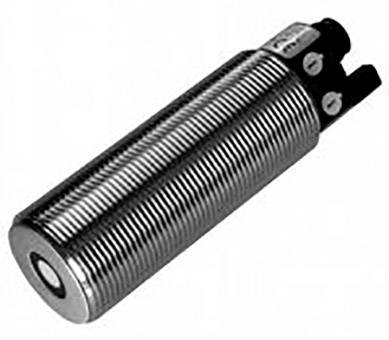

Pepperl+Fuchs Sensor Ultrasound M30 PNP NO UC500-30GM70-2E2R2-V15
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP NO
Switching distance (max.)
500 mm
Model
Ultrasound
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Detection range 45 mm - 500 mm
- Blind zone: 0 mm - 45 mm
- Setting range 50 mm - 500 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 300 kHz
- Response delay: ≤ 60 ms
- No-load current ≤ 50 mA
- Storage temperature: -40 °C to +85 °C.
- Interface type: Infrared
- Input/output type: 1 synchronization connection, bidirectional ( default setting
- Common mode ) / Teach-in input
- Input impedance: Type. 900 Ω
- Voltage drop ≤ 3 V
- Pre-setting: 50 mm - 500 mm (adjustable via potentiometer)
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane
- Weight 140 g
- Operating current 50 mA, short-circuit/overload-proof
- Residual current ≤ 10 µA
- LED green/yellow: Yellow: Switching status switching output 2, green: Teach-in
- Potentiometer: Switch output 1 and switch output 2 adjustable
- Number of sensors: Max. 10
- Repeat accuracy ± 0.5 mm
- Switching hysteresis: 5 mm (parameterizable)
- Design: Cylindrical
- Product type
Sensor
- Type
UC500-30GM70-2E2R2-V15
- Min. operating voltage
12 V DC
- Max. operating voltage
30 V DC
- Operating voltage
12 - 30 V DC
- Outputs
PNP NO
- Switching distance (max.)
500 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12 (5-pin)
- Size
M30
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
2 makers
IP65
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Switching frequency
≤ 5 Hz
- UKCA
yes
