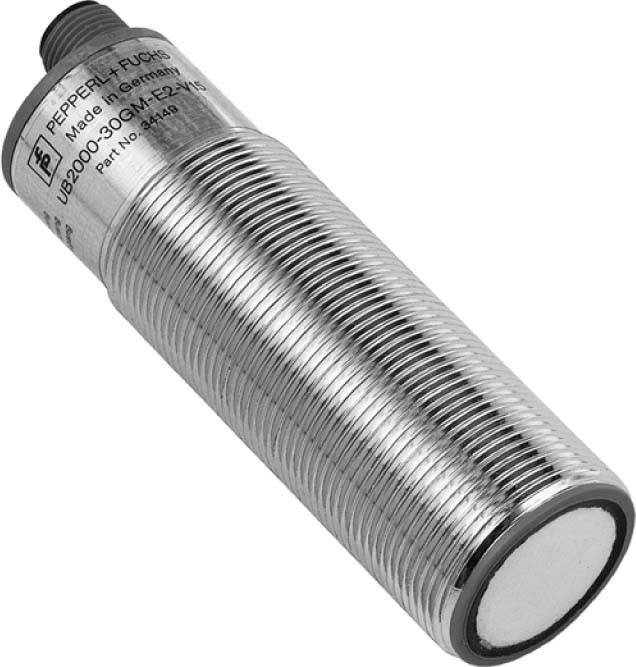

Pepperl+Fuchs Sensor Ultrasound M30 PNP UB2000-30GM-E5-V15
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP
Switching distance (max.)
2000 mm
Model
Ultrasound
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Detection range 80 mm - 2000 mm
- Blind zone: 0 mm - 80 mm
- Setting range 120 mm - 2000 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 180 kHz
- Response delay: Approx. 150 ms
- LED green: Permanent: Power on, flashing: Learning function object detected
- Red LED: Normal operation: Malfunction, learning function: No object detected
- No-load current ≤ 50 mA
- Storage temperature: -40 °C to +85 °C.
- Distance hysteresis: 1 % of the set switching distance
- Synchronization frequency, common mode: Max. 30 Hz
- Rated operating current 200 mA, short-circuit/overload-proof
- Voltage drop: ≤ 2.5 V
- Reproducibility: ≤ 0.5 % from switching point
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane
- Weight 140 g
- Product type
Sensor
- Type
UB2000-30GM-E5-V15
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching distance (max.)
2000 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12 (5-pin)
- Size
M30
- Material properties
nickel plated
- Enclosure material
Brass
PBT
- Contact type
1 PNP
IP65
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
94 mm
- (Ø)
30 mm
- Dim
(Ø x L) 30 mm x 94 mm
- Switching frequency
≤ 3.3 Hz
- UKCA
not relevant
