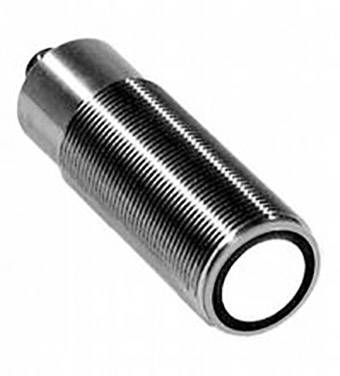

Pepperl+Fuchs Sensor Ultrasound M30 PNP UB2000-30GM-H3-V1 Piece
Packaging type
Piece
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP
Switching distance (max.)
2000 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Detection range 80 mm - 2000 mm
- Blind zone: 0 mm - 80 mm
- Setting range 120 mm - 2000 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 180 kHz
- No-load current ≤ 30 mA
- Storage temperature: -40 °C to +85 °C.
- Rated operating current: 15 mA, short-circuit/overload-proof
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane
- Weight 140 g
- Pause duration: ≥ 50 x pulse duration
- Impedance: 10 kOhm internally connected to +UB
- Packaging type
Piece
- Product type
Sensor
- Type
UB2000-30GM-H3-V1
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching distance (max.)
2000 mm
- Model
Ultrasound
- Features
LED display connector
- Connector
M12 (4-pin)
- Size
M30
- Material properties
nickel plated
- Enclosure material
Brass
PBT
- Contact type
1 PNP
IP67
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Length
80 mm
- (Ø)
30 mm
- Dim
(Ø x L) 30 mm x 80 mm
- UKCA
not relevant
