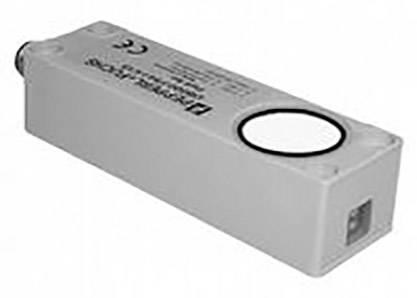

Pepperl+Fuchs Sensor Ultrasound PNP UB2000-F54-E5-V15
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP
Switching distance (max.)
2000 mm
Model
Ultrasound
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Detection range 80 mm - 2000 mm
- Blind zone: 0 mm - 80 mm
- Setting range 100 mm - 2000 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 175 kHz
- Response delay: ≤ 150 ms
- Green LED: Steady green: Power indicator, flashing green: Learning function
- LED red: Flashing: Normal operation: Malfunction, learning function: Object not detected, permanent: Learning function, object unsafe
- No-load current ≤ 55 mA
- Storage temperature: -40 °C to +85 °C.
- Distance hysteresis: ≤ 1 % of the set switching distance
- Synchronization frequency, common mode: Max. 33 Hz
- Rated operating current 200 mA, short-circuit/overload-proof
- Voltage drop ≤ 3 V
- Reproducibility: ≤ 1% of the final value
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane
- Weight 100 g
- Product type
Sensor
- Type
UB2000-F54-E5-V15
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching distance (max.)
2000 mm
- Model
Ultrasound
- Connector
M12 (5-pin)
- Enclosure material
Acrylonitrile butadiene styrene
- Contact type
1 PNP
IP65
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Switching frequency
3 Hz
- UKCA
yes
