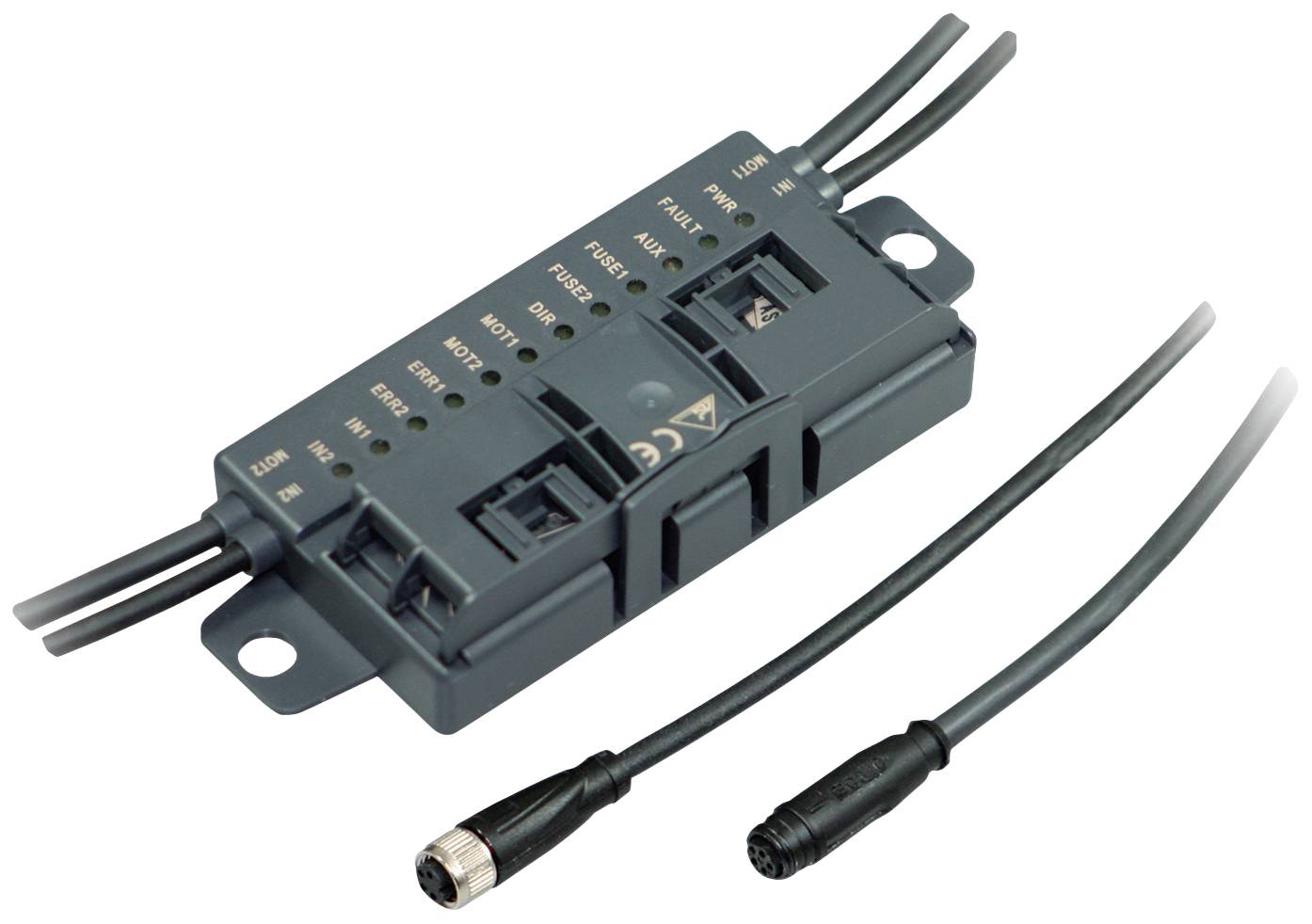

Image similar
Pepperl+Fuchs VBA-4E4A-G20-ZEJ/M3L-P10 70130650 Sensor & actuator box (active) Multi splitter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (active)
Type
VBA-4E4A-G20-ZEJ/M3L-P10
Status indicator
LED
Signal type
PNP
IP rating
IP54
Datasheet (PDF)
Technical specifications
- Product type
Sensor & actuator box (active)
- Type
VBA-4E4A-G20-ZEJ/M3L-P10
- Status indicator
LED
- Signal type
PNP
IP54
- Max. temperature
70 °C
- Min. temperature
-25 °C
- Weight
310 g
- Manufacturer part #
70130650
- Content
1 pc(s)
- Features
Current limiter
- Power rating (total)
170 mA
- Wireless charging
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2630206 Pepperl+Fuchs VBA-4E4A-G20-ZEJ/M3L-P10 70130650 Sensor & actuator box (active) Multi splitter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2630206 Pepperl+Fuchs VBA-4E4A-G20-ZEJ/M3L-P10 70130650 Sensor & actuator box (active) Multi splitter 1 pc(s)
Description
G20 motor control module for Itoh Denki PM500XE and PM500XP; AS-Interface specification: V3.0; Protection class: IP54 according to EN 60529; Protection class: EN 60529:2000; Mounting: 2 mounting brackets with hole Ø 8 mm
This text is machine translated.
This text is machine translated.
Features
- General dataSubscriber type: A/B subscriberAs-Interface specification: V3.0Required gateway specification: ≥ V3.0Profile: S-7.A.7 IO code: 7 ID code: A. ID1 code: 7 ID2 code: 7UL File Number: E223772 "for use in NFPA 79 Applications only"MTBF 98aCompatible roller motors: Itoh Denki PM*XP, Itoh Denki PM*XEDisplays/controlsFault LED: Error display; red LED | red: Communication error or address is 0 | red flashing: Sensor supply overload or speed signal overload or external auxiliary voltage UAUX missingLED PWR: As-Interface voltage; LED green | green: Voltage OK | green flashing: Address 0 or overload sensor supply or overload speed signal or external auxiliary voltage UAUX missingAUX LED: EXT. Auxiliary voltage UAUX; Dual LED green/red | green: Voltage OK | red: Voltage reversedLED IN: Switching state (input); 2 LEDs yellowLED FUSE: Motor supply; 2 LED greenLED DIR: Motor rotation direction; LED yellowLED MOT: Motor active; 2 LEDs yellowElectrical DataAuxiliary voltage (output): 18 ... 30 V DC PELVRated operating voltage: 26.5 ... 31.6 V from AS-InterfaceRated operating current: ≤ 25 mA (without sensors) / max. 170 mAInputNumber/type: 2 inputs for 3-wire sensors (PNP), DCSupply: From AS-InterfaceCurrent carrying capacity: 100 mA, overload and short-circuit proofInput current ≤ 6 mA (internally limited)Switching point: According to DIN EN 61131-2 | 0 (undamped) ≤ 0.5 mA | 1 (attenuated) ≥ 2.0 mASignal delay < : 1 ms (input/AS-Interface)Input filter: 2 msOutputNumber/type: 2 outputs for DC roller motors (MOT1, MOT2)Supply: From external auxiliary voltage UAUXCurrent: 3.5 A continuous current , 5 A (<2 s) , max. 7.5 A (<0.3 s) per motorOverload protection: Safety fuse , I2t = 53.7 A2s.Speed signal: 0 ... 10 V DC | Control via parameter P1:0Direction of rotation signal: Digital output PNP | low: High resistance | high; ≥ (UAUX - 2.5 V) in idle modeStarting signal: Digital output PNP | low: High resistance | high; ≥ (UAUX - 2.5 V) in idle modeComplianceElectromagnetic compatibility Directive 2014/30/EU: EN 62026-2:2013ComplianceProtection class EN 60529:2000Fieldbus standard: EN 62026-2:2013Entrance: EN 61131-2:2007Emitted interference: EN 61000-6-4:2007As-Interface: EN 62026-2:2013IMMUNITY: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -25 ... 85 °C (-13 ... 185 °F)Relative humidity: 85% non-condensingClimatic conditions: Indoor use onlyOperating height: ≤ 2000 m above sea levelShock and shock resistance: 30 g, 11 ms in 6 directions 3 shocksVibration resistance: 0.35 mm / 2 g 10 ... 1000 HzPollution level: 2Mechanical data:IP54 to EN 60529 standardConnection: As-Interface, AUX: Insulation displacement technology | Flat cable yellow/flat cable black | Inputs/outputs: M8 round plug connector according to EN 61076-2-104 | Inputs: LF004-GS1-A (4-pin, socket contacts, screw lock, A-coded) | mating plug: LM004-GX1 LM005-A or comparable | Outputs: LF005-GS1-B (5-pin, socket contacts, screw lock, B coded) | mating plug: GX1-B comparableWeight 310 gMounting: 2 fixing straps with hole Ø 8 mmCable length 1 m.Note: The flat cable guide is designed for 100 operating cycles
