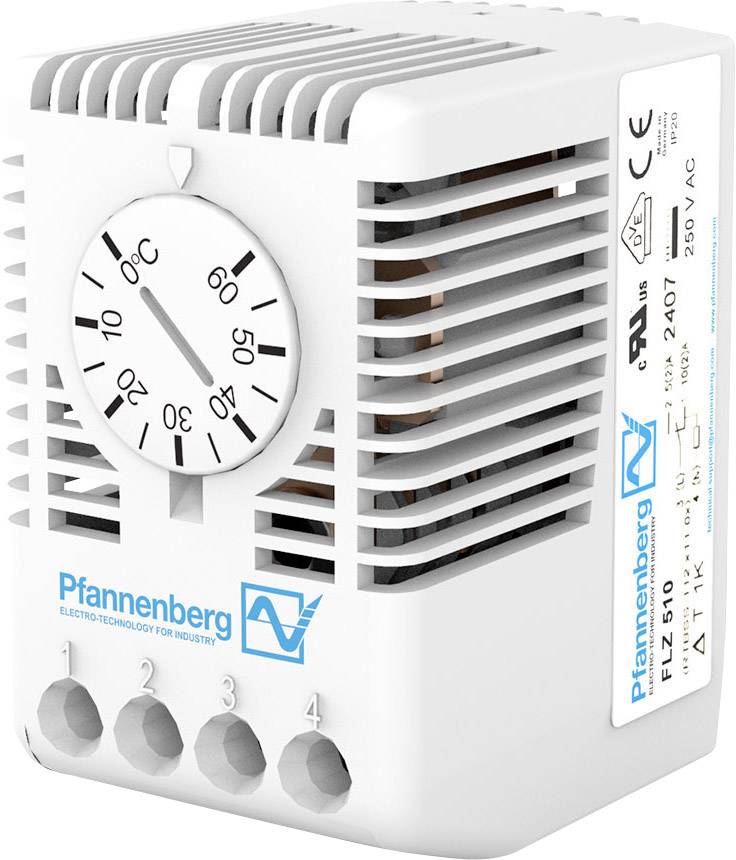

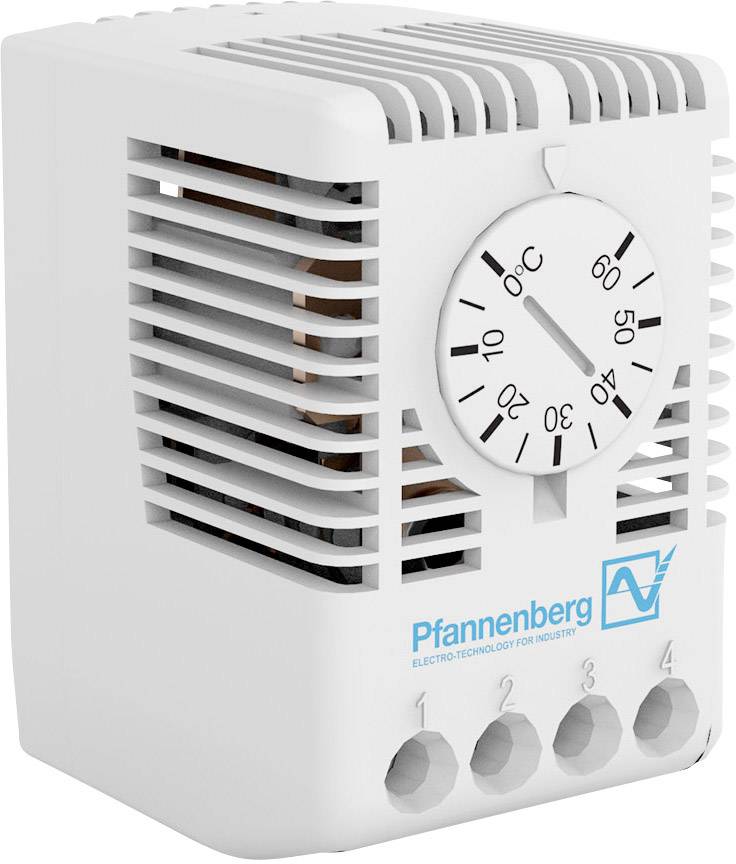

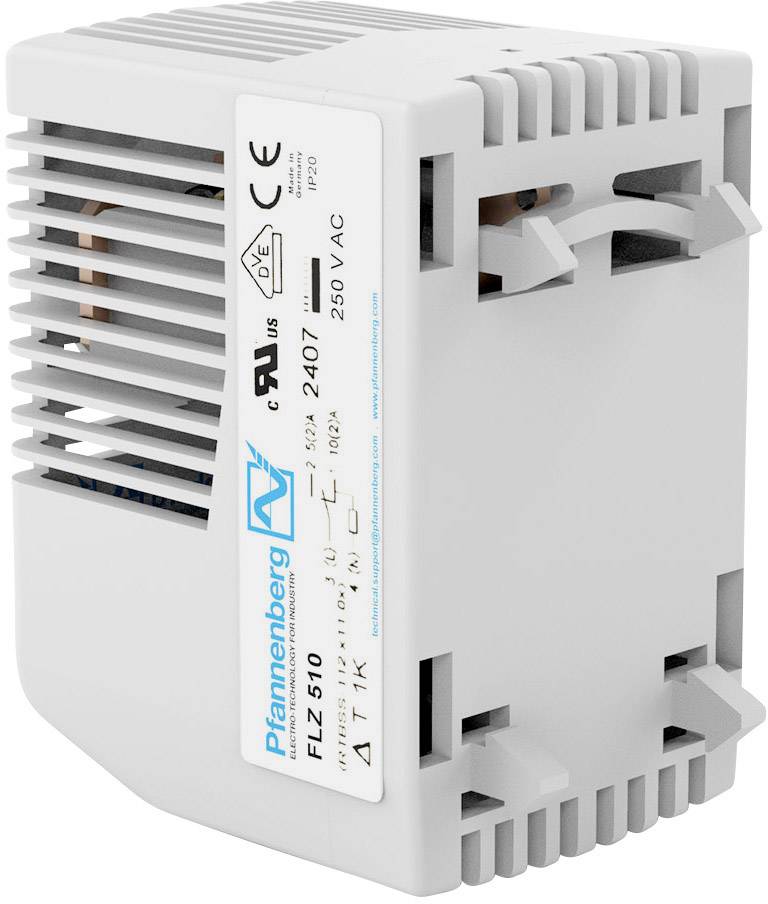

Pfannenberg Enclosure thermostat FLZ 510 THERM. 3K 0°..+60°C 250 V AC 1 change-over (L x W x H) 47.5 x 37 x 59.5 mm 1 pc
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Connection
Screw terminal
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
10 A
Datasheet (PDF)
Technical specifications
- Product type
Enclosure thermostat
- Type
FLZ 510 THERM. 3K 0°..+60°C
- Connection
Screw terminal
- Adjustment range (min.) (temperature)
0 °C
- Temperature adjustment range (max.)
+60 °C

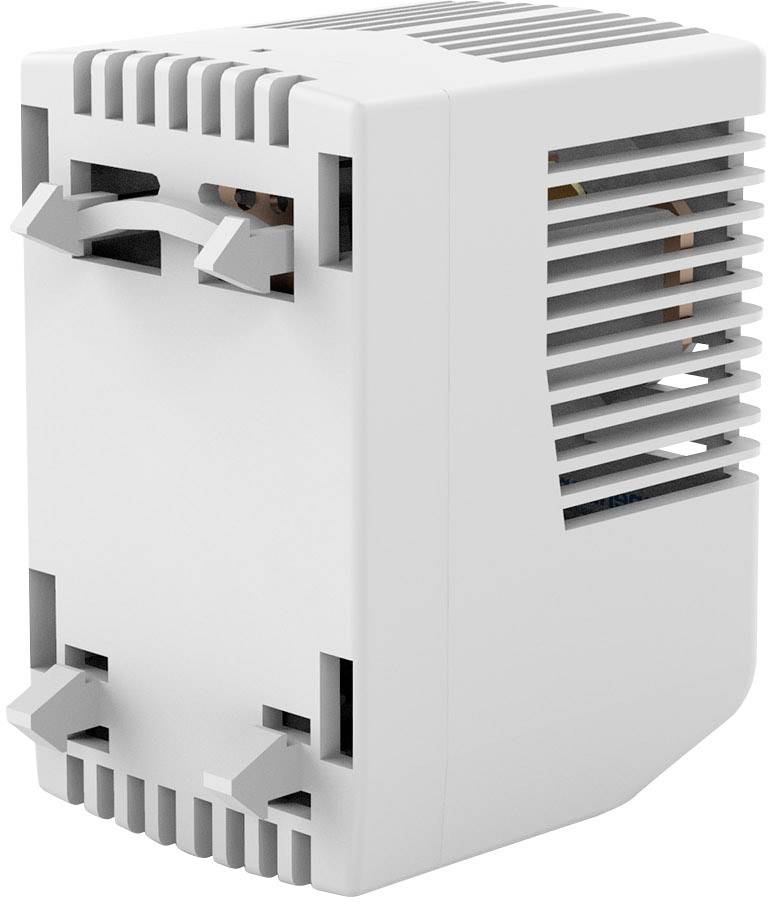

- Mounting type
35mm section rail mount
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
10 A
- Operating voltage
250 V AC
- Operating temperature (min.)
0 °C
- Operating temperature (max.)
+60 °C
- Length
47.5 mm
- Width
37 mm
- Height
59.5 mm
- Dim
(L x W x H) 47.5 x 37 x 59.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2181583 Pfannenberg Enclosure thermostat FLZ 510 THERM. 3K 0°..+60°C 250 V AC 1 change-over (L x W x H) 47.5 x 37 x 59.5 mm 1 pc
User & Safety Instructions
User & Safety Instructions 2181583 Pfannenberg Enclosure thermostat FLZ 510 THERM. 3K 0°..+60°C 250 V AC 1 change-over (L x W x H) 47.5 x 37 x 59.5 mm 1 pc
Description
The series of FLZ thermostats consists of three variants. They are designed as NC, NO and CO contacts. In combination with switch cabinet heaters, they are used for temperature control in the control cabinet. In combination with filter fans the additional energy, material and time saving and thus a better environmental balance. In sum, more safety is created in the production process, reduced energy consumption through demand-oriented use and an improvement in the efficiency of the controlled heaters and filter fans.
