Name: Pfannenberg Flasher LED QUADRO LED-HI-3G/3D HV YE 21108643009 Yellow Yellow Flash 230 V AC
Brand: Pfannenberg
SKU: 2586083
Availability: BackOrder

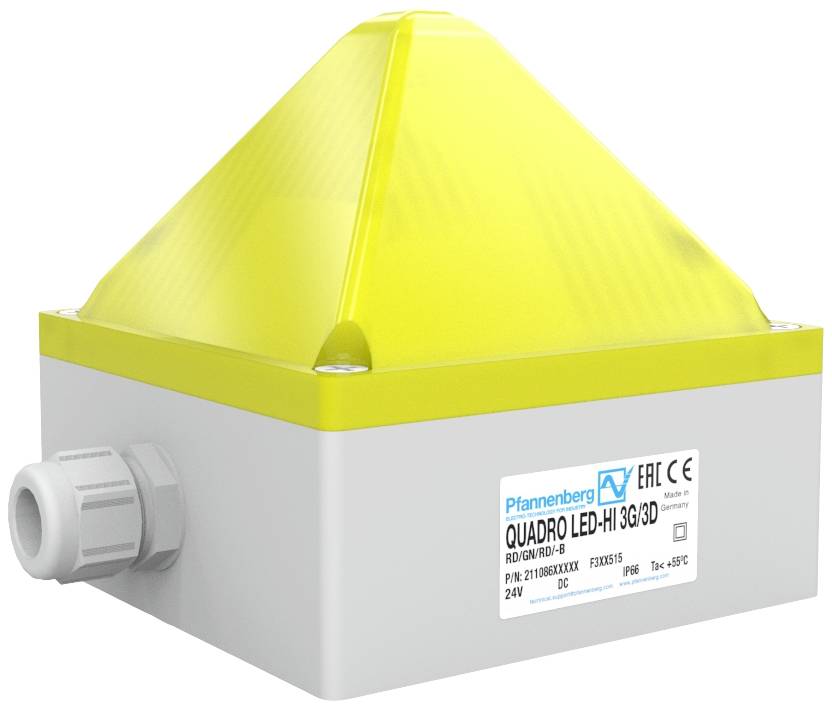

Yellow pyramid-shaped LED light on grey housing with cable connection and label; safety device with robust design.

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 645.00 / piece)

€ 645.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: OtherPower [W]: 10 W.For Ex zone gas: 2For Ex-Zone dust: 22

Product type: Flasher

Operating voltage: 230 V AC

Max. current consumption: 0.045 A

Colour: Yellow

Height: 130 mm

Features: LED

: IP67

Factory colour: Yellow

Case colour: Yellow

Lighted picture: Flash

Material: Plastic

Signal type: Flash

Type: QUADRO LED-HI-3G/3D HV YE

Light intensity: 75 cd

Calotte colour: Yellow

Max. temperature: 55 °C

Min. temperature: -20 °C

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2586083 Pfannenberg Flasher LED QUADRO LED-HI-3G/3D HV YE 21108643009 Yellow Yellow Flash 230 V AC

User & Safety Instructions

User & Safety Instructions 2586083 Pfannenberg Flasher LED QUADRO LED-HI-3G/3D HV YE 21108643009 Yellow Yellow Flash 230 V AC

Warranty Terms

Warranty Terms 2586083 Pfannenberg Flasher LED QUADRO LED-HI-3G/3D HV YE 21108643009 Yellow Yellow Flash 230 V AC

Description

Extremely bright multifunctional LED lamp with yellow hoodSuitable for use in zone 2 according to EN 60079-10-1 and zone 22 according to EN 60079-10-2 certified for categories 3G and 3D (gases and dust in hazardous areas)- Brightness: 75 cd (can be reduced)- Different signal types and flashing frequencies can be selected (inside): Continuous light, flashing light ( 1 / 2 Hz ), flashing light ( 0.1 / 0.5 / 0.75 / 1 / 2 Hz ) - Multi voltage power supply 90V - 253V DC- Switch-on current limitation integrated. Protection of the switching components such as the relay contacts.- Housing and hood are made of impact-resistant polycarbonate- Life of the bulb: > 50000h- Dimensions: LxWxH 130 x 130 x 130mm- Maximum visibility: 201M- Protection class: IP 66 / IP 67- Impact-resistant housing: IK 08- Operating temperature: -20C - +55C10-year guarantee

This text is machine translated.
