Name: Pfannenberg Flasher Xenon PY X-M-05 10-57V DC YE RAL3000 21550813000 Yellow Yellow Flash 60 V DC
Brand: Pfannenberg
SKU: 3335188
Availability: BackOrder

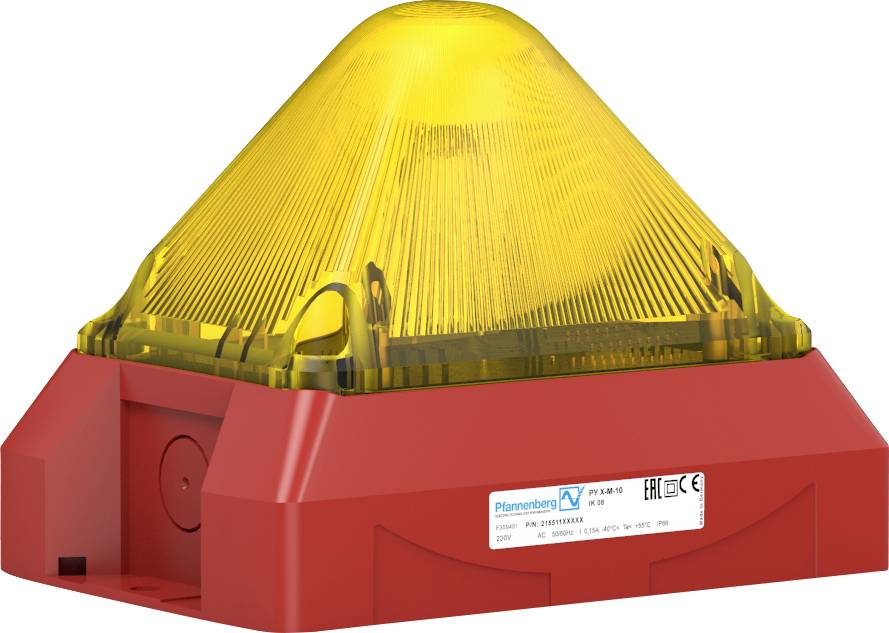

Yellow flash light on a red rectangular housing, suitable for industrial warning or safety applications, shows CE marking.

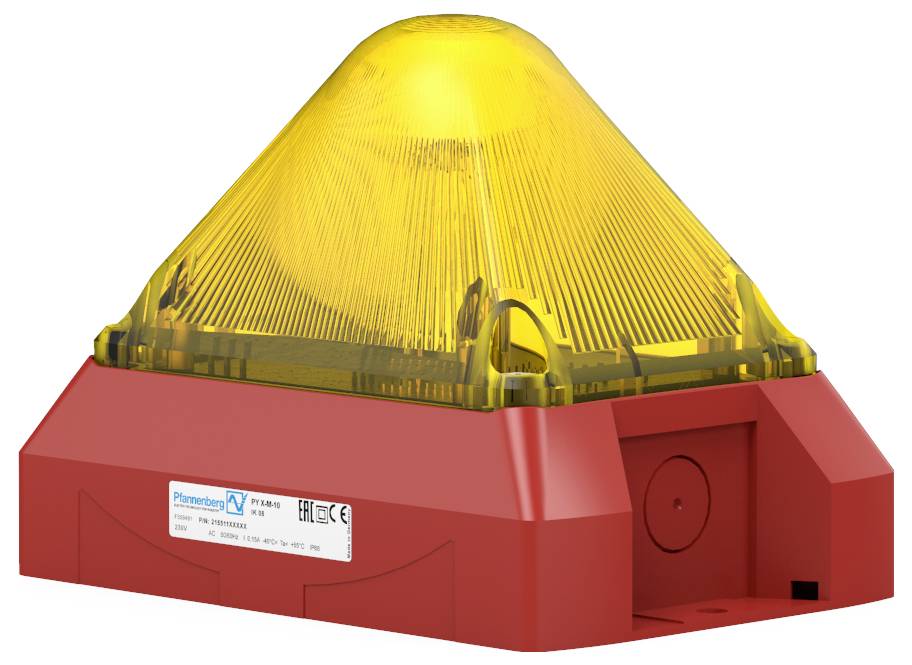

Red warning light with a yellow dome-shaped glass, emitting light.

Wiring diagram shows a connection with five terminals: N, L, L for alternating current (AC) and +, − for direct current (DC). Text: 'Operating voltage connection'.

1/3

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 265.00 / piece)

€ 265.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Flasher

Operating voltage: 60 V DC

Max. current consumption: 0.47 A

Colour: Yellow

Height: 124 mm

Features: Xenon

: IP66

Factory colour: Yellow

Case colour: Red

Lighted picture: Xenon flash

Material: Plastic

Signal type: Flash

Type: PY X-M-05 10-57V DC YE RAL3000

Calotte colour: Yellow

Max. temperature: 55 °C

Min. temperature: -40 °C

: Surface mounting

: 5 J

: DC

: Plastic

: Xenon

: Yellow

: FALSE

: 10-60 V

: IP66

: TRUE

: 4X

: FALSE

: 689 m³

: 0.13-0.47 A

: TRUE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3335188 Pfannenberg Flasher Xenon PY X-M-05 10-57V DC YE RAL3000 21550813000 Yellow Yellow Flash 60 V DC

User & Safety Instructions

User & Safety Instructions 3335188 Pfannenberg Flasher Xenon PY X-M-05 10-57V DC YE RAL3000 21550813000 Yellow Yellow Flash 60 V DC

Description

- Powerful flashing light with yellow hood and red base, in an elegant pyramid design
- Safer, incorrect mounting is practically impossible
- Economical, maximum signaling range through effective Xenon technology
- Can be mounted via external lugs or internal holes
- Four different flash frequencies can be selected via DIP switch
- Also suitable for control panel installation
- Electronic constant current control for 24 V AC/DC devices to avoid load fluctuations
- Optional with switch-on current reduction and undervoltage detection
- Flash lights can be synchronized with each other
- Operating temperature: -40C - +55C
- Lifetime: After 8 MIO. Flashes still 70% light emission
- Dimensions: L x W x H: 114 x 154 x 124mm
- Maximum visibility 173m
- Case colors: Grey (RAL 7035) |), red (RAL 3000) and white (RAL9003)
- 7 hood colors: Clear, white, yellow, orange, red green, blue

This text is machine translated.
