Name: Pfannenberg Flasher Xenon QUADRO F12-3G/3D 24 DC CL 21041801008 Blue, Clear, Orange, Red, Yellow, White, Green White, Or
Brand: Pfannenberg
SKU: 3335191
Availability: BackOrder

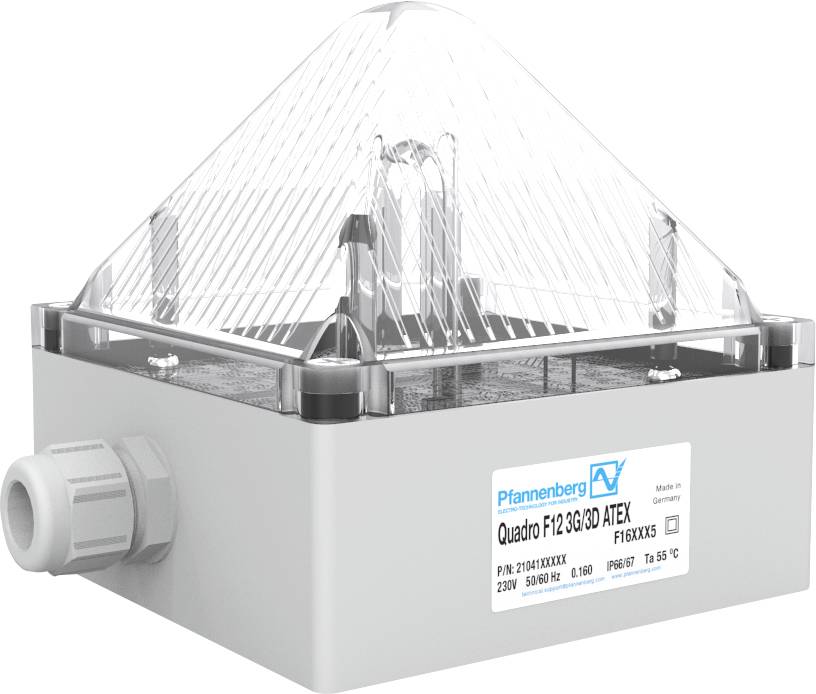

A pyramid-shaped signal device from Pfannenberg with the inscription 'Quadro F12 3G 3D ATEX' on the front.

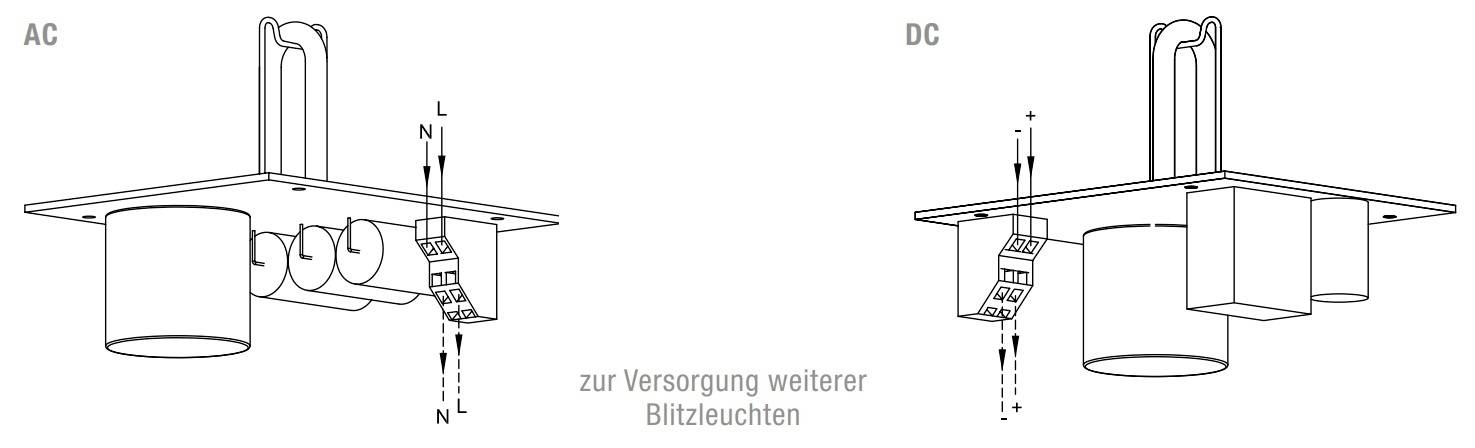

Diagram shows two lighting circuits: AC on the left and DC on the right. Both include terminals L, N, PE, for supplying additional flash lights.

1/2

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 715.00 / piece)

€ 715.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Flasher

Operating voltage: 24 V DC

Max. current consumption: 0.36 A

Colour: White
Orange
Blue
Yellow
Green
Clear
Red

Height: 130 mm

Features: Xenon

: IP66

Factory colour: Colourless

Lighted picture: Flash

Material: Plastic

Signal type: Flash

Type: QUADRO F12-3G/3D 24 DC CL

Flash capacity: 7.5 Ws

Calotte colour: Blue
Clear
Orange
Red
Yellow
White
Green

Max. temperature: 45 °C

Min. temperature: -20 °C

: 24 V

: Other

: 7.5 J

: DC

: 0.36 A

: Plastic

: Xenon

: Colourless

: IP66

: 2

: 22

: Other

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3335191 Pfannenberg Flasher Xenon QUADRO F12-3G/3D 24 DC CL 21041801008 Blue, Clear, Orange, Red, Yellow, White, Green White, Or

User & Safety Instructions

User & Safety Instructions 3335191 Pfannenberg Flasher Xenon QUADRO F12-3G/3D 24 DC CL 21041801008 Blue, Clear, Orange, Red, Yellow, White, Green White, Or

Description

- 7,5J flash lamp in very durable housing with clear hood
- Certified for use in hazardous zone 2 environment according to EN 60079-10 and Zone 22 according to EN 61241-10
- The requirements of the standards EN 60079-0, EN 60079-15, EN 61241-0, EN 61241-0 (2007) and EN 61241-1 (2005) are met. Can be used for gases of temperature classes T1, T2, T3 and T4 as well as for non-conductive dusts, taking into account that the surface temperature of the apparatus does not exceed + 105 C.
- Installation is done via concealed internal holes or via external lugs, fast, flexible and safe
- Outstanding mechanical strength with IP66, IP67 and IK08
- Whether in the open terrain, in the case of hail and high-pressure cleaning systems, the Quadro remains tight and signals securely
- The housing and hood are made of impact-resistant polycarbonate
- Lifetime: After 12 MIO. Flashes still 70% light emission
- Dimensions: LxBxH 130 x 130 x 130mm
- Operating temperature: -20C - +45C
- Maximum visibility: 229m
- 7 hood colors: Clear, white, yellow, orange, red, green, blue
- Inrush current is limited to <7A / 0.15ms (230V AC), <5A / 2ms (24V DC) for protection of the connection relay

This text is machine translated.
