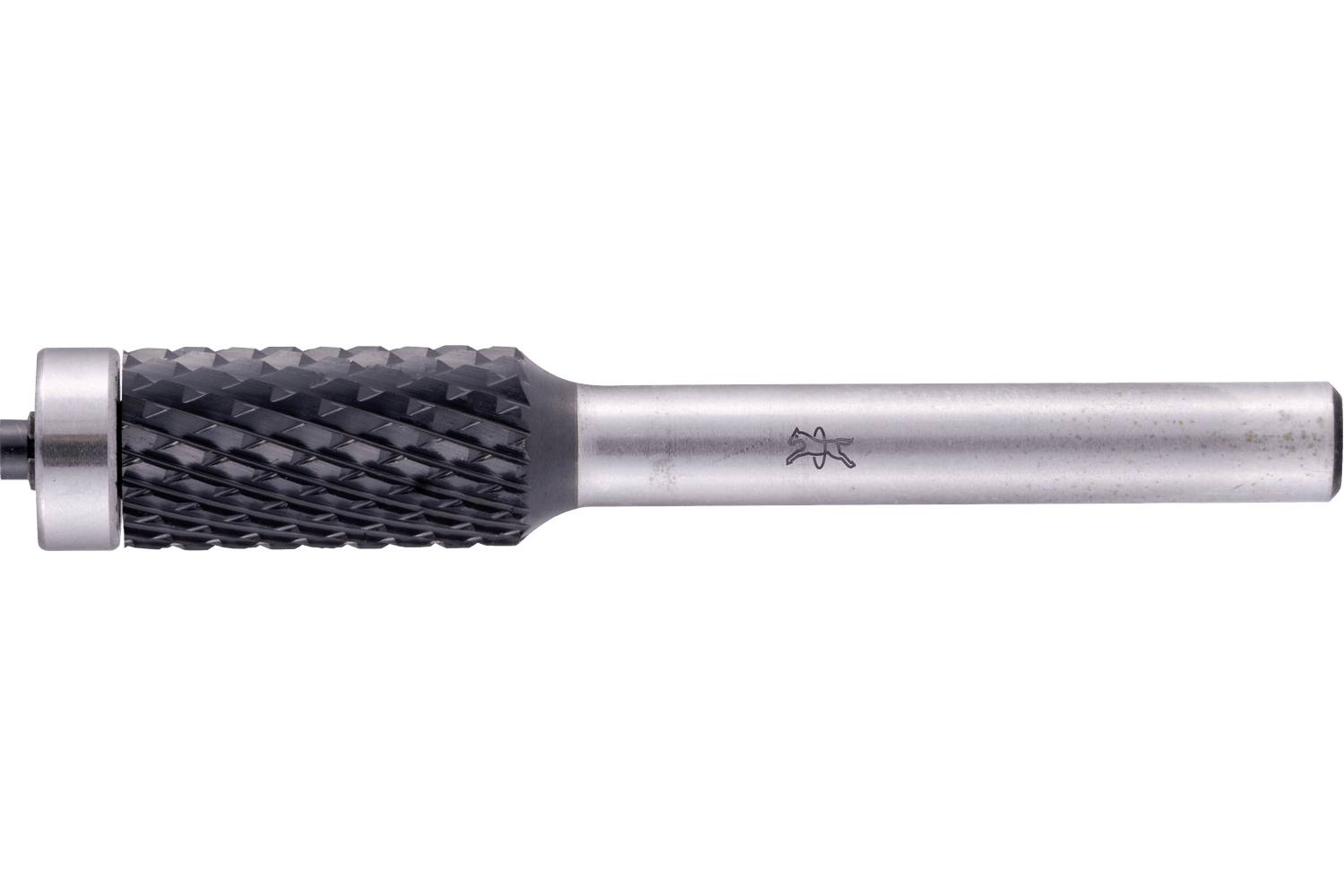

PFERD TOOLS 21460016 Burr Length 65 mm Product size (Ø) 10 mm Working length 19 mm Shank diameter 6 mm

Teeth 4 is particularly suitable for machining stainless steel (INOX), steel and high-temperature materials such as nickel base and cobalt base alloys. It is characterized by a high material removal with short chips and produces good surfaces. Cylindrical milling pin with ball bearing for deburring and cleaning in robot-guided insert.


Technical data
- RPM of, hard non-ferrous metals: 8000 RPM
- RPM of, high-temperature materials: 8000 RPM
- RPM to, hardened tempered steels above 1,200 N/mm²: 8000 RPM
- RPM to, hard non-ferrous metals: 11000 RPM
- RPM to, high-temperature materials: 14000 RPM
- RPM to stainless and acid-resistant steels: 11000 RPM
- Teeth: 4 HC-FEP
- ø Outer metric: 10 mm
- Ø Shaft metric: 6 mm
- Length, toothed: 19 mm
- Length, total: 65 mm

Benefits:
- The ball bearing ensures optimum contour guidance and protects the workpiece from damage during the trimming process.
- Good cutting performance thanks to optimum matching of hard metal, geometry and teeth.
- Good service life.
- Good surfaces.

Editable materials:
- Cast iron
- Black tempering casting (GTS, GJMB)
- Brass
- Bronze
- Non-alloy steel
- Cast iron
- Cast steel
- Cobalt base alloys
- Grey iron / nodular iron (GG/GJL, GGG/GJS)
- Non-ferrous metal hard
- Hardened, tempered steels over 1,200 N/mm² (< 38 HRC)
- Nickel base alloys (e.g. Inconell and Hasteloy)
- Stainless steel (INOX)
- Steel
- Steel, cast steel
- Steels up to 700 N/mm² (< 220 HB)
- Titanium
- Titanium alloys
- Tool steels
- White Templar Cast (GTW, GJMW)

Processing tasks:
- Chamfer
- Lower
- Deburr
- Elegalize
- Milling
- Surface treatment
- Weld seam processing
- Edge machining
- Edge machining (chamfering, rounding)

Drive types:
- Machine tool
- robots
- Machining centers
- Straight grinder

This text is machine translated.
