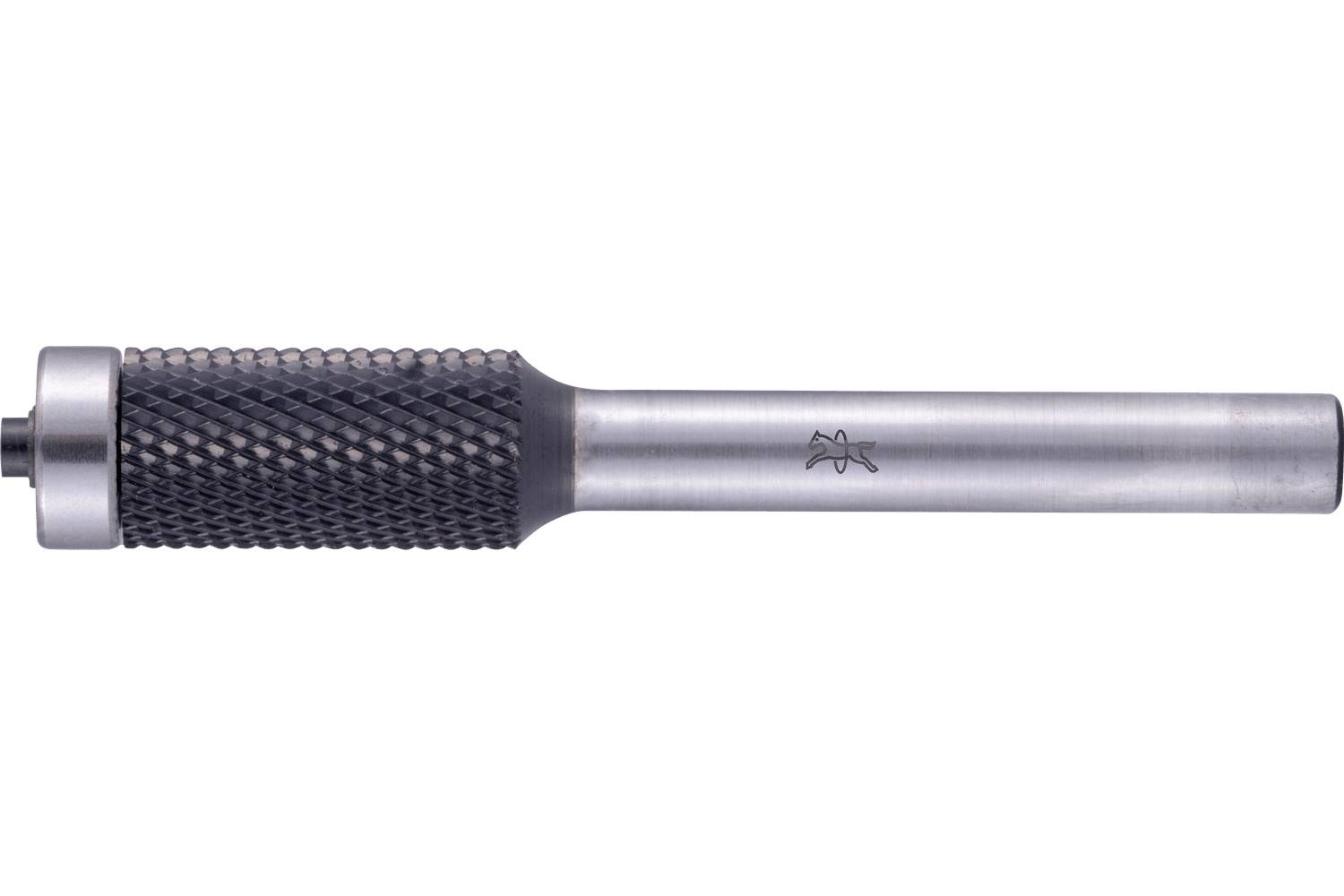

PFERD TOOLS 21460017 Burr Length 65 mm Product size (Ø) 10 mm Working length 19 mm Shank diameter 6 mm

Hard metal milling pins with teeth MICRO with high-quality HICOAT coating HC-FEP are specially designed for fine cutting and are used in areas where, among other things, grinding points are used. They offer a significantly higher cutting power compared to grinding pins and convince by a high milled surface quality. At the same time they work with low vibration and with little noise. They maintain their geometry for the entire service life. They are ideal for processing tasks in manual and machine use. Cylindrical milling pin with ball bearing for deburring and cleaning in robot-guided insert.


Technical data
- RPM of, gray cast iron, white cast iron: 19000 RPM
- RPM of, hardened tempered steels over 1,200 N/mm²: 14000 RPM
- RPM of, hard non-ferrous metals: 14000 RPM
- RPM of, high-temperature materials: 14000 RPM
- RPM of stainless and acid-resistant steels: 14000 RPM
- RPM of, steels up to 1,200 N/mm²: 19000 RPM
- RPM to, gray cast iron, white cast iron: 24000 RPM
- RPM to, hardened tempered steels above 1,200 N/mm²: 19000 RPM
- RPM to, hard non-ferrous metals: 19000 RPM
- RPM to, high-temperature materials: 19000 RPM
- RPM to stainless and acid-resistant steels: 19000 RPM
- RPM bis, steels up to 1,200 N/mm²: 24000 RPM
- TEETH: MICRO HC-FEP
- ø Outer metric: 10 mm
- Ø Shaft metric: 6 mm
- Length, toothed: 19 mm
- Length, total: 65 mm

Benefits:
- The ball bearing ensures optimum contour guidance and protects the workpiece from damage during the trimming process.
- High-quality HICOAT coating for high hardness and wear resistance.
- No geometry change due to wear and tear compared to grinding pins.
- Processing of almost all materials up to 68 HRC.

Application recommendations:
- Particularly suitable for fine machining, for very fine cleaning work, corrections in tool and mold making or for sharpening cutting tools.

Editable materials:
- Cast iron
- Black tempering casting (GTS, GJMB)
- Brass
- Bronze
- Non-alloy steel
- Cast iron
- Cast steel
- Cobalt base alloys
- Grey iron / nodular iron (GG/GJL, GGG/GJS)
- Non-ferrous metal hard
- Hardened, tempered steels over 1,200 N/mm² (< 38 HRC)
- Nickel base alloys (e.g. Inconell and Hasteloy)
- Stainless steel (INOX)
- Steel
- Steel, cast steel
- Steels up to 1,200 N/mm² (< 38 HRC)
- Steels above 700 N/mm² (> 220 HB)
- Steels up to 700 N/mm² (< 220 HB)
- Titanium
- Titanium alloys
- Tool steels
- White Templar Cast (GTW, GJMW)

Processing tasks:
- Chamfer
- Lower
- Deburr
- Elegalize
- Milling
- Surface treatment
- Weld seam processing
- Edge machining
- Edge machining (chamfering, rounding)

Drive types:
- Machine tool
- robots
- Machining centers
- Straight grinder

This text is machine translated.
