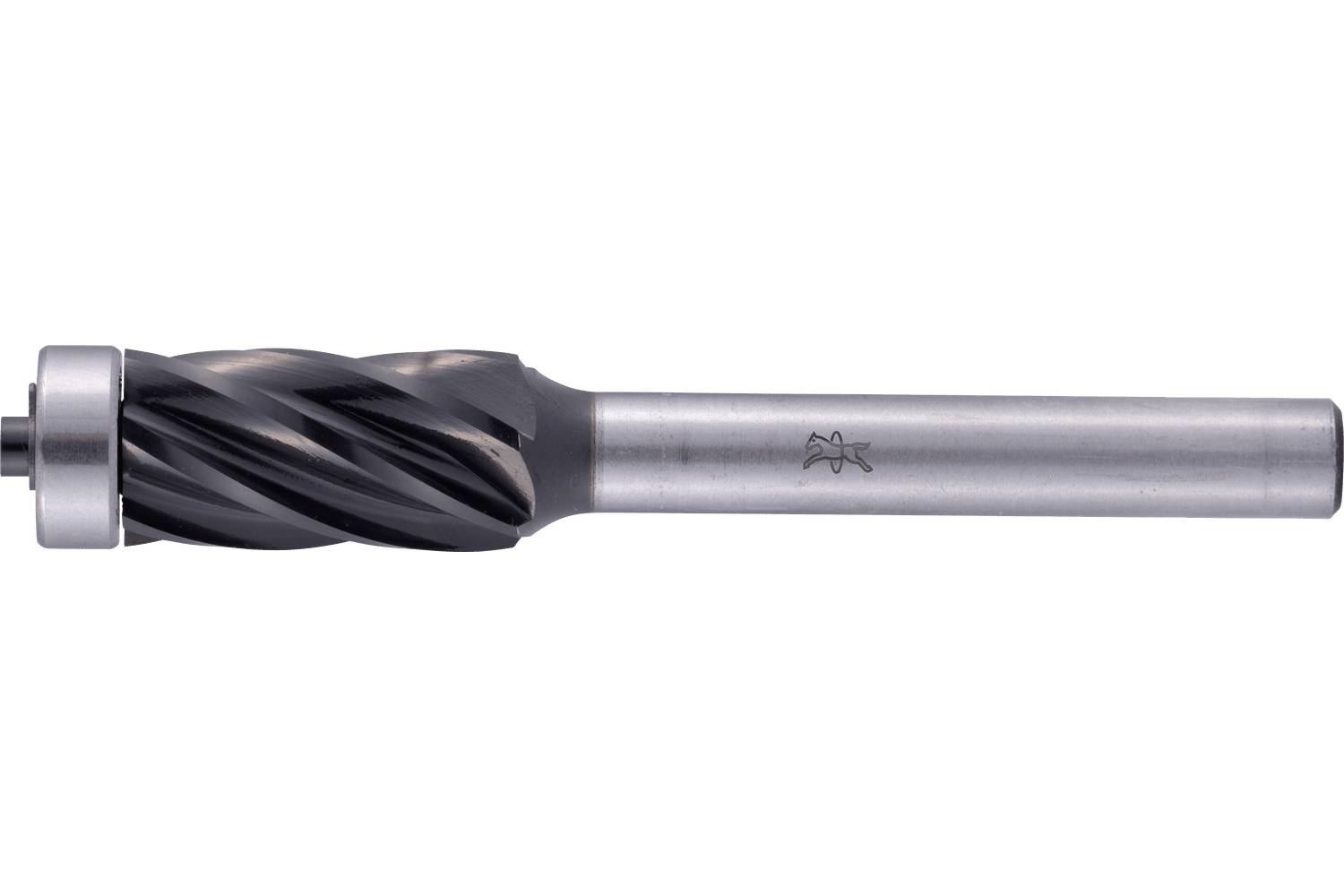

PFERD TOOLS 21460018 Burr Length 65 mm Product size (Ø) 10 mm Working length 19 mm Shank diameter 6 mm

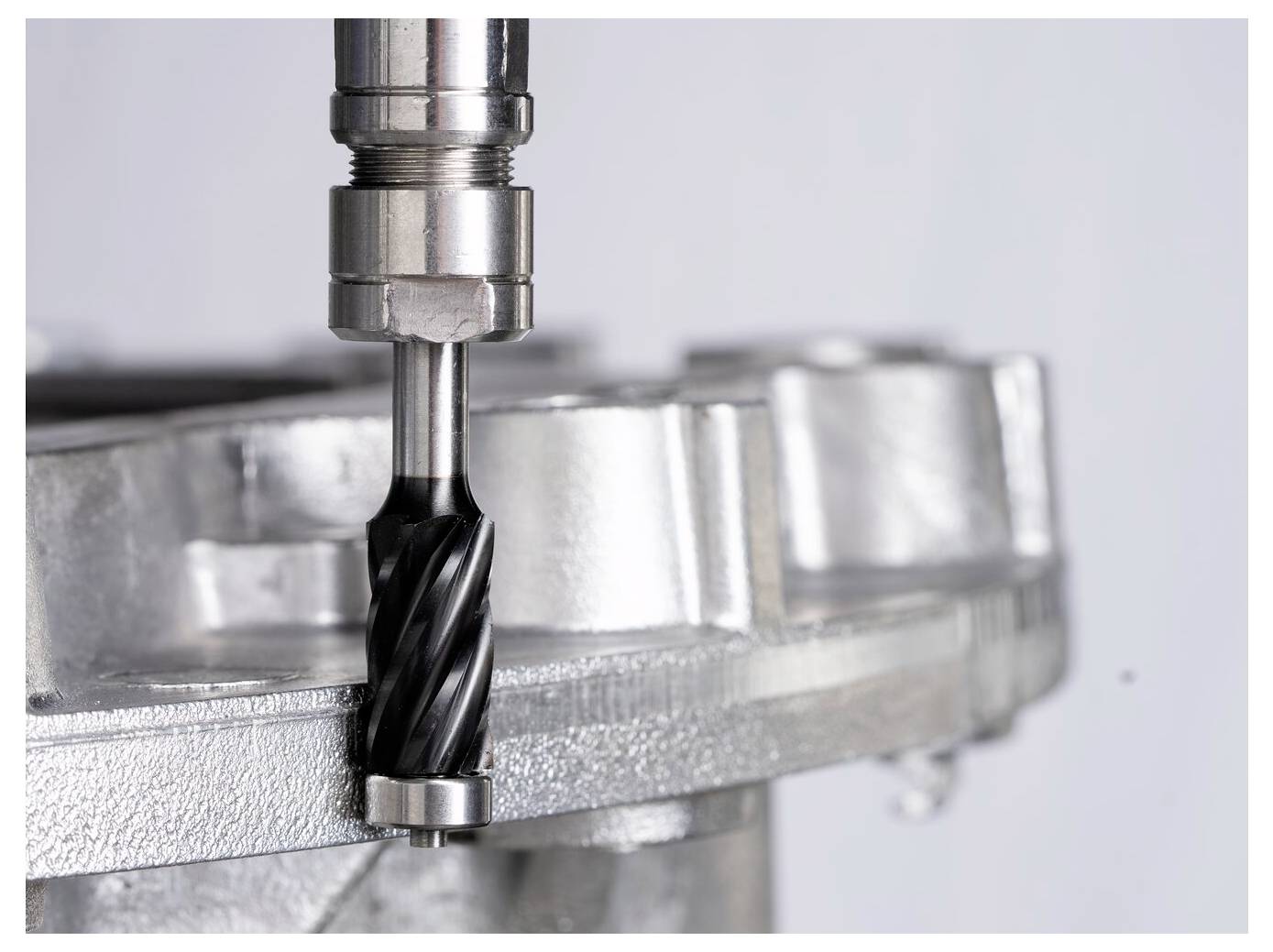

The use of milling pins with the HICOAT coating HC-NFE from PFERD TOOLS prevents chips from sticking when machining soft aluminum alloys. This increases the tool life and improves the surface quality of the workpiece. Cylindrical milling pin with ball bearing for deburring and cleaning in robot-guided insert.


Technical data
- RPM of, hard non-ferrous metals: 19000 RPM
- RPM of soft non-ferrous metals: 19000 RPM
- RPM of, thermoplastic plastics, fiber-reinforced plastics (GRP/CFK): 19000 RPM
- RPM to, hard non-ferrous metals: 41000 RPM
- RPM to stainless and acid-resistant steels: 5000 RPM
- RPM to, soft non-ferrous metals: 41000 RPM
- RPM to, thermopl. Synthetic, fiber-optic. PLASTICS (GRP/CFK) 41000 RPM
- TEETH: ALU HC-NFE
- ø Outer metric: 10 mm
- Ø Shaft metric: 6 mm
- Length, toothed: 19 mm
- Length, total: 65 mm

Benefits:
- The ball bearing ensures optimum contour guidance and protects the workpiece from damage during the trimming process.
- Preferably used for long-spanning and lubricating non-ferrous metals.
- Maximum machining power.
- Effective chip removal through improved sliding properties.
- Low thermal load.
- Increased service life.

Editable materials:
- Aluminium
- Brass
- Bronze
- Copper
- Fibre-reinforced thermoplastics (GRP, CFK)
- Fiber reinforced thermoset (GRP, CFK) fiber content ≤ 40%
- Fiber reinforced thermoset (GRP, CFK) fiber content > 40 %
- Hard aluminum alloys
- Non-ferrous metal hard
- Plastics
- Soft aluminum alloys
- Non-ferrous metal soft
- Thermoplastic
- Tough aluminum alloys
- Zinc

Processing tasks:
- Chamfer
- Lower
- Deburr
- Elegalize
- Milling
- Surface treatment
- Weld seam processing
- Edge machining
- Edge machining (chamfering, rounding)

Drive types:
- Machine tool
- robots
- Machining centers
- Straight grinder
