PFERD TOOLS 23001010 Burr Length 57 mm
EAN:
Part number:
Item no:
Highlights & Details

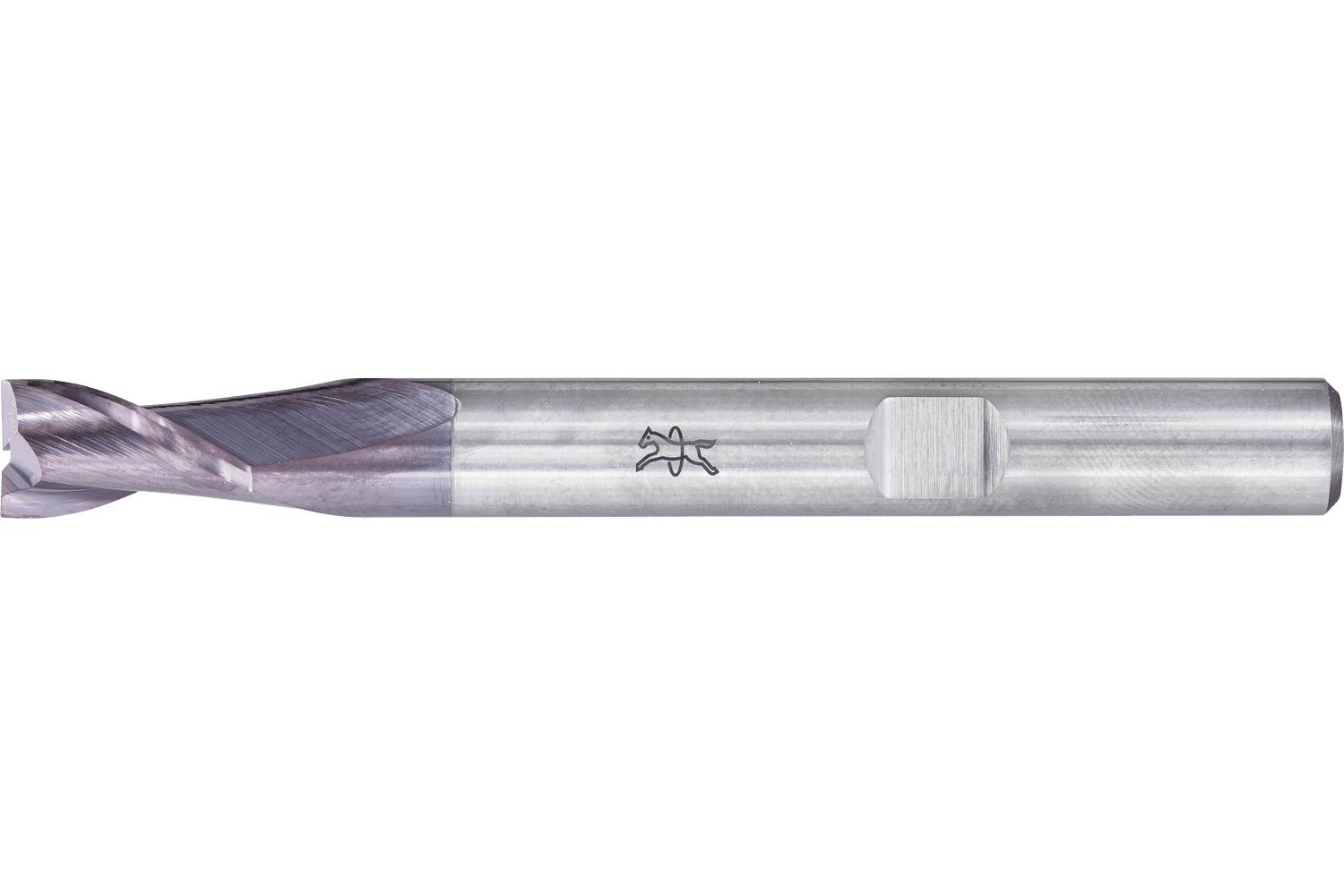

PFERD TOOLS Robotics VHM cutters Ø6mm, 2 cutting edges, 2xD, radius 0.4mm, DLC coated, Shaft HA, Performance Aluminium
- - Body shape: HA (DIN6535)
- - Design: 90° with radius
- - Corner design: Corner design radius
- - Spiral angle: 25°
- - Coating: DLC
- - Cutting material: DLC40
- - Internal coolant supply: No.
- - Feed direction: X,y,z
- - Cutting ø DC: 6 mm
- - Shaft ø DCON: 6 mm
- - Maximum cutting depth APMX: 13 mm
- - Total length LF: 57 mm
- - Corner radius RE: 0.4 mm
- - Number of teeth ZEFP: 2 pieces
- - Standard: Works standard
- - Tolerance shaft diameter TCCCON: H6
- - Tolerance of cutting edge diameter TCDC: H10
Technical specifications
- Product type
Burr
- Length
57 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3772666 PFERD TOOLS 23001010 Burr Length 57 mm
Description
Due to their material-specific tool geometry, the solid carbide cutters Performance Aluminium are optimally matched to the machining of aluminum alloys, non-ferrous metals and plastics. DLC coated cutters for robot-guided machining of aluminum alloys, non-ferrous metals and plastics. Smooth cylinder shaft HA according to DIN 6535.
Technical data
- Body shape: HA (DIN6535)
- Design: 90° with radius
- Corner design: Corner design radius
- Spiral angle: 25°
- Coating: DLC
- Cutting material: DLC40
- Internal coolant supply: No.
- Feed direction: X,y,z
- Cutting ø DC: 6 mm
- Shaft ø DCON: 6 mm
- Maximum cutting depth APMX: 13 mm
- Total length LF: 57 mm
- Corner radius RE: 0.4 mm
- Number of teeth ZEFP: 2 pieces
- Standard: Works standard
- Tolerance shaft diameter TCCCON: H6
- Tolerance of cutting edge diameter TCDC: H10
Benefits:
- Optimal chip control thanks to material-optimized geometry.
- Large polished chip areas for optimum chip control.
- Increased process reliability at high cutting speeds.
Application recommendations:
- Observe the cutting data recommendations.
- Make sure that the workpiece and tool clamping is stable to achieve the best performance.
Editable materials:
- Aluminium
- Brass
- Bronze
- Copper
- Duroplast
- Hard aluminum alloys
- Non-ferrous metal hard
- Plastics
- Soft aluminum alloys
- Non-ferrous metal soft
- Thermoplastic
- Tough aluminum alloys
This text is machine translated.
Technical data
- Body shape: HA (DIN6535)
- Design: 90° with radius
- Corner design: Corner design radius
- Spiral angle: 25°
- Coating: DLC
- Cutting material: DLC40
- Internal coolant supply: No.
- Feed direction: X,y,z
- Cutting ø DC: 6 mm
- Shaft ø DCON: 6 mm
- Maximum cutting depth APMX: 13 mm
- Total length LF: 57 mm
- Corner radius RE: 0.4 mm
- Number of teeth ZEFP: 2 pieces
- Standard: Works standard
- Tolerance shaft diameter TCCCON: H6
- Tolerance of cutting edge diameter TCDC: H10
Benefits:
- Optimal chip control thanks to material-optimized geometry.
- Large polished chip areas for optimum chip control.
- Increased process reliability at high cutting speeds.
Application recommendations:
- Observe the cutting data recommendations.
- Make sure that the workpiece and tool clamping is stable to achieve the best performance.
Editable materials:
- Aluminium
- Brass
- Bronze
- Copper
- Duroplast
- Hard aluminum alloys
- Non-ferrous metal hard
- Plastics
- Soft aluminum alloys
- Non-ferrous metal soft
- Thermoplastic
- Tough aluminum alloys
This text is machine translated.
