PFERD TOOLS 39008747 Bench grinder disc Diameter 250 mm Grit size=60 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- - Max. RPM 2400 RPM
- - Metric width: 40 mm
- - Ø hole: 51 mm
- - ø Outer metric: 250 mm
- - Grain size: 60
- Product type
Bench grinder disc
- (Ø)
250 mm
- Bore Ø
51 mm
- Grit size
60
- Content
1 pc(s)
- Rotational speed (max.)
2400 U/min
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3772673 PFERD TOOLS 39008747 Bench grinder disc Diameter 250 mm Grit size=60 1 pc(s)
Description

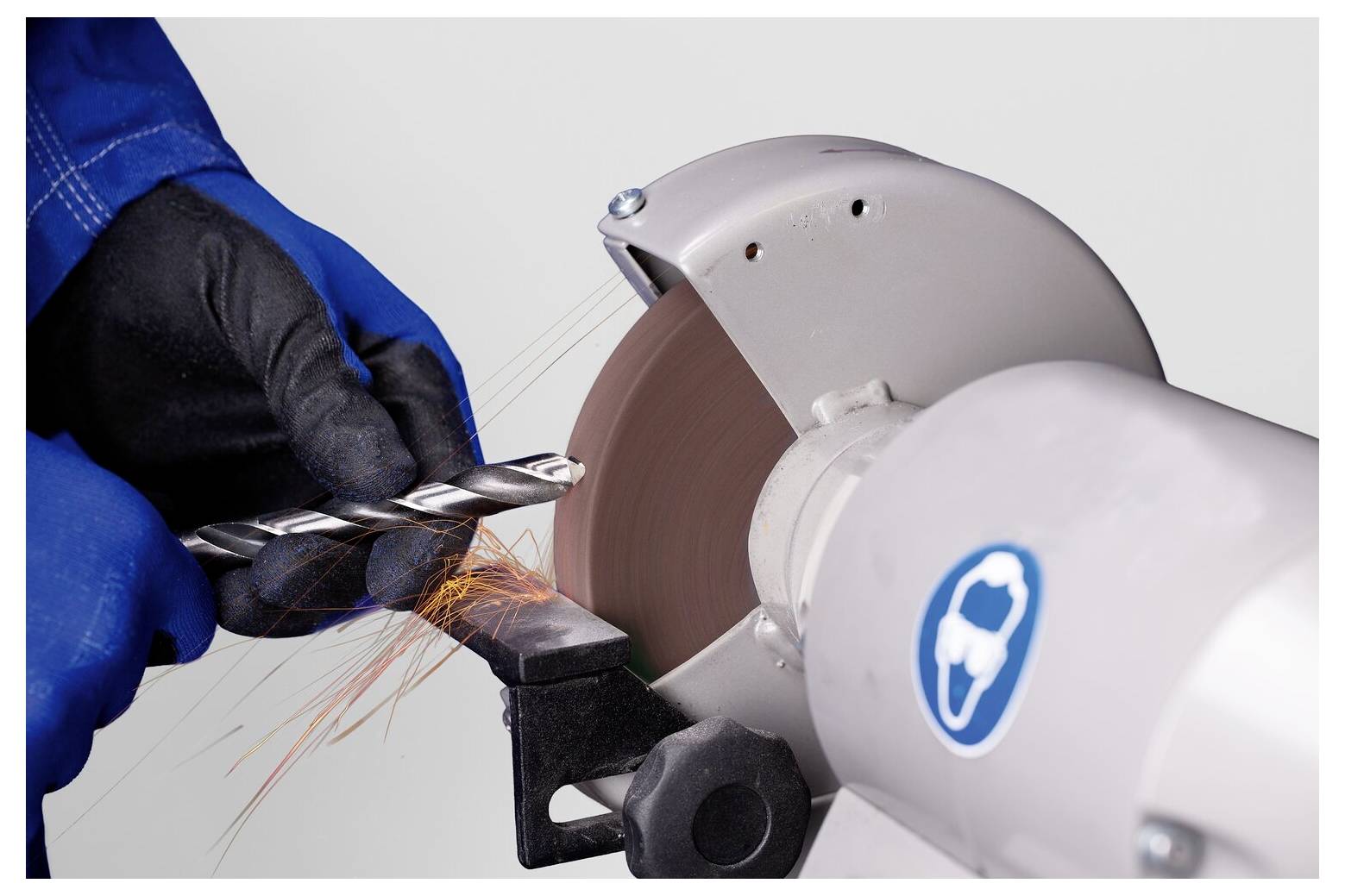

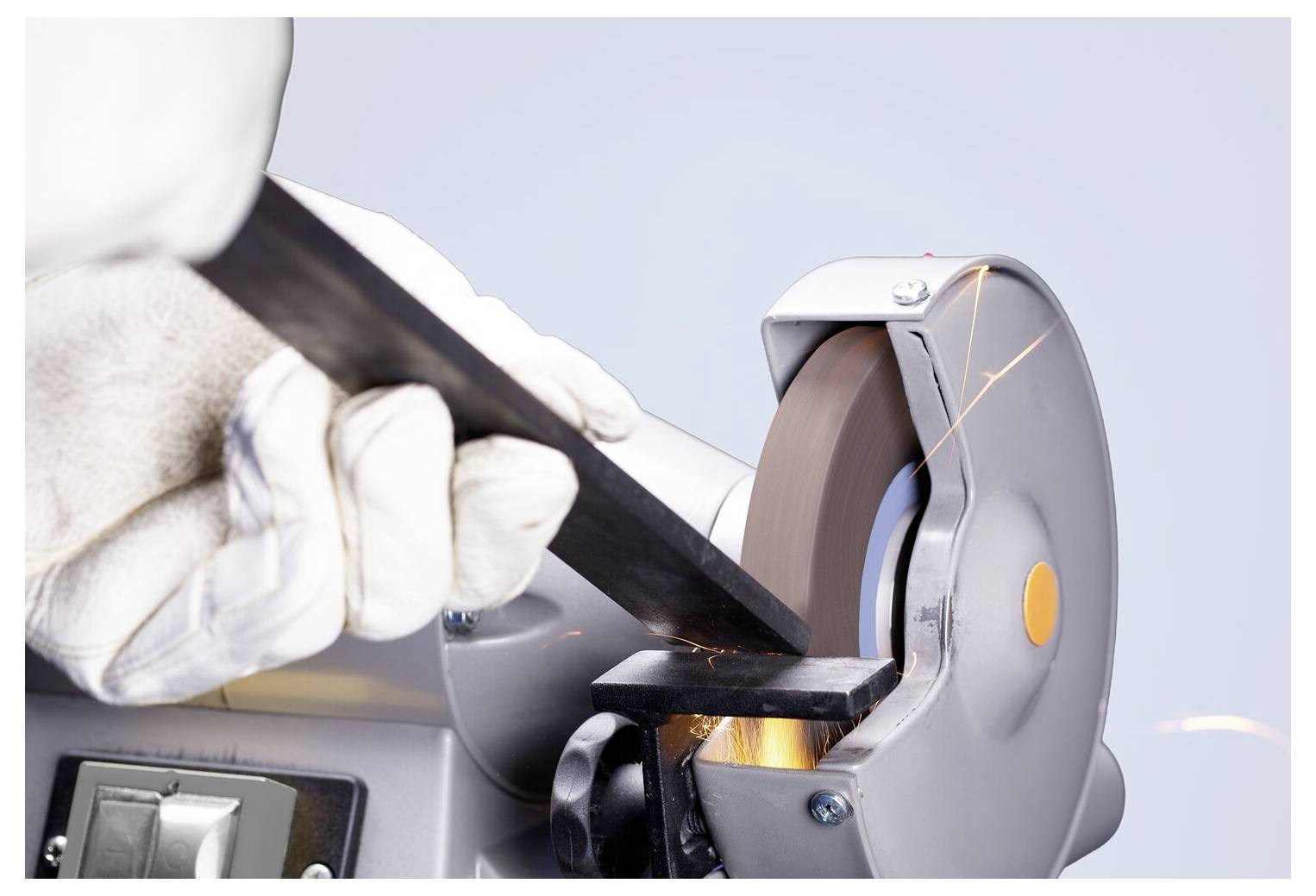

PFERD TOOL grinding block wheels are designed for use with the conventional grinding blocks on the market. The UNIVERSAL design is Ideal for the universal application in the workshop.
Benefits:
- High service life.
- High dimensional stability.
- High grinding performance.
- Integrated reducing sleeves for mounting on almost every grinding block spindle.
Application recommendations:
- A regular removal of the disc releases sharp grain and keeps a straight sanding surface.
- Adjust the workpiece support continuously to the grinding disc diameter (gap width max. 3 mm).
Editable materials:
- Cast iron
- Stainless steel (INOX)
- Steel
Processing tasks:
- Deburr
- Sharpen
- Edge machining (chamfering, rounding)
Drive types:
- Grinding block
Safety Instructions:
- The maximum permissible peripheral speed is 35 m/s.
- For safety reasons, the specified maximum permissible speed must never be exceeded.
- Before mounting, the grinding body must be subjected to a sound sample to ensure that it does not have any cracks (undamaged abrasives give a clear sound).
This text is machine translated.
