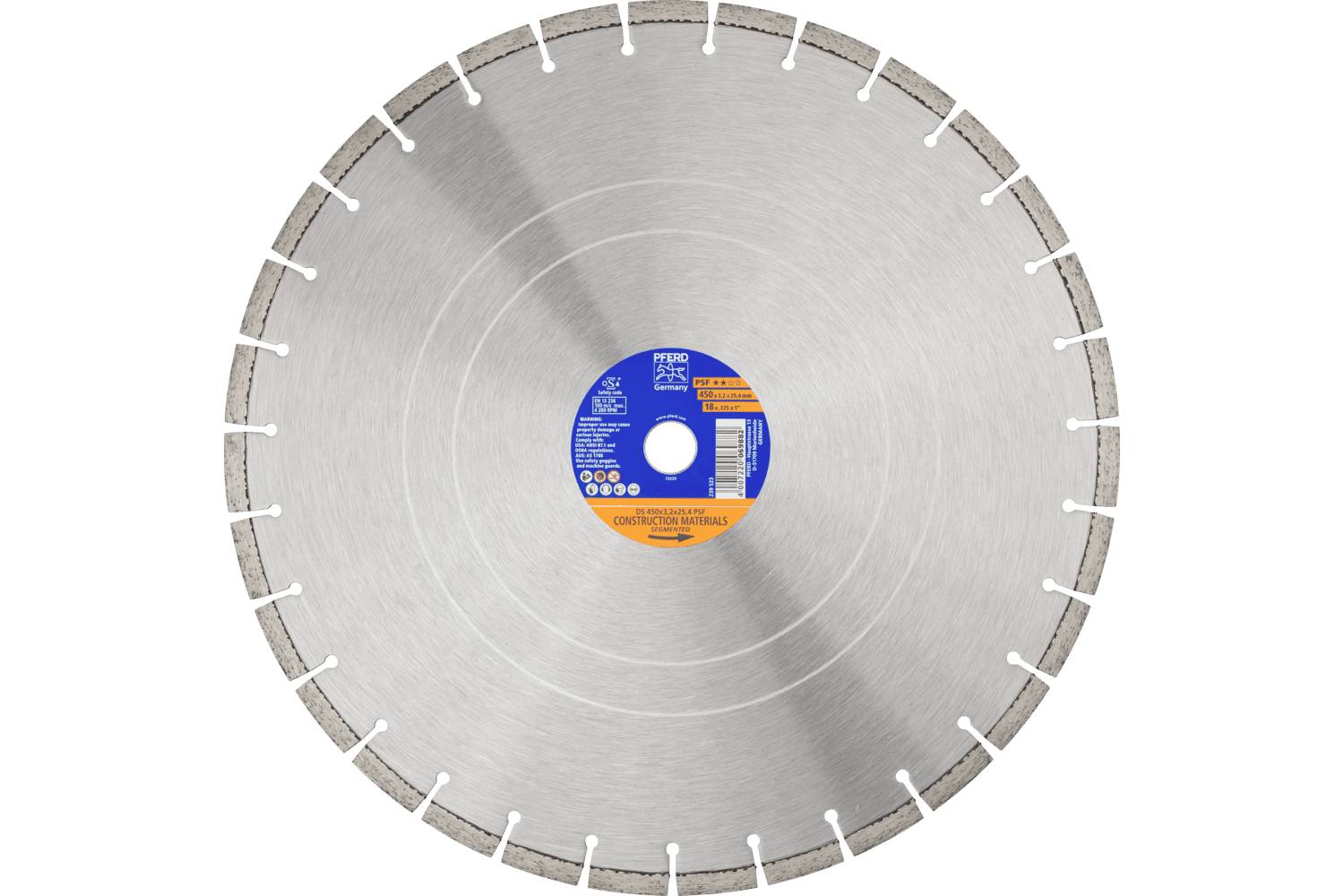

PFERD TOOLS 68300055 DS 450X3,2X25,4 START Diamond cutting disc Diameter 450 mm Bore diameter 25.4 mm Brick, Reinforced
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS diamond cutting wheel DS 450x3.2x25.4 mm PSF for quick separation of stone and concrete
- - Max. RPM 4200 RPM
- - Form: 1A1R / DS
- - Design: No specification
- - Metric width: 3.2 mm
- - Ø hole: 25.4 mm
- - Abrasive: Diamond
- - ø Outer metric: 450 mm
- - Height, lining: 10 mm
Technical specifications
- Product type
Diamond cutting disc
- Thickness
3.2 mm
- Material suitability
Brick
Reinforced concrete
Stone
Concrete
- Bore Ø
25.4 mm
- Dim
(Ø) 450 mm
- (Ø)
450 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3772940 PFERD TOOLS 68300055 DS 450X3,2X25,4 START Diamond cutting disc Diameter 450 mm Bore diameter 25.4 mm Brick, Reinforced
Description
PFERD TOOL diamond cutting discs are manufactured in compliance with the highest quality and safety standards. They guarantee optimum separation results and enable economical processing of different materials, e.g. concrete, wash concrete, clinker, hard rock, granite or other abrasive construction materials. The product range offers the optimum tool for every machining task. Universal tool with segmented edge for aggressive, fast cutting with high cutting power and good service life.
Benefits:
- High-quality diamond qualities.
- Good cutting and short separation times.
- Good cutting comfort and high efficiency.
Application recommendations:
- If possible, wet grinding should always be preferred to dry grinding. This reduces tool wear, thermal damage and dust exposure.
- Disconnect with little pressure to avoid tool overheating.
- Suitable for angle grinders of all power classes.
- The maximum working speed is 100 m/s.
Editable materials:
- Brick
- Reinforced concrete
- Soft stones
- Concrete
Processing tasks:
- Disconnect
Drive types:
- Joint separator
- Petrol separator
- Machining centers
- Table saw
Ordering Information:
- Customer-specific tool solutions are available on request.
This text is machine translated.
