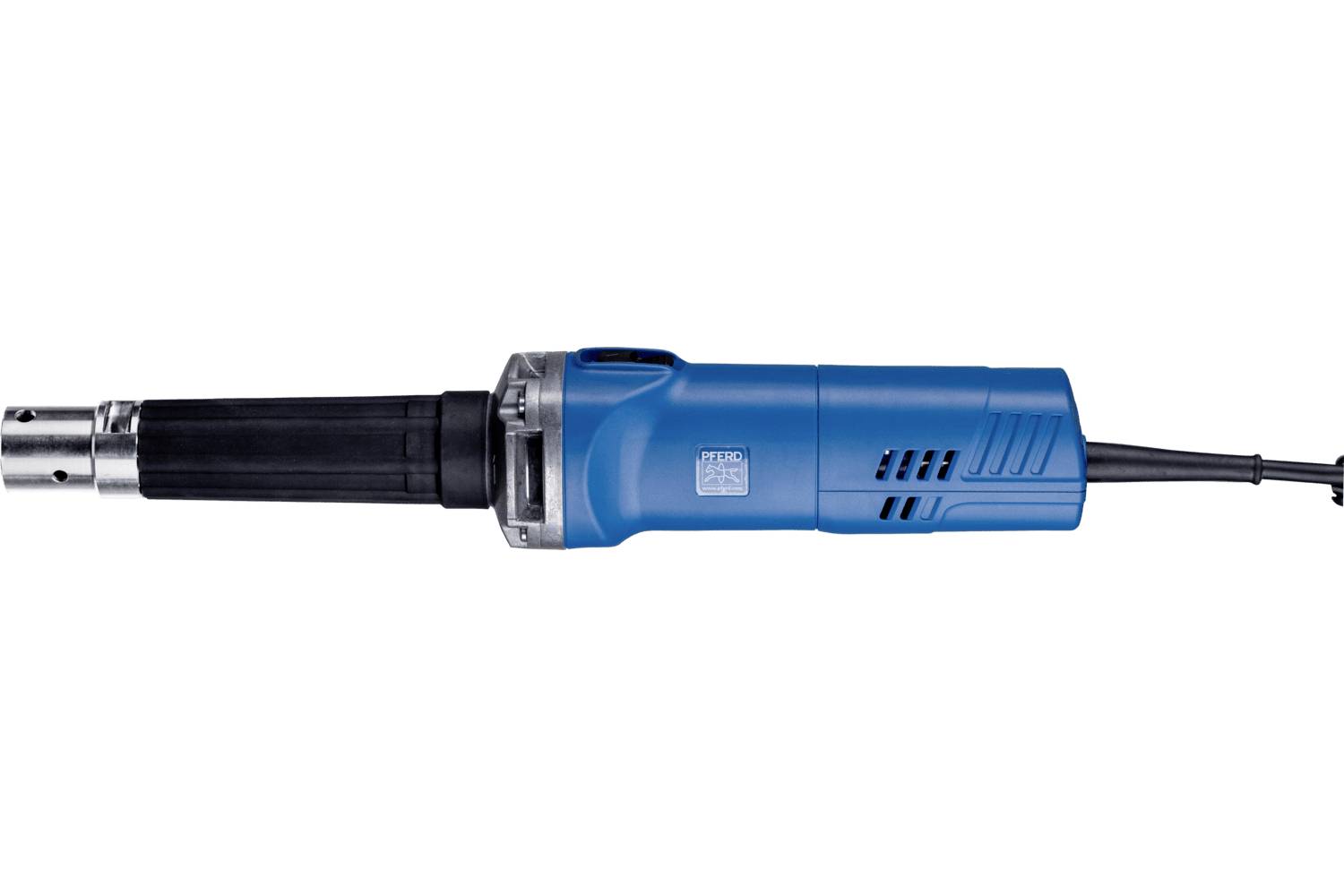

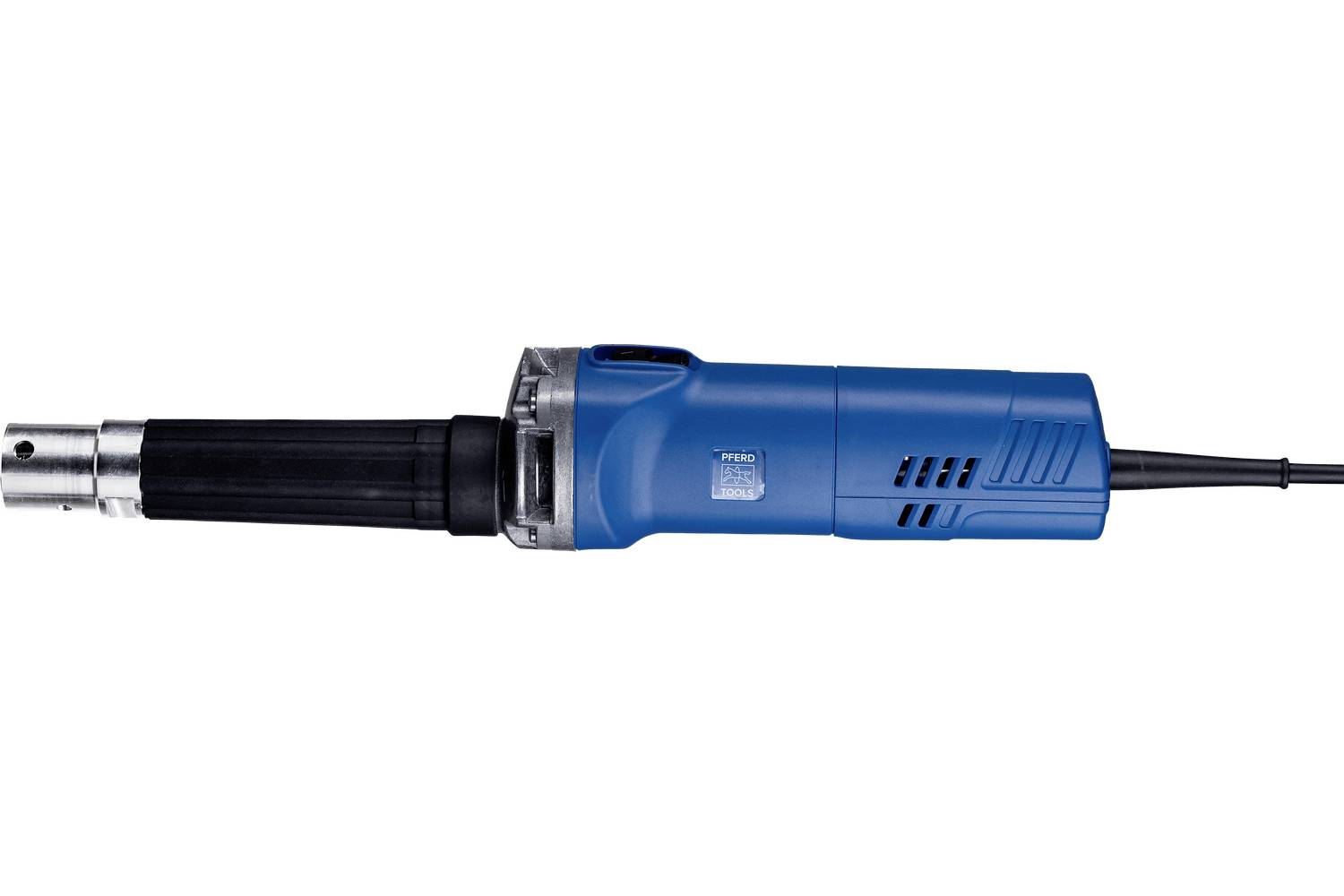

PFERD TOOLS Electric motor EMER 8/90 230 Volt 9,000 RPM/710 Watt PFERD TOOLS 83700340
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS Electric motor EMER 8/90 230 Volt 9,000 RPM/710 Watt
- Power consumption 710 watt
- Power output 410 Watts
- Speed range, from: 2500 RPM
- Speed range, to: 9000 RPM
- Connection Coupling [DIN]: 10
Technical specifications
- - Power consumption: 710 watts
- - Power output: 410 watts
- - Speed range, from: 2500 RPM
- - Speed range, up to: 9000 RPM
- - Voltage, of: 230 volts
- - Metric width: 77 mm
- - Connection coupling [DIN]: 10
- - Length metric: 430 mm
- - Net weight: 2.03 kg
- - Connector type: Contour plug
- - Plug: With
- - Height: 77 mm
- Product type
Electric motor
- Content
1 pc(s)
- Width
77 mm
- Length
430 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773055 PFERD TOOLS Electric motor EMER 8/90 230 Volt 9,000 RPM/710 Watt PFERD TOOLS 83700340
Description
Electric drives are "universal all-rounder". They offer high performance in terms of size and weight. They are particularly suitable for use with grinding tools that require constant speed. Electric drives can be used almost anywhere. They are used in many industries in different processes. The variable electronic speed control permits the use of various tools on a single tool drive. The electric motor has a DIN 10 connection. Drive with 230 V. 4 m mains cable with mains plug, 2 clamping wrench (STS D 4 mm).
Benefits:
- Continuously variable speed control.
- Digital electronics for constant stopping of the set speed.
- Overload protection.
- Soft start-up for the protection of people, tools and drive.
- The electric drive with DIN 10 connection is suitable for variable use with different rigid extensions.
Application recommendations:
- Suitable for European markets.
PFERD TOOLS efficiency:
- PFERD TOOLS EFFICIENCY recommends the drive for long, fatigue-free working.
This text is machine translated.
Benefits:
- Continuously variable speed control.
- Digital electronics for constant stopping of the set speed.
- Overload protection.
- Soft start-up for the protection of people, tools and drive.
- The electric drive with DIN 10 connection is suitable for variable use with different rigid extensions.
Application recommendations:
- Suitable for European markets.
PFERD TOOLS efficiency:
- PFERD TOOLS EFFICIENCY recommends the drive for long, fatigue-free working.
This text is machine translated.
