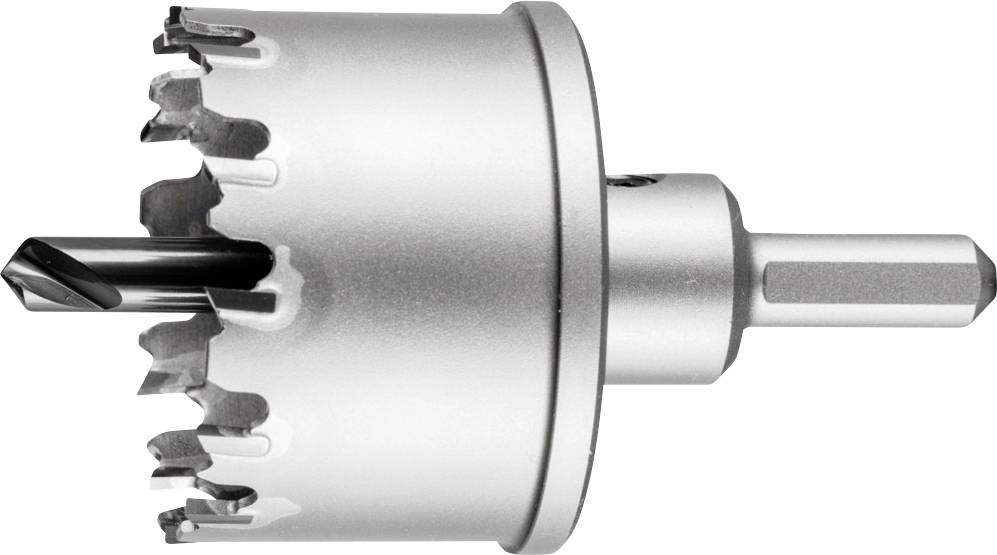

PFERD TOOLS LOS HM 5535 25465535 Hole cutter 55 mm 1 pc(s)
Product type
Hole cutter
Drill hole Ø
55 mm
Material
Carbide metal
Material suitability
Aluminium
Non-ferrous metal
Stainless steel
Plastic
Steel
Cast steel
Working length
32 mm
EAN:
Part number:
Item no:
Technical specifications
- Opt RPM Stainless Steel (INOX) from: 115 RPMOpt RPM stainless steel (INOX) up to 290 RPMOpt RPM plastic by: 250 RPMOpt RPM plastic up to: 380 RPMOpt RPM NE-Metals of: 250 RPMOpt RPM NE-metals up to: 380 RPMOpt RPM Steel of: 230 RPMOpt RPM Steel up to 350 RPM
- Product type
Hole cutter
- Drill hole Ø
55 mm
- Material
Carbide metal
- Material suitability
Aluminium
Non-ferrous metal
Stainless steel
Plastic
Steel
Cast steel
- Working length
32 mm
- Shank Ø
10 mm
- Height
35 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2439081 PFERD TOOLS LOS HM 5535 25465535 Hole cutter 55 mm 1 pc(s)
Description

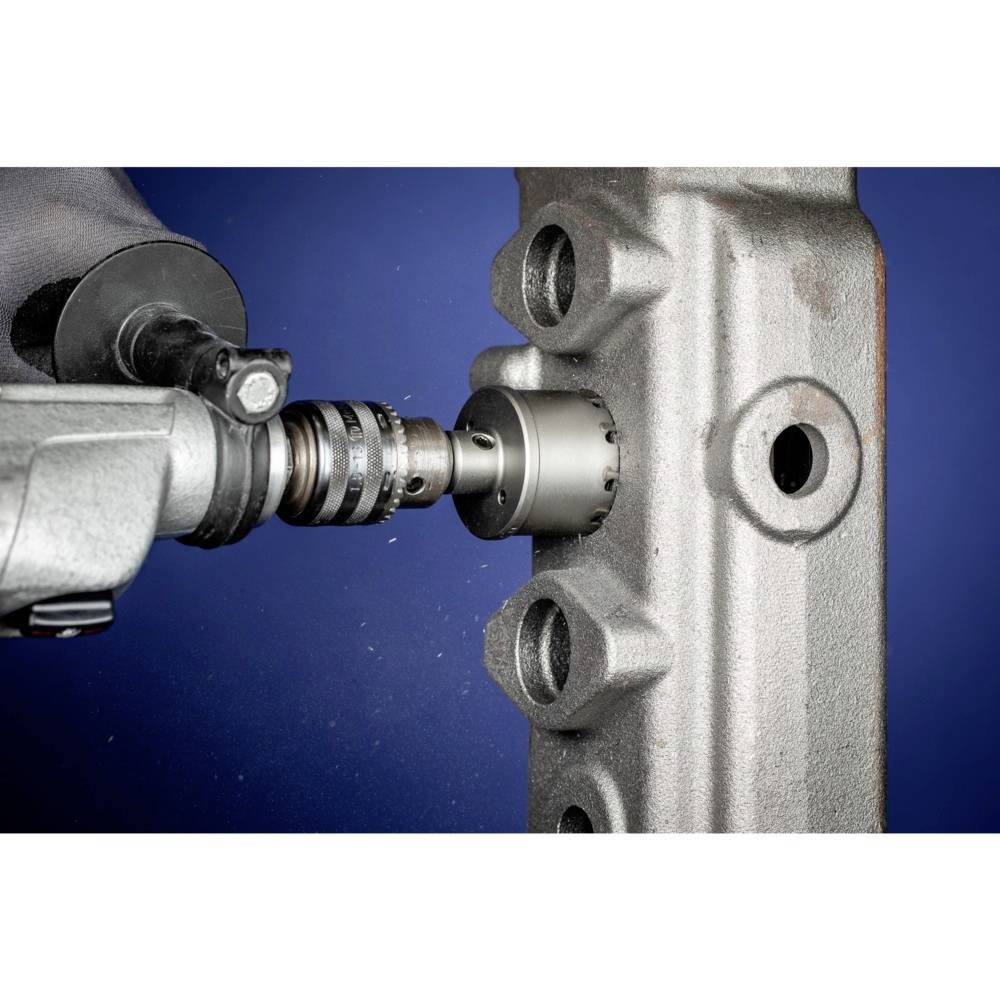

The deep design (tool height 35 mm) is suitable for use on domed surfaces and pipe materials. The maximum cutting depth is 32 mm. Exception: LOS HM 606060Maximum cutting depth 57 mmDrive types:- Drill- Stator drillUses:- Drilling- Create breakthroughsMaterial:- Aluminium- Non-ferrous metal- Non-ferrous metal soft- Stainless steel (INOX)- Plastics- Steel, cast steel
