PFERD TOOLS PGAS 3/370 RS 80115011 Robot spindle 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

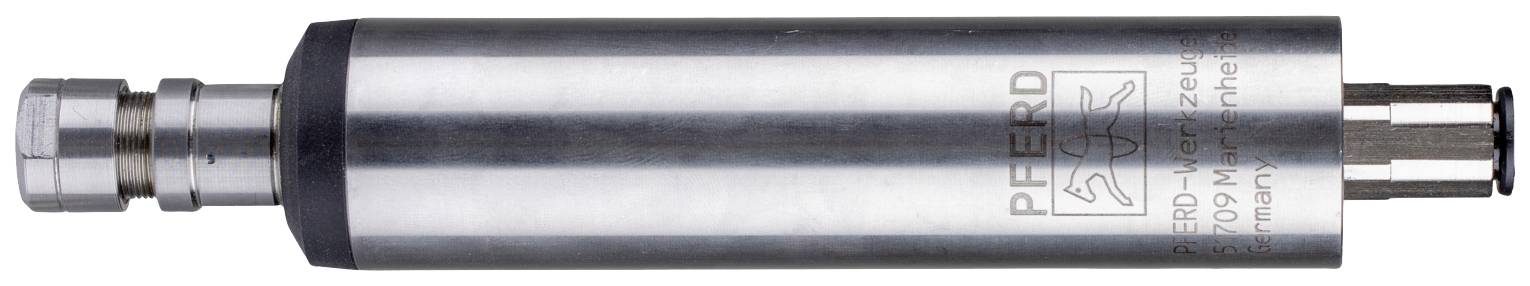

Robot spindle PGAS 3/370 RS 37,000 RPM/320 watt
- No dust on the workpiece sideDouble spindle storage for longer service life
Technical specifications
- Exhaust outlet: RearExternal Ø Supply air hose 8 mmInner-Ø Supply air hose: 6 mmDirection of rotation: Clockwise rotationSpeed 37000 RPMHeight: 30 mmCollet chuck Ø 6 mmOutput: 320 WAir consumption (idle): 0.7 m³/min.Air consumption (at load): 0.5 m³/min.
- Product type
#####Roboterspindel
- (Ø)
6 mm
- Length
156 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632100 PFERD TOOLS PGAS 3/370 RS 80115011 Robot spindle 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2632100 PFERD TOOLS PGAS 3/370 RS 80115011 Robot spindle 1 pc(s)
Description
Robot spindles are ideal for stationary use in robot stations, machine tools and for installation in transfer lines. The air outlet duct of the compressed air drive is located at the rear. The robot spindle is characterized by its very high concentricity in continuous use. It has a stainless steel collet chuck.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Flash coupling
- Collet chuck 6 mm
- 2x clamping key
