PFERD TOOLS PWA 11/120 RS 80115023 Robot spindle 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

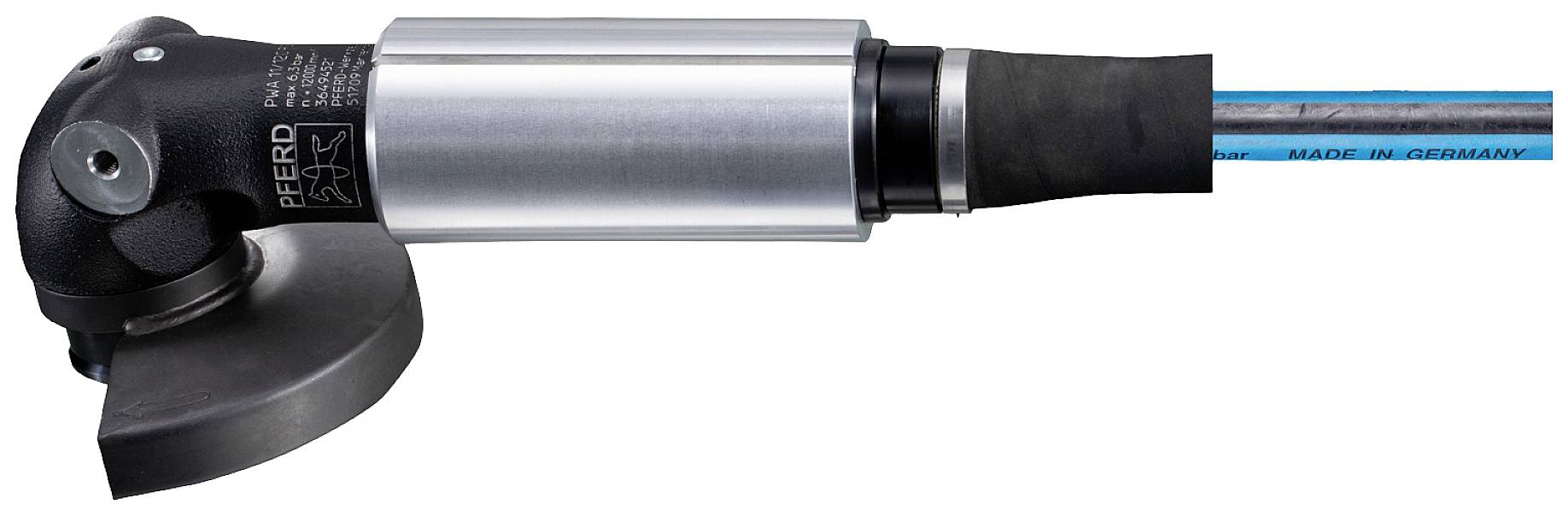

Robot spindle PWA 11/120 RS 12,000 RPM/1,000 Watt
- No dust on the workpiece side; auto-balancer on the work spindleConstant flow rate through centrifugal regulator
Technical specifications
- Exhaust outlet: RearInternal Ø Supply air hose 12 mmDirection of rotation: Clockwise rotationSpeed 5200 RPMHeight: 89 mmOutput: 1100 WAir consumption (idle): 0.5 m³/min.Air consumption (at load): 1 m³/min.Tool holder hole Ø 22.23 mmThread Ø: M14
- Product type
#####Roboterspindel
- External thread
M14
- (Ø)
125 mm
- Length
280 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632111 PFERD TOOLS PWA 11/120 RS 80115023 Robot spindle 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2632111 PFERD TOOLS PWA 11/120 RS 80115023 Robot spindle 1 pc(s)
Description
Robot spindles are ideal for stationary use in robot stations, machine tools and for installation in transfer lines. The air outlet duct of the compressed air drive is located at the rear. The robot spindle has a spindle lock that allows tool change with a key. Max. Tool-ø up to 125 mm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 m from and 2.5 m supply air hose with 1/2" thread connection on the outside
- 2x flange screws
- 2x spacer sleeves
- 2x clamping key
- Protective cover
- Tightening nut
