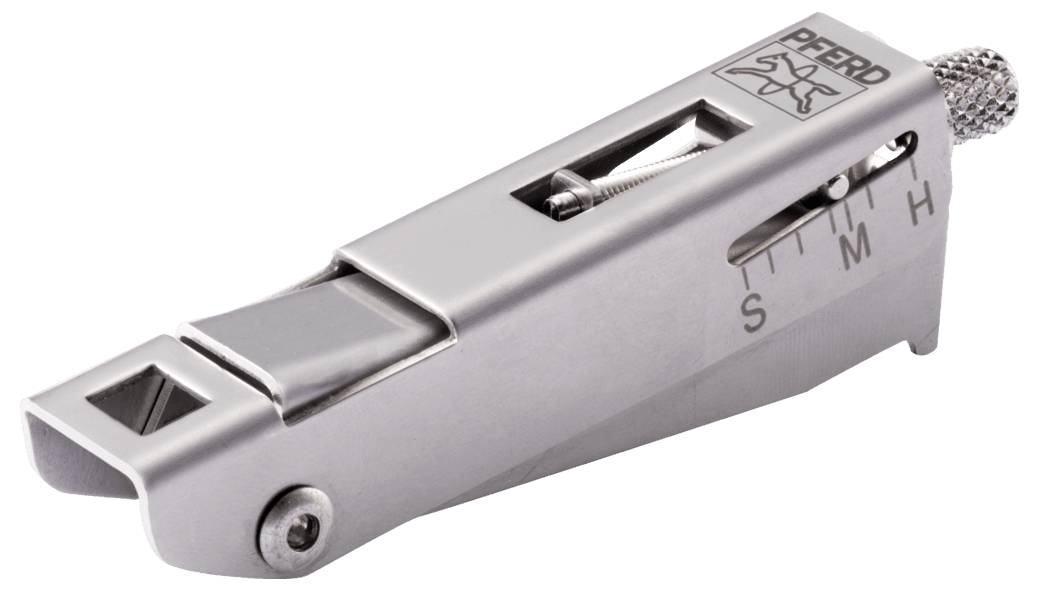

PFERD TOOLS TBL 24 11099224 Depth calipers

The specially developed adjustable depth limiter makes it possible to control the distance between the saw tooth and depth limiter and is the ideal tool for individually adjusting the depth limiter of the saw chain to obtain the optimum sharpening result for wood sawing. With the adjustable depth limiter gauge the distance between the saw tooth and the depth limiter can be controlled.


Technical data
- Chain division: 1/4", 3/8" LP, .325", 3/8", .404"
- Depth limiter distance: 0.65 mm
- Length, total: 83 mm

Benefits:
- Allows optimum adjustment of the depth limiter to the individual conditions when sawing.

Application recommendations:
- The depth gauge should not be refined, as this can change the dimensional accuracy.
- For the majority of the chain types, the chain manufacturers recommend a distance of 0.65 mm (0.025"). The entire adjustment range of the depth gauge is 0.5 mm (0.020").
- To check the file result, always place the depth gauge in the middle of the guide rail.

Drive types:
- Manual insert

Safety Instructions:
- A misadjusted depth limiter carries accident risks! Therefore, always observe the specifications, recommendations and safety instructions of the saw chain manufacturers.
- Not suitable for safety chains with safety element marked as low-return.
