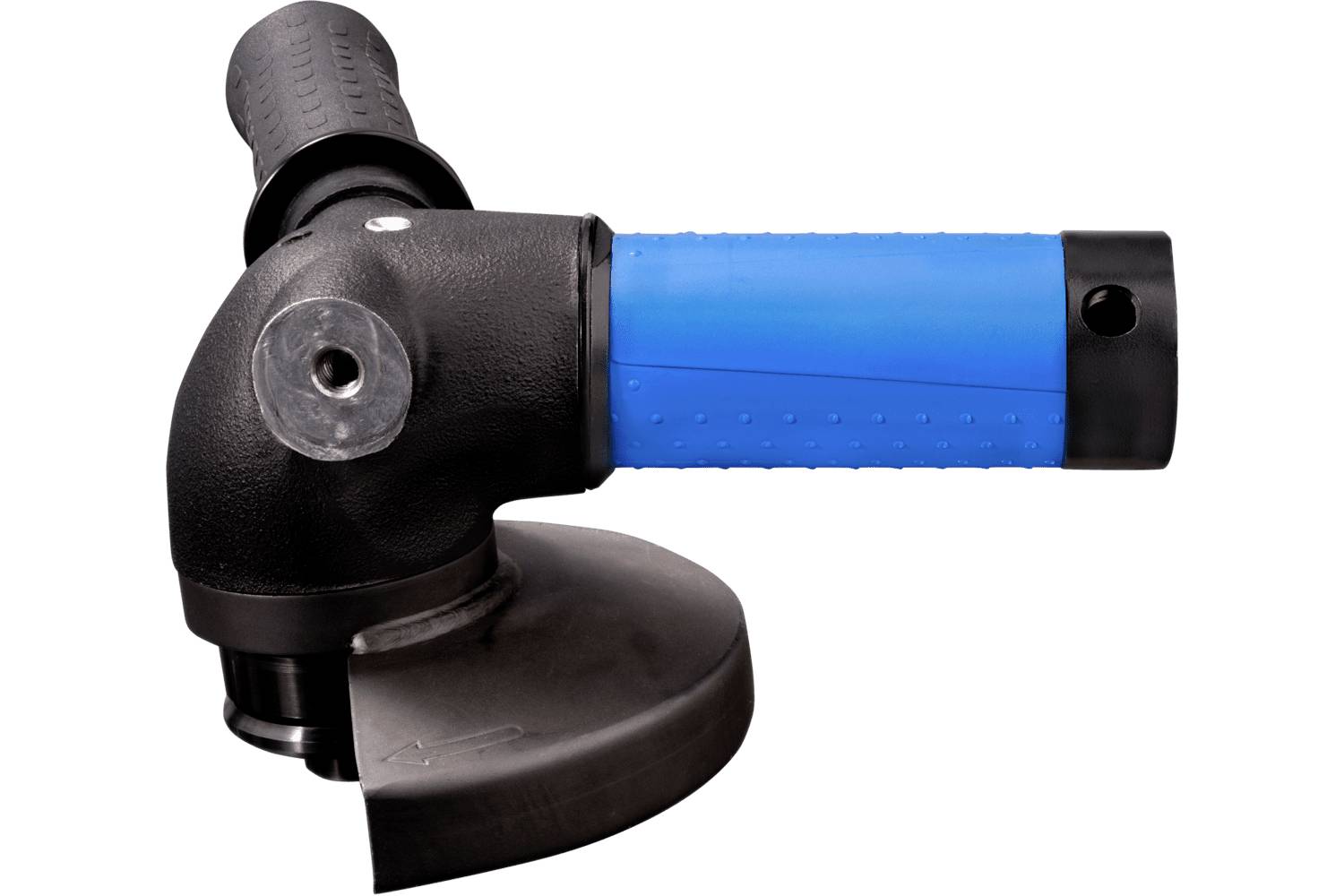

PFERD TOOLS WT 10 G28 86300621 Angle drive 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS angle drive WT 10 G28 with tool holder 22.23 mm Max. RPM 18,000
- - PFERD TOOLS type: WT 10 G28
- - Drive speed n max.: 18000 RPM
- - Output speed at n max.: 12000 RPM
- - Gear ratio: 1.53:1
- - Metric width: 40 mm
- - Handpiece coupling G: 28
- - Length metric: 173 mm
- - Net weight: 1,438 kg
- - ø Outer metric: 98 mm
- - ø Thread: M14
- - Ø Tool holder: 22.23 mm
- - Height: 98 mm
Technical specifications
- Product type
Angle drive
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773100 PFERD TOOLS WT 10 G28 86300621 Angle drive 1 pc(s)
Description
Angle drive can be connected to all flexible shafts with connection G28 (instead of hand piece). Shaft connection can be rotated 360°. Allows the use of flexible shaft drives as an angle grinder. 1 clamping nut (item no. 98980036), 2 flange screws (1x item no. 98980037, 1x item no. 98980038), 2 spacer sleeves (1x item no. 98980039, 1x item no. 98980040), 2 wrench (1x STL SW 35 x 5 mm, 1x SKS SW 4 mm), protective cover ø 125 mm, anti-vibration handle.
Technical data
- PFERD TOOLS type: WT 10 G28
- Drive speed n max.: 18000 RPM
- Output speed at n max.: 12000 RPM
- Gear ratio: 1.53:1
- Metric width: 40 mm
- Handpiece coupling G: 28
- Length metric: 173 mm
- Net weight: 1,438 kg
- ø Outer metric: 98 mm
- ø Thread: M14
- Ø Tool holder: 22.23 mm
- Height: 98 mm
This text is machine translated.
Technical data
- PFERD TOOLS type: WT 10 G28
- Drive speed n max.: 18000 RPM
- Output speed at n max.: 12000 RPM
- Gear ratio: 1.53:1
- Metric width: 40 mm
- Handpiece coupling G: 28
- Length metric: 173 mm
- Net weight: 1,438 kg
- ø Outer metric: 98 mm
- ø Thread: M14
- Ø Tool holder: 22.23 mm
- Height: 98 mm
This text is machine translated.
