PFERD TOOLS WT 10 G28 RS 87100989 Robot spindle 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS robot spindle WT 10 G28 RS max. 12,000 RPM
- Design: System flexible shaft 10
Technical specifications
- - Max. RPM 18000 RPM
- - Speed range, from: 750 RPM
- - Speed range, up to: 18000 RPM
- - Gear ratio: 1.53 : 1
- - Design: System flexible shaft 10
- - Metric width: 60 mm
- - Handpiece coupling G: 28
- - Tool mounting hole-Ø: 22.23 mm
- - Length metric: 240 mm
- - Net weight: 1,788 kg
- - Workpiece-side coupling Ø [mm]: 28 mm
- - Ambient temperature in operation: -10 | + 40
- - Gearbox lubrication: 2 g.
- - Grinding disc ø max.: 125 mm
- - Maximum permissible speed: 12000 RPM
- - Maximum reliable speed: 18000 RPM
- - Oil viscosity: 22-32 cSt
- - Thread spindle: M14 | -
- - ø Outer metric: 98 mm
- - Angle head: -
- - Height: 98 mm
- Product type
Robot spindle
- Length
240 mm
- Weight
1.788 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773106 PFERD TOOLS WT 10 G28 RS 87100989 Robot spindle 1 pc(s)
Description

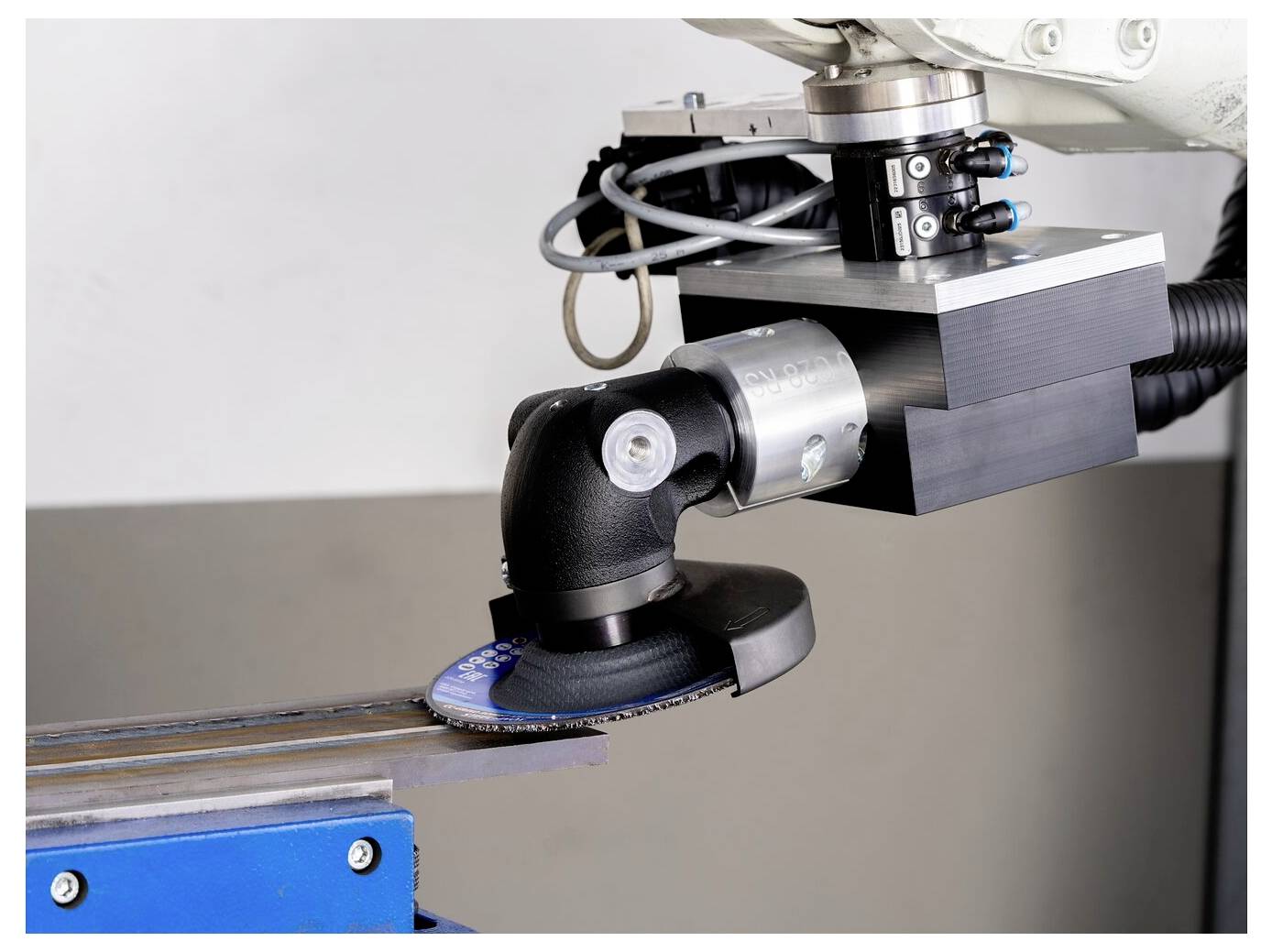

Angle drive for stationary use. Can be connected to all flexible shafts with sliding connection G28. With M14 spindle thread and tool attachment ø 22.23 mm. The maximum drive speed is 18,000 RPM. 1 Clamping nut (Item no. 98980036), 2 flange screws (1x Item no. 98980037, 1 item no. 98980038), 2 spacer sleeves (1x product no. 98980039, 1 item no. 98980040), 2 spanner (1x STL SW 35 x 5 mm, 1x SKS SW 4 mm), protective cover ø 125 mm .
Benefits:

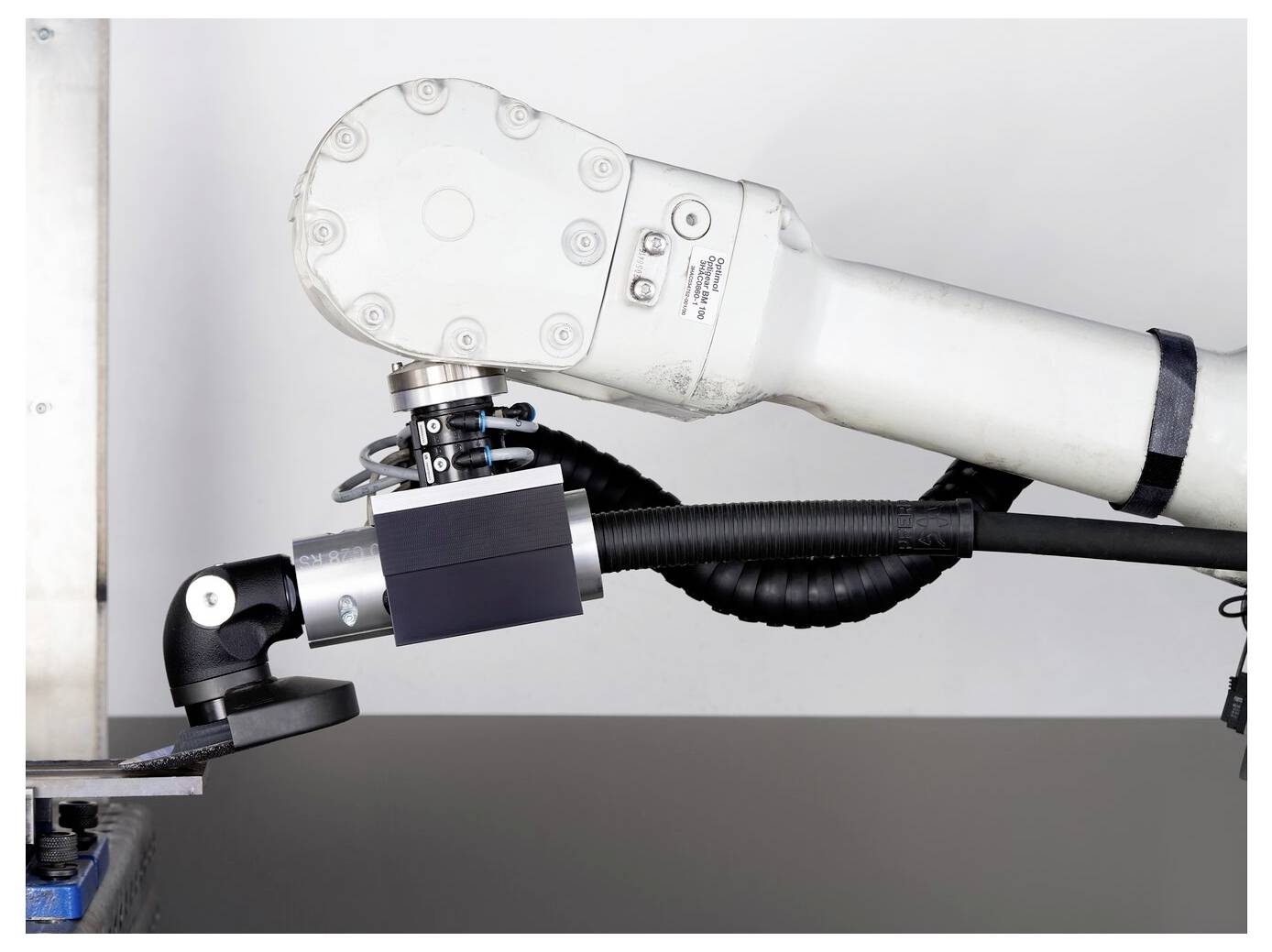

- Allows the use of flexible shaft drives as angular drive in robot cells.

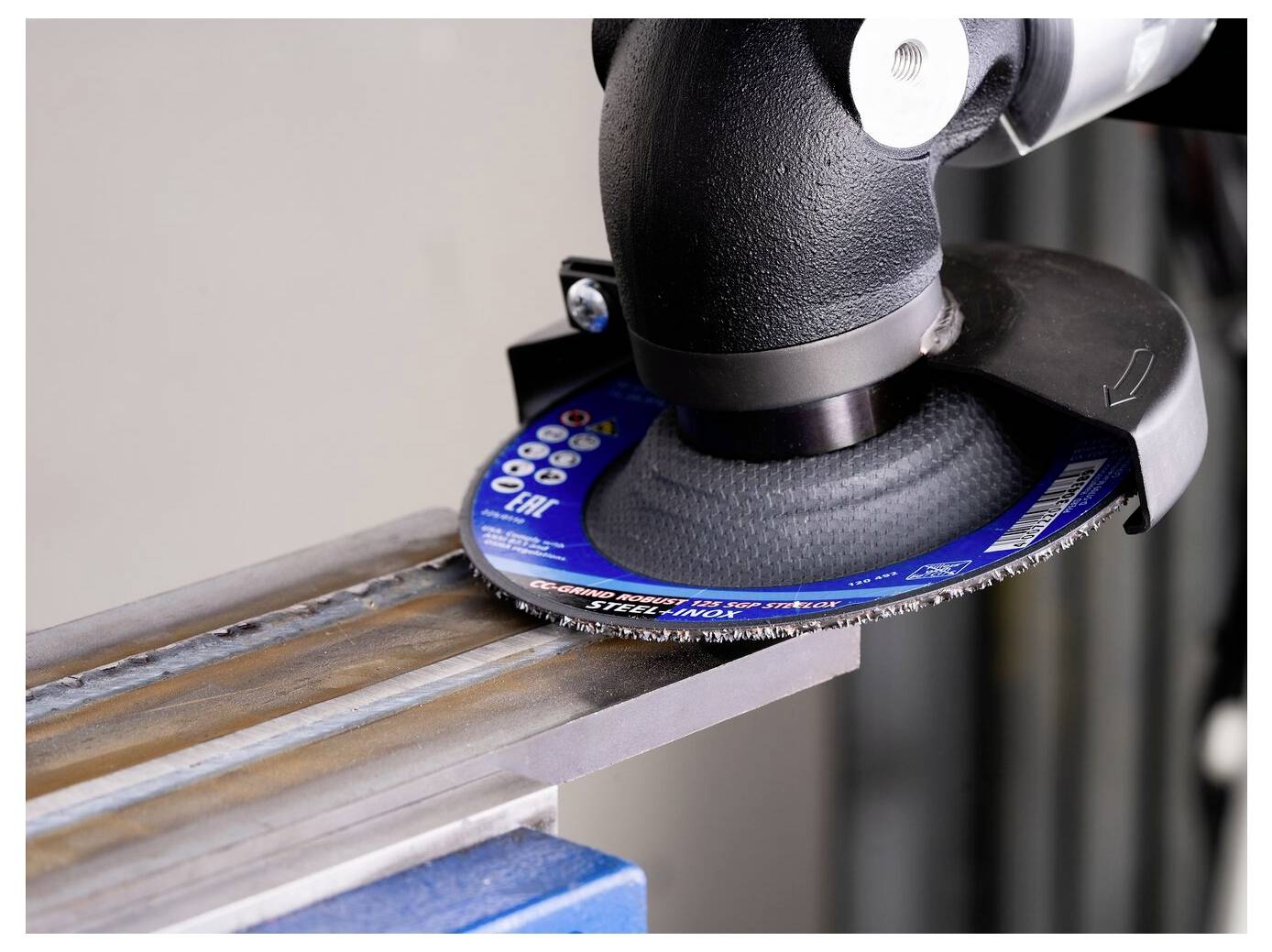

- With maximum tool diameter up to 125 mm.
- The shaft connection can be rotated by 360°.
