Phanteks AMP GH PC power supply unit 750 W ATX 80 PLUS Gold
Product type
PC power supply unit
PSU output power
750 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
EAN:
Part number:
Item no:
Highlights & Details

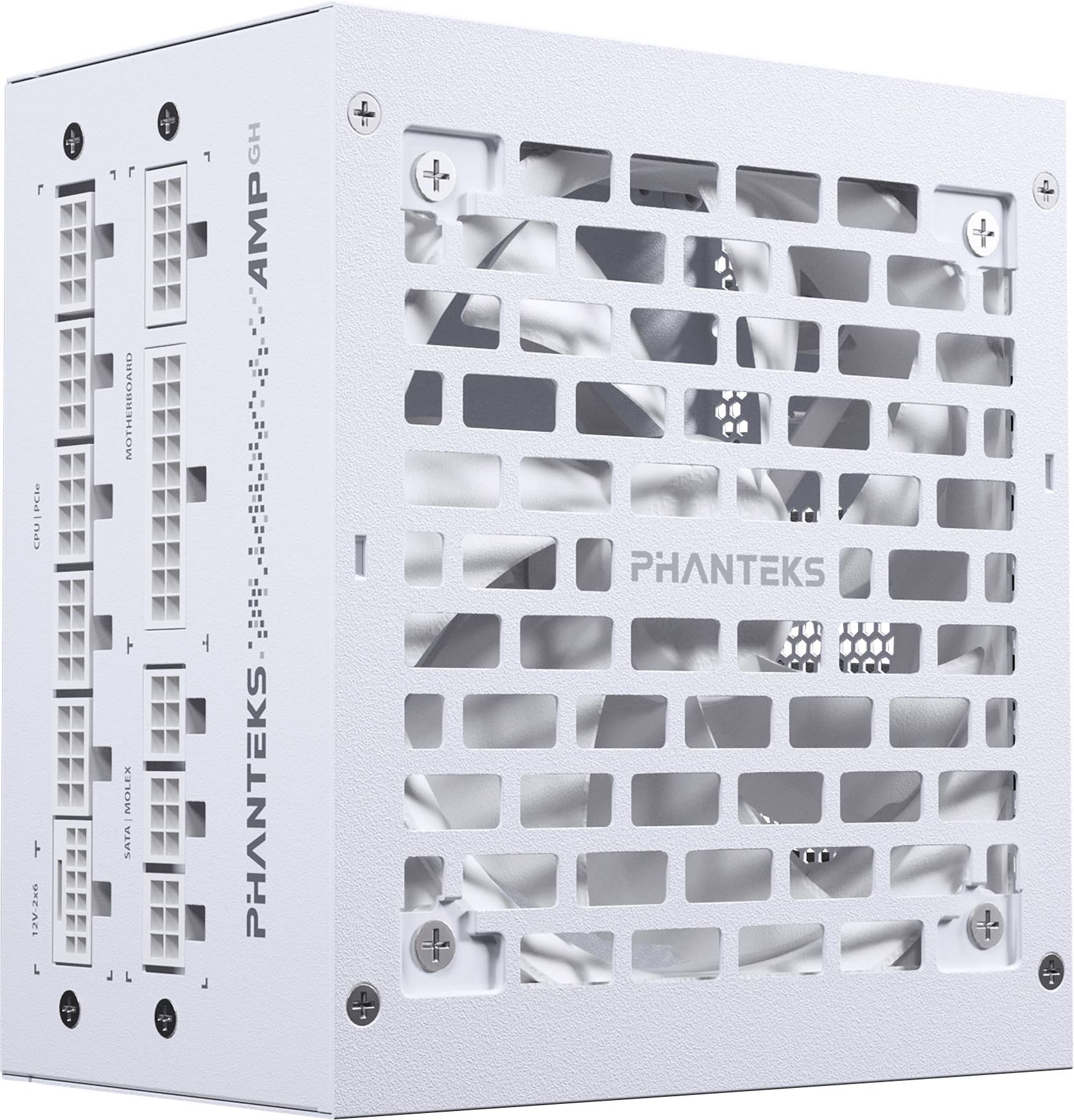

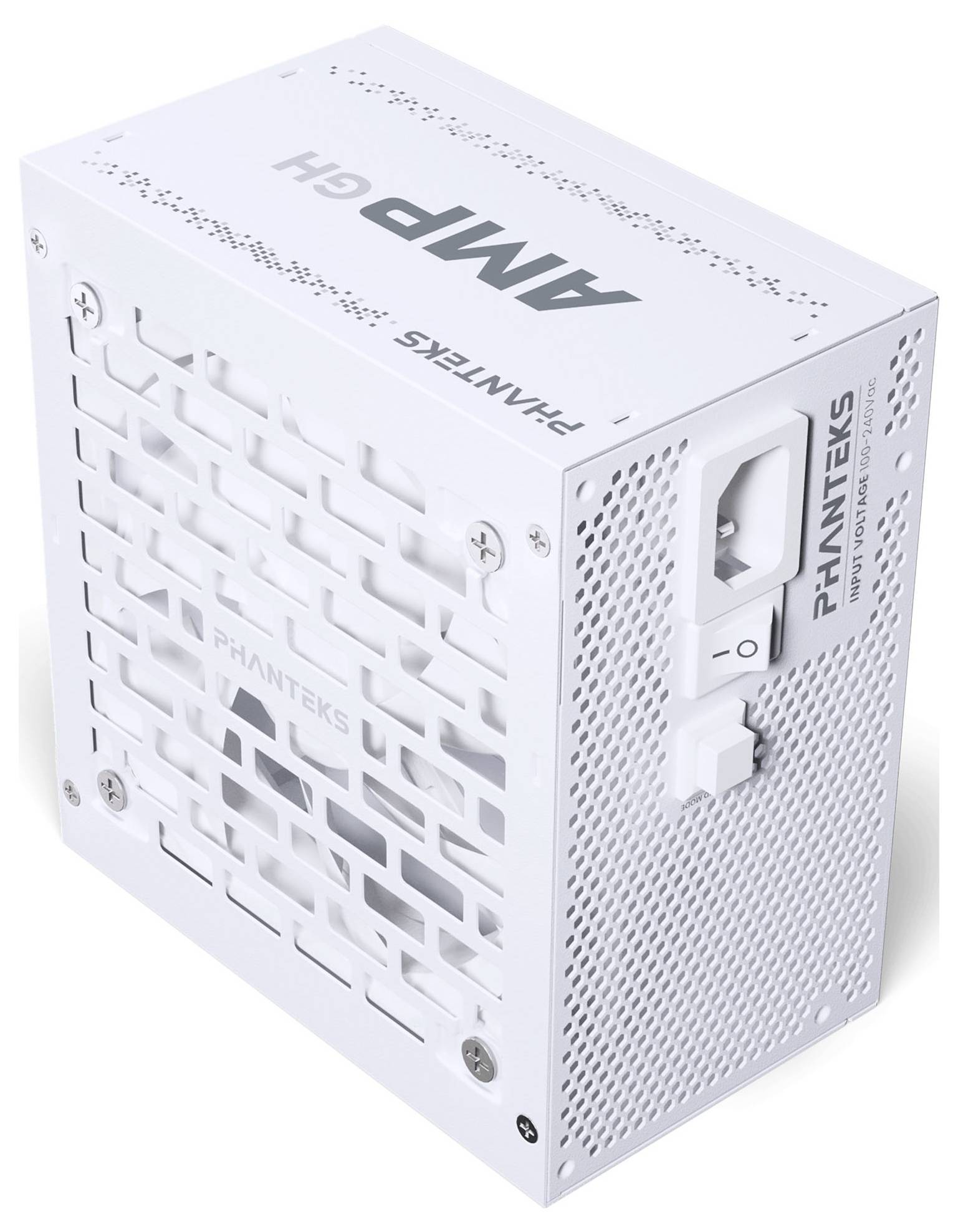

Phanteks AMP GH PC power supply unit
- Power supply unit output 750 W
- PCI-Express (6+2-Pin) 3x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- Fan: 120 mm PWM (FDB / semi-passive hybrid mode at less than 40% load)
- ATX 3.0/3.1 standard
- Efficiency: 90 / 92 / 89 % at 20 / 50 / 100 % and 230 Volt input voltage (80 PLUS Gold)
- POWER: 750 W(+3.3V: 20 A / 66 W; +5V: 20 A / 100 W; +3.3V & +5V: 100 W (COMBINED); +12V: 62 A / 744 W (COMBINED); -12V: 0.3 A / 3.6 W; +5VSB: 2.5 A / 12.5 W)
- Power supply sockets (modular): 1x 18+10-pin (mainboard); 5x 8-pin (CPU/PCIe); 3x 6-pin (SATA/Molex); 1x 12V-2x6 (GPU)
- Internal connections: 2x CPU power connections (12V ATX/EPS); 2x 4+4-pin CPU power supply; 1x 12V-2x6 connections; 3x 6+2-pin PCIe connections; 10x SATA power connections; 2x 4-pin Molex connections
- Protection circuits: OVP (fuse against overvoltage and undervoltage), UVP (low voltage protection), SCP (short-circuit protection), OPP (overload protection), OTP (excess temperature protection), OCP (overcurrent protection), no-load protection (no-load protection), reset protection
- Product type
PC power supply unit
- PSU output power
750 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
White
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
0
- -12V / DC
0.3 A
- +12 V/DC (1)
62 A
- 5 V DC
20 A
- +5V / DC SB
2.5 A
- 4-pin 12 V
1
- 4-pin Molex
2
- 4+4 pin ATX/EPS 12V
2
- 6-pin PCIe
3
- 5-pin SATA
10
- Features
ATX 3.0
- Power rating
501 - 750 W
- 3.3V DC
20 A
- Operating voltage
12 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339228 Phanteks AMP GH PC power supply unit 750 W ATX 80 PLUS Gold
Description
The Phanteks AMP GH 750W: Powerful and reliable
The Phanteks AMP GH 750W is a high-performance ATX 3.1 power supply that securely supplies your gaming hardware with electricity. Phanteks has developed a compact power supply, which corresponds to the common ATX-form factor with a depth of just 140 mm and which finds place in most of the housings. The 80 PLUS Gold-certified power supply works very efficiently through the use of high-quality electrical components. Its fully modular design with individually shielded and specially textured cables makes installation easier and ensures a clean look.
ATX-3.1-PSU with PCIe-5.1 connection for graphics cards
The AMP-GH series corresponds completely to the ATX 3.0 and 3.1 standards and is therefore compatible with the latest components. Phanteks also features a 12V 2x6 plug based on the PCIe 5.1 standard, making this PSU the best for the latest and upcoming high-end GPUs.
Maximum flexibility: Different connection options and modular design
The gold-plated connectors reduce electrical resistance and increase efficiency, WAS ensures energy-efficient and reliable operation. The delivery not only includes the power supply but also all the necessary cables for the mainboard, CPU, PCIe cards SATA and Molex for drives and accessories. The fully modular design enables easy installation and reduces cable clutter. With its wide range of connectivity options, your desktop PC can be flexibly adapted to your needs.
Silent, semi-passive hybrid mode

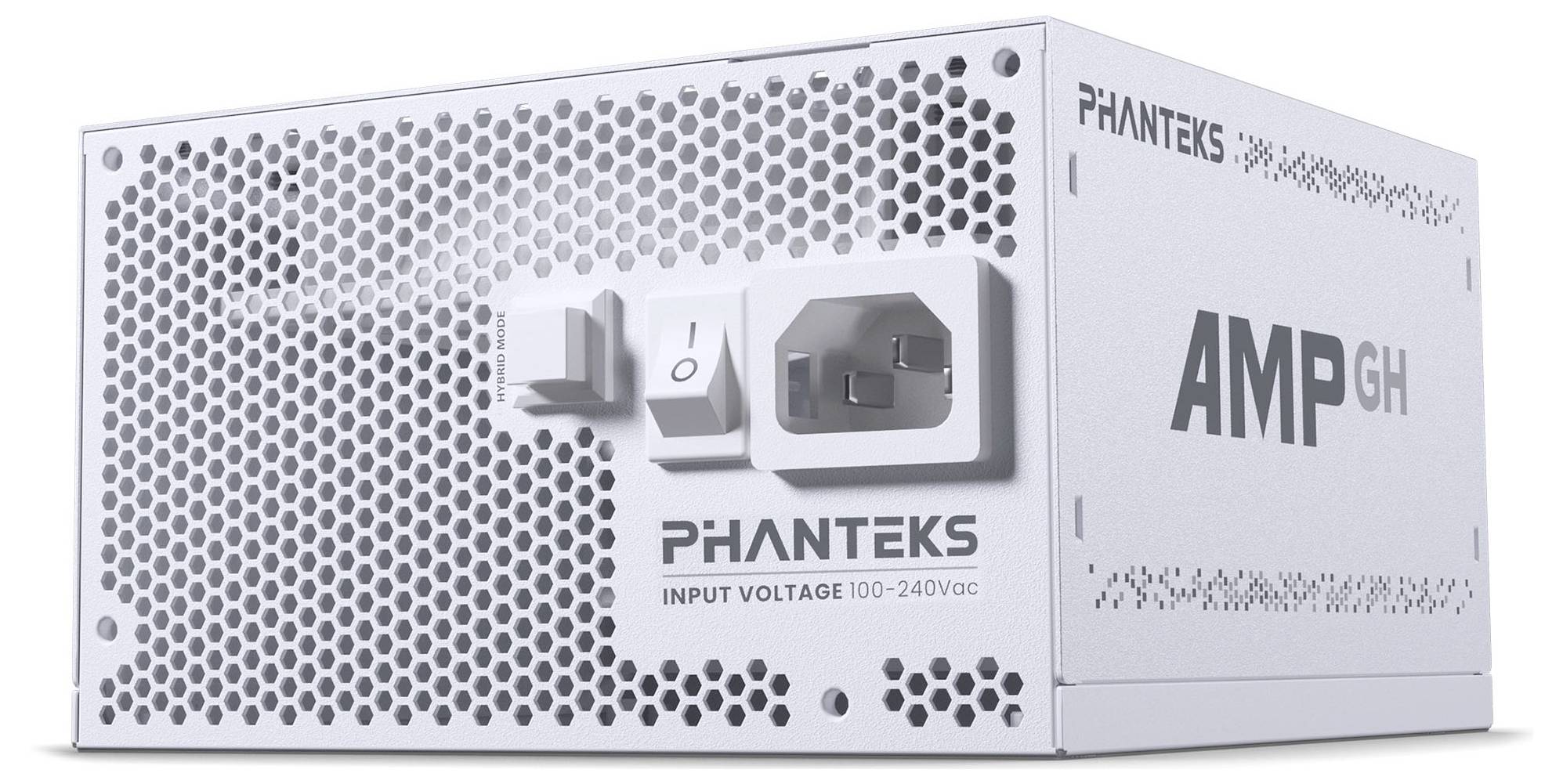

The 120-mm fan with hydrodynamic bearings ensures optimum cooling with minimum noise. In this mode, the power supply fan switches off automatically when the load is less than 40%, while WAS enables almost silent operation. The semi-passive hybrid mode can be easily switched on and off via a switch on the back.
Quiet operation offers several advantages: It creates a quieter working and gaming environment, reduces distractions, and improves your entire experience. Moreover, it protects the fan, WAS provides for a yet higher lifespan of your power supply.
This text is machine translated.
Scope of delivery
- 1x Phanteks AMP GH 750W 80 PLUS Gold power supply, PCIe 5.1, ATX 3.1 - 750 Watt, white
- 1x C13 power cable (1.5 m)
- 1x 18+10-pin to 24-pin (610 mm) cable
- 2x 8-Pin for 4+4-Pin (650 mm) Cable
- 3x 8-pin to 6+2-pin (750 mm) cable
- 1x 12V-2x6 to 12V-2x6 (720 mm) cable
- 2x 6-pin to 4x SATA, of which 3x 90 degree (450 - 150 - 150 - 150 mm) cable
- 1x 6-Pin to 2x SATA, 90 degree + 2x Molex (450 - 150 - 150 - 150 mm) cable
- 1x user manual
- 1x user manual
- 1x PSU bag
- 1 x PSU jumper
- 1x cable tie
Hints
Note: Use only the supplied cables. The use of other, incompatible internal power supply cables may lead to damage!
