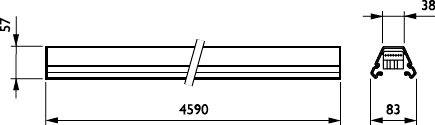

Philips 4030732536870 4MX056 583 7x2.5 SI Rail 58 W Silver 1 pc(s)

The mounting rail has two tasks: It serves both as a stable mounting rail for the light beams and as a housing for the power supply cables of the individual units. All rail sections are made of white or silver-coated hot-dip galvanized steel. They are available in lengths of 1, 2 and 3 light carriers for 36 W and 58 W. One (5- or 7-core) or two (2 x 5-core or 2 x 7-core) flat ribbon cables are integrated in the rail, so that a safe and correct wiring is possible at all times (in connection with an integrated phase selection switch and connection blocks). The 7-core cable serves to connect a light control or emergency lighting to the light carriers equipped with an emergency battery pack. Double cables (2 x 5 - or 2 x 7-core) are needed when the light beams are to be connected to a completely separate power supply. They are used primarily for emergency lighting via central emergency batteries or separate switching operations. In these cases, no additional terminal blocks or cables are required.

This text is machine translated.
