Name: Philips 8719514182516 SM340C 52S/940 DEIA PCS L150 SI LED surface-mount light LED (monochrome) 38 W Silver
Brand: Philips
SKU: 3825610

A slim rectangular LED ceiling light fixture with a silver housing, shown in perspective on a white background.

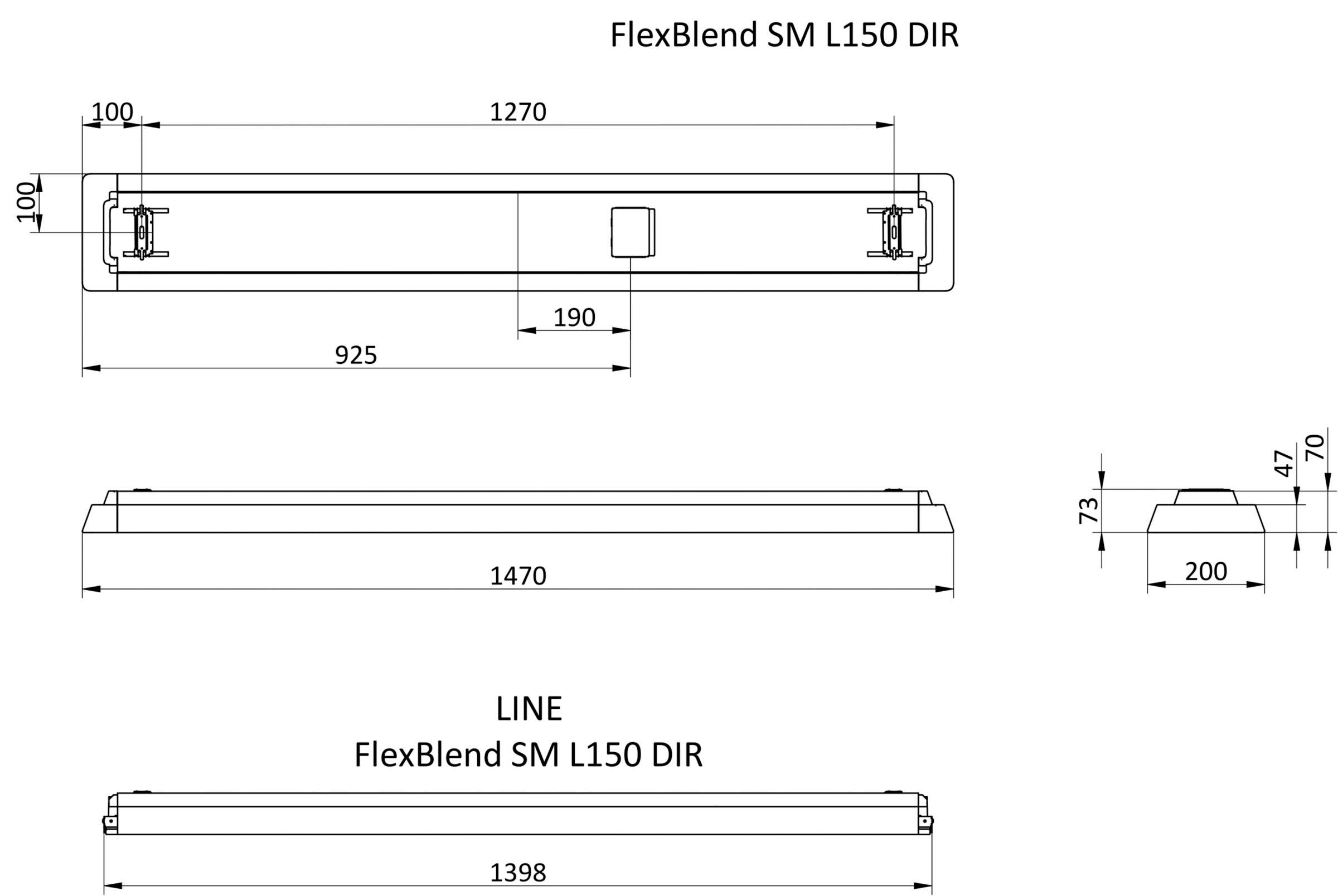

Technical line drawing of the FlexBlend SM L150 DIR fixture showing top, side, and end views with dimensions 1270, 1470, 1398, 925, 190, and 200 mm.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Power= 38 W
Total luminous flux= 5200 lm
Colour temperature= 4000 K
White

Technical specifications

Dim: (L x W x H) 1470 x 200 x 73 mm

Operating voltage: 220 V AC
240 V AC

No. of bulbs: 5

Product type: LED surface-mount light

Width: 200 mm

Bulb type: LED (monochrome)

Height: 73 mm

Length: 1470 mm

: 38 W

Light features: Incl. ballast
Dimmable
Direct light emission
Ceiling mount option
Usable as a pendant light
Incl. cover

Protection class: I

: IP20
IK02

Factory colour: Silver

Material: Steel
Plastic

: n.rel.

Colour rendering index: 90-100

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature range: 4000 K

Total luminous flux: 5200 lm

Type: painted

Documents & Downloads

Datasheet

Datasheet 3825610 Philips 8719514182516 SM340C 52S/940 DEIA PCS L150 SI LED surface-mount light LED (monochrome) 38 W Silver

User & Safety Instructions

User & Safety Instructions 3825610 Philips 8719514182516 SM340C 52S/940 DEIA PCS L150 SI LED surface-mount light LED (monochrome) 38 W Silver

Description

1470x200 mm; H73 mm, steel, silver, white aluminum (RAL9006), Power supply with DALI interface, 5200 lm, 39 W, 133 lm/W, 4000 K, (0.43, 0.40) SDCM 3, CRI90, UGR19, WIDE BEAM (WB), Textured, polycarbonate, IP20 | Keep fingers away, IK02 | 0.2 J Standard, Protection Class I, Quick Connector, 5-pin
