Name: Philips 8720169768376 BN126C LED64S/830_40 PSD L1200 LED strip light LED (monochrome) 45.5 W White
Brand: Philips
SKU: 3825525

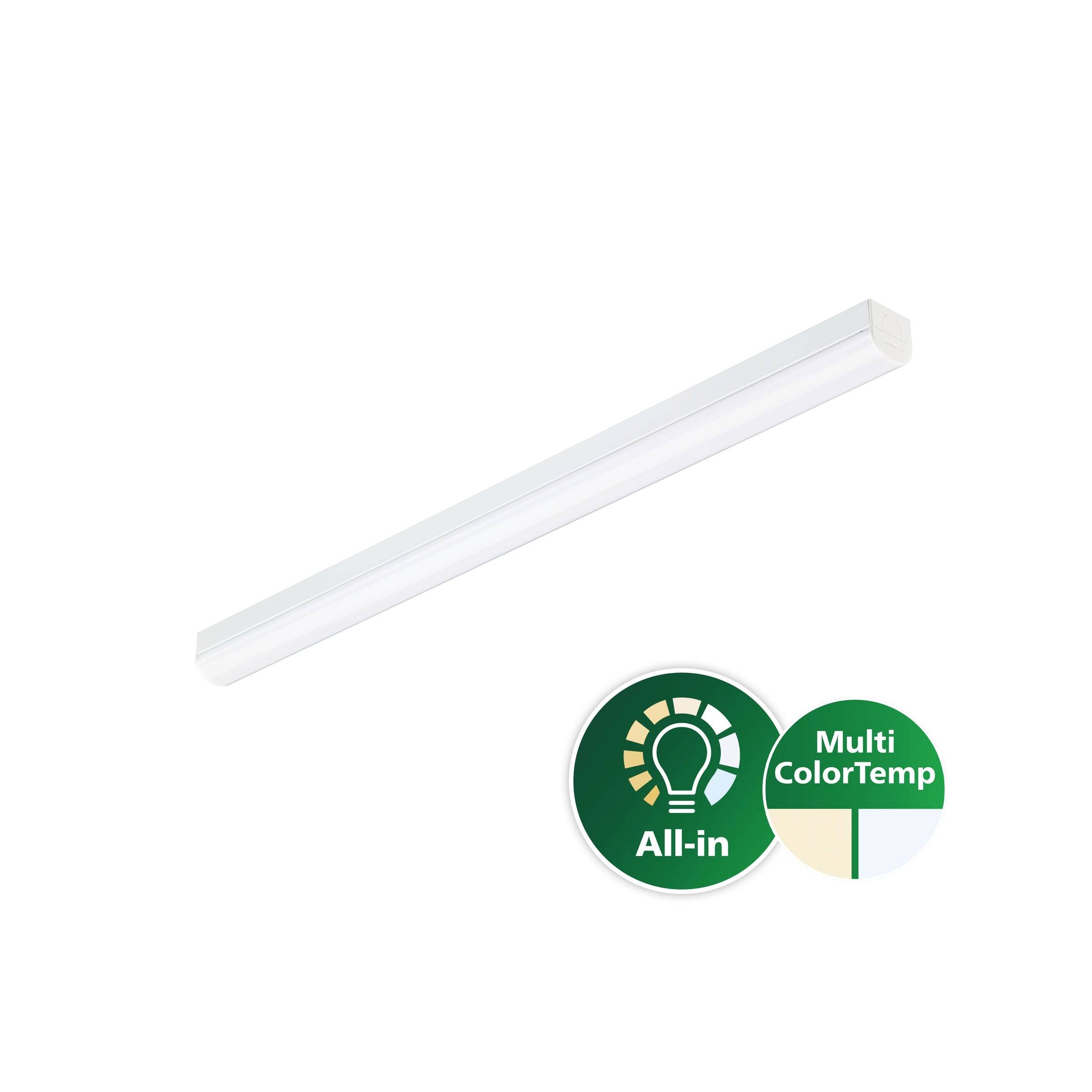

White linear LED light fixture with green 'All-in' and 'Multi ColorTemp' badges on a plain background.

Technical drawing of a long rectangular bar/rail, showing front and end views with hole locations and dimensions labeled 1135, 798, 65, 15.2, 15, and 5.2.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Power= 45.5 W
Total luminous flux= 6400 lm
White

Technical specifications

Dim: (L x W x H) 1135 x 65 x 65 mm

Operating voltage: 220 V AC
240 V AC

Product type: LED strip light

Width: 65 mm

Bulb type: LED (monochrome)

Height: 65 mm

Length: 1135 mm

: 45.5 W

Light features: Incl. ballast
Dimmable
Selectable luminous flux

Protection class: I

: IP20
IK04

Factory colour: White

Material: Metal
Plastic

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

Colour temperature (max.): 4000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 4000 K

Total luminous flux: 6400 lm

Documents & Downloads

Datasheet

Datasheet 3825525 Philips 8720169768376 BN126C LED64S/830_40 PSD L1200 LED strip light LED (monochrome) 45.5 W White

User & Safety Instructions

User & Safety Instructions 3825525 Philips 8720169768376 BN126C LED64S/830_40 PSD L1200 LED strip light LED (monochrome) 45.5 W White

Description

BATTERIES, L1200, Metal Plastic, White RAL 9003, Power supply with DALI interface, All-in, Multi Colour Temperature, 6400 lm, 45.5 W, 140 lm/W, 3000 K, 4000 K, (0.43,0.40) SDCM=3, Symmetric, Opal, Polycarbonate, IP20/40 | Finger Contact Protection; Wire Protection, IK04 | 0.5 J Standard plus, Protection Class I, Quick Connector, 3-pin, Simple Connection and Removable Cover for 1-phase Pass-through wiring available (Internal wiring not included)

This text is machine translated.
