Name: Philips 8720169864337 TCBRMR 19S/940 DIA OC WH401 LED light LED (monochrome) 15.4 W White
Brand: Philips
SKU: 3827331

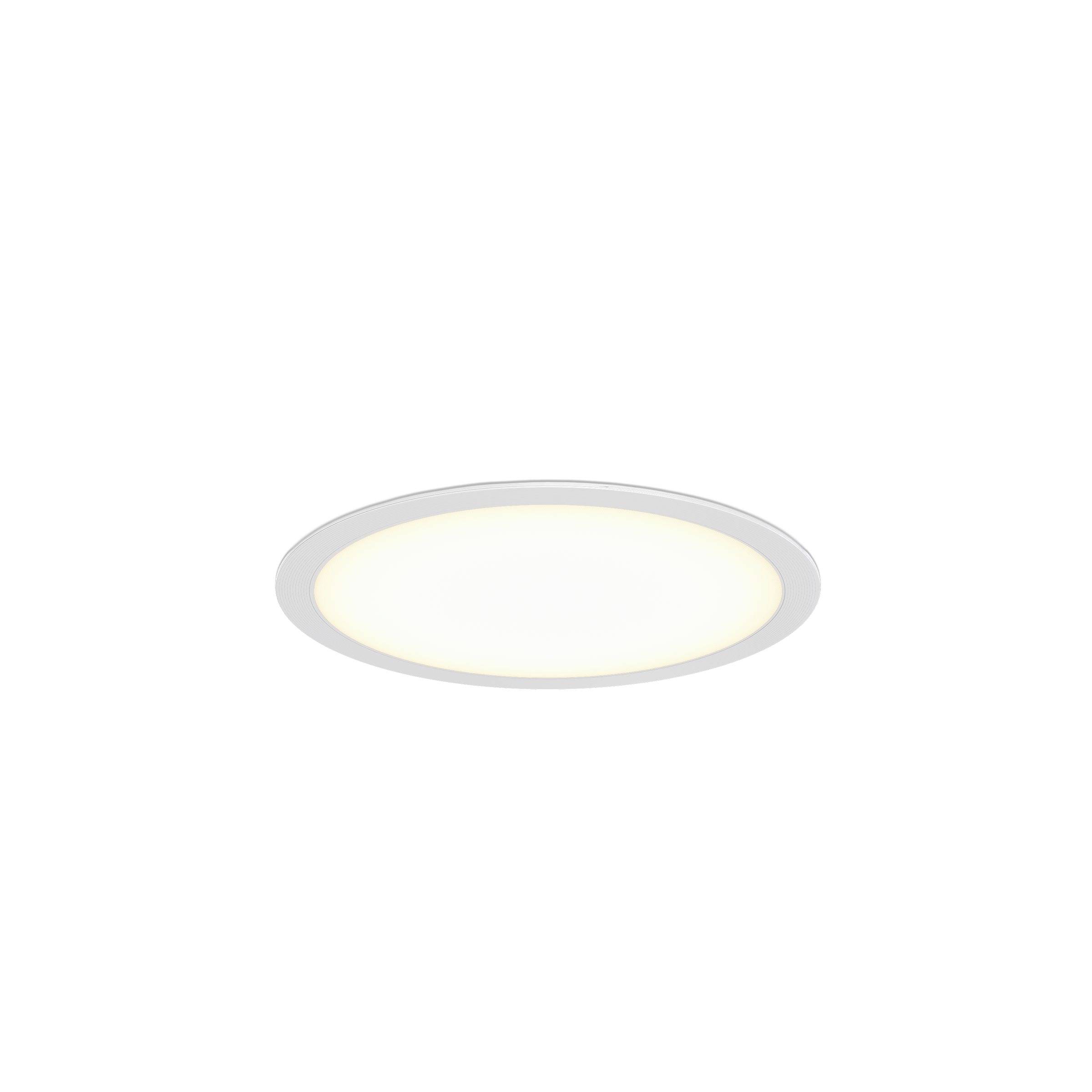

Round recessed ceiling light with a glowing white center and silver rim on a plain white background.

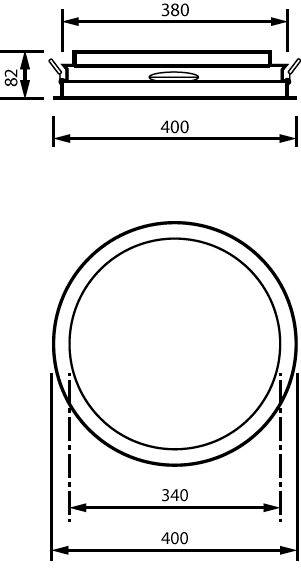

Technical drawing of a round recessed light fixture with dimensions: 380 mm wide, 400 mm overall diameter, 340 mm inner diameter, and 82 mm depth.<br>

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Power= 15.4 W
Total luminous flux= 1890 lm
Colour temperature= 4000 K
White

Technical specifications

Dim: (Ø x H) 400 mm x 82 mm

Operating voltage: 220 V AC
240 V AC

No. of bulbs: 1

Product type: LED light

Bulb type: LED (monochrome)

Height: 82 mm

: 15.4 W

(Ø): 400 mm

Light features: Incl. ballast
Dimmable
Direct light emission
Ceiling mount option
Incl. switch
Incl. cover

Protection class: II

: IP20
IK04

Factory colour: White

Material: Plastic

: n.rel.

Colour rendering index: 90-100

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature range: 4000 K

Total luminous flux: 1890 lm

Type: With air vents

Documents & Downloads

Datasheet

Datasheet 3827331 Philips 8720169864337 TCBRMR 19S/940 DIA OC WH401 LED light LED (monochrome) 15.4 W White

User & Safety Instructions

User & Safety Instructions 3827331 Philips 8720169864337 TCBRMR 19S/940 DIA OC WH401 LED light LED (monochrome) 15.4 W White

Description

D400 mm, polycarbonate, white, DALI dimming Interact System Ready, 1890 lm, 15.4 W, 123 lm/W, 4000 K, (0.38, 0.38) SDCM 3, CR90, UGR19, RADIATION ANGLE (90°), Micro-hexagonal optics, polystyrene, IP20 | Keep fingers away, IK04 | 0.5 J standard plus, protection class II, 2 connectors, 5-pin, through wiring, 1-phase, TP(b) diffuse flammability class

This text is machine translated.
