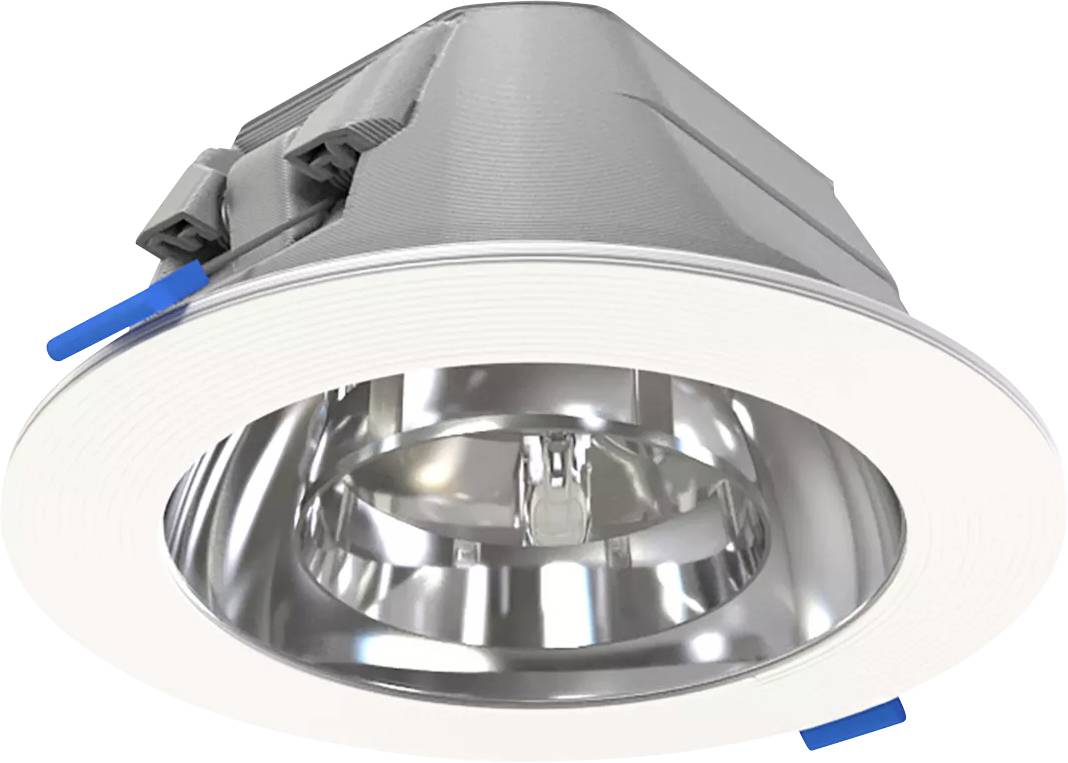

Philips 910505105010 DN500B 20S/840 OC PSU-E PCC WH LED recessed light LED (monochrome) 13.4 W Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 13.4 W Total luminous flux= 1950 lm Colour temperature= 4000 K Neutral white
Technical specifications
- Switch-on time 23.5 ms
- Power surge 8.3 A
- Product type
LED recessed light
- Operating voltage
220 V
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
13.4 W
- Total luminous flux
1950 lm
4000 K
- Colour
Neutral white
- Type
Circular
- Protection screen
Clear
- Radiation angle
60°
- Light features
Ceiling mount option
Recess mount option
Incl. cover
Incl. ballast
Direct light emission
IP20
IP54
IK02
- Protection class
II
- Factory colour
Grey
- Material
Plastic
Aluminium
Polycarbonate (PC)
- Weight
0.6 kg
n.rel.
- Dim
(Ø x H) 180 mm x 73 mm
No
- Light bulb included
Yes
- Colour temperature range
4000 K
- Height
73 mm
- (Ø)
180 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3805311 Philips 910505105010 DN500B 20S/840 OC PSU-E PCC WH LED recessed light LED (monochrome) 13.4 W Grey
User & Safety Instructions
User & Safety Instructions 3805311 Philips 910505105010 DN500B 20S/840 OC PSU-E PCC WH LED recessed light LED (monochrome) 13.4 W Grey
Description
D150 mm, plastic, gray, recessed and insertion lights, power supply (on/off), 1950 lm, 13.4 W, 146 lm/W, 4000 K, (0.38, 0.38) SDCM <3, UGR19, high-gloss reflector, high-gloss reflector, Clear, polycarbonate, IP20/54 | Keep fingers away; Protection against harmful dust deposits inside, splash-proof, IK02 | 0.2 J Standard, protection class II.
