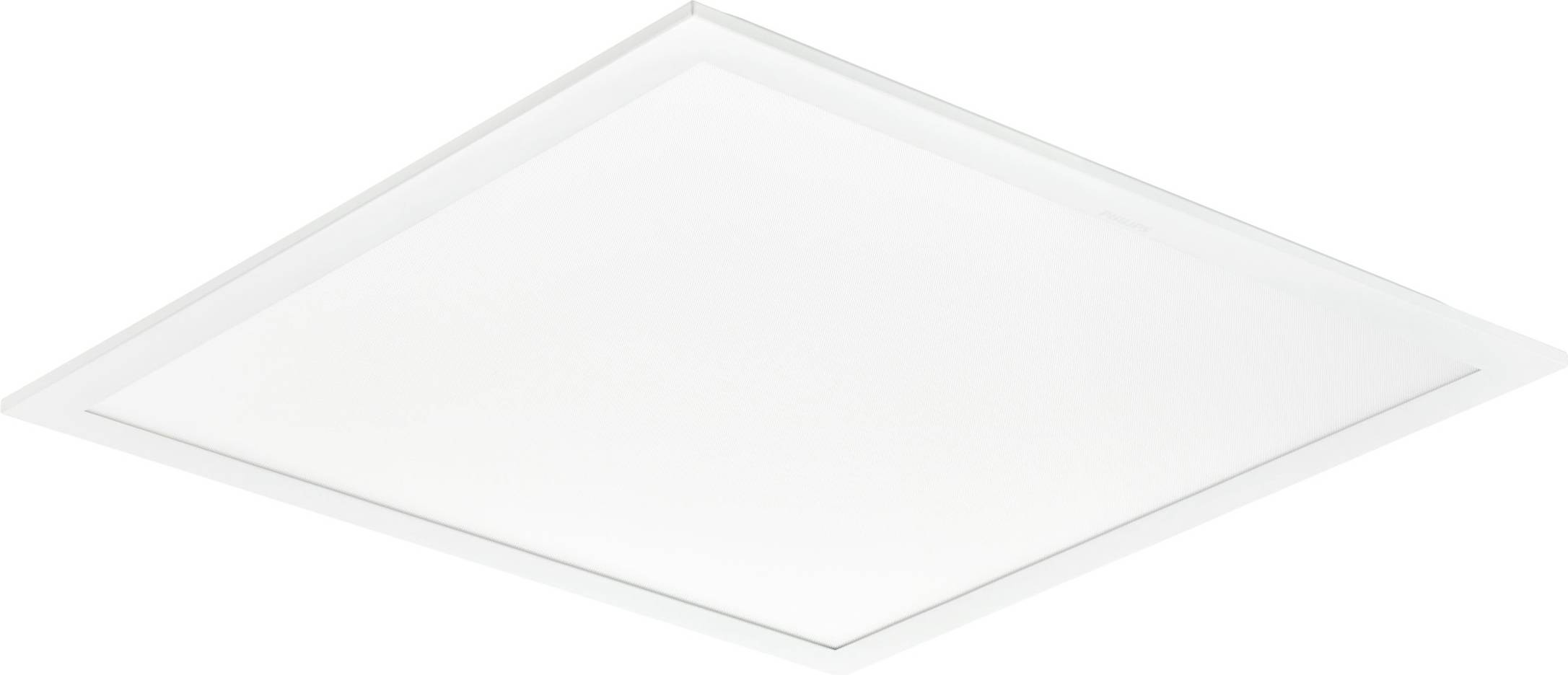

Philips RC133V G6 36S/840 WIA W62L62 OC 8720169750043 LED panel 26 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 26 W
- Total luminous flux= 3600 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED panel
- Operating voltage
220 V
240 V
- Bulb type
LED (monochrome)
26 W
4000 K
- Colour
White
- Total luminous flux
3600 lm
- Protection screen
Matt
- Light features
Incl. ballast
Dimmable
Direct light emission
Selectable luminous flux
Bluetooth control option
Ceiling mount option
Usable as a pendant light
Recess mount option
- Radiation angle
80°
- Protection class
II
IP40 (Front)
IP20 (back panel)
IK02
- Factory colour
White
- Material
Steel
Plastic
- Width
620 mm
- Height
70 mm
- Length
620 mm
n.rel.
- Type
powder-coated
Yes
- Light bulb included
Yes
Documents & Downloads
Datasheet
Datasheet 3826619 Philips RC133V G6 36S/840 WIA W62L62 OC 8720169750043 LED panel 26 W White White
User & Safety Instructions
User & Safety Instructions 3826619 Philips RC133V G6 36S/840 WIA W62L62 OC 8720169750043 LED panel 26 W White White
Description
CoreLine Panel Gen6, Module 625, Visible profile ceiling version, steel, white, signal white (RAL9003), Wireless Interact System Ready operating device, 3600 lm, 26 W, 138 lm/W, 4000 K, (0.38, 0.38) SDCM =3, UGR19, radiation angle (90°), diamond-shaped, Polystyrene, IP20/40 | Finger Contact Protection; Wire Protection, IK02 | 0.2 J Standard, Protection Class II, 2-pin connector
