Philips RC461B 40S/UE840 DEIA W30L120 VPC 8720169109353 LED recessed light 23 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 23 W
- Total luminous flux= 4000 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED recessed light
- Operating voltage
220 V
240 V
- No. of bulbs
192
- Bulb type
LED (monochrome)
23 W
4000 K
- Colour
White
- Total luminous flux
4000 lm
- Protection screen
Matt
- Light features
Incl. ballast
Dimmable
Direct light emission
Selectable luminous flux
Ceiling mount option
Recess mount option
- Radiation angle
80°
- Protection class
I
IP40 (Front)
IP20 (back panel)
IK03
- Factory colour
White
- Material
Steel
Plastic

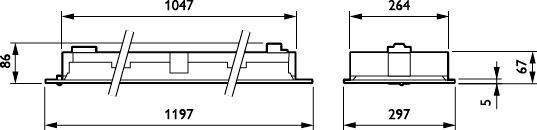

- Width
297 mm
- Height
72 mm
- Length
1197 mm
n.rel.
- Type
powder-coated
Yes
- Light bulb included
Yes
Documents & Downloads
Datasheet
Datasheet 3826348 Philips RC461B 40S/UE840 DEIA W30L120 VPC 8720169109353 LED recessed light 23 W White White
User & Safety Instructions
User & Safety Instructions 3826348 Philips RC461B 40S/UE840 DEIA W30L120 VPC 8720169109353 LED recessed light 23 W White White
Description
300x1200 mm, visible profile ceiling version, steel, white, signal white (RAL9003), recessed and insertion lights, Power supply with DALI interface, 4000 lm, 23 W, 174 lm/W, 4000 K, (0.38, 0.38) SDCM =3, CRI80, UGR16, WIDE BEAM, Office compatible, white reflector, opal, polycarbonate, IP20/40 | protected against finger contact, Emising surface, IK03 | 0.35 J reinforced, protection class I, connector and strain relief
