Philips RC463B 40S/940 SEIA W62L62 VPC CWL U4 8720169633445 LED panel 29 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 29 W
- Total luminous flux= 4000 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED panel
- Operating voltage
220 V
240 V
- No. of bulbs
144
- Bulb type
LED (monochrome)
29 W
4000 K
- Colour
White
- Total luminous flux
4000 lm
- Protection screen
Matt
- Light features
Incl. ballast
Dimmable
Direct light emission
Selectable luminous flux
Bluetooth control option
Ceiling mount option
Incl. motion detector
Incl. occupancy sensor
Incl. light sensor
Recess mount option
- Radiation angle
80°
- Protection class
I
IP40 (Front)
IP20 (back panel)
IK03
- Factory colour
White
- Material
Steel
Plastic

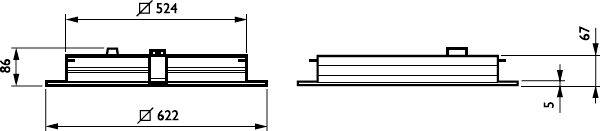

- Width
622 mm
- Height
82 mm
- Length
622 mm
n.rel.
- Type
powder-coated
Yes
- Light bulb included
Yes
Documents & Downloads
Datasheet
Datasheet 3825432 Philips RC463B 40S/940 SEIA W62L62 VPC CWL U4 8720169633445 LED panel 29 W White White
User & Safety Instructions
User & Safety Instructions 3825432 Philips RC463B 40S/940 SEIA W62L62 VPC CWL U4 8720169633445 LED panel 29 W White White
Description
RECASED, 620x620 mm, Visible profile ceiling version, steel, white, Signal white (RAL9003), Built-in and Insertion lights, Sensor-enabled Interact System Ready operating device for central emergency lighting, upgradable sensor slot with SNS210 sensor, 4000 lm, 29 W, 138 lm/W, 4000 K, (0.38, 0.38) SDCM =3, CRI=90, UGR16, L65=3000 cd/m², Wide beam, Office compatible, White reflector, Opal, Polycarbonate, IP20/40 | Protected against finger contact, Emising surface, IK03 | 0.35 J reinforced, protection class I, connector and strain relief, TP(b) diffuse flammability class, DC operated central emergency lighting
