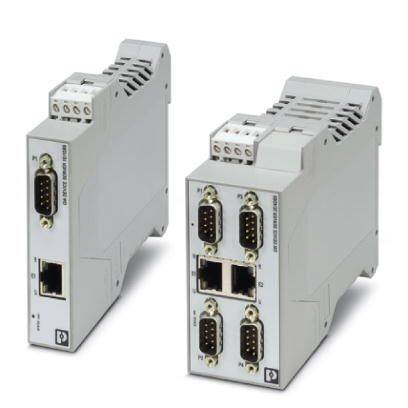

Image similar
Phoenix Contact 1021058 GW PN/ASCII 1E/2DB9 Data gateway Serial current loops, Profinet, D-SUB9, Gateway, Ethernet, RJ-4
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Depth: 115 mm
- Permissible air humidity (operation): 10 % ... 95% (no condensation)
- Altitude<: 2000 m.
- Protection class: IP20
- Net weight 136 g
- Material housing: PA 6.6
- Colour: grey
- Conductor cross-section flexible max.: 2.5 mm²
- Conductor cross-section flexible min.: 0.2 mm²
- Conductor cross-section AWG max. 12
- Conductor cross-section AWG min.: 24
- Number of ports: 1
- Connection type: RJ45 socket, shielded||D-SUB-9 plug
- Transmission length: ≤ 100 m (twisted pair, shielded)
- Serial transmission rate 10/100 MBit/s, auto-negotiation
- Product type
Data gateway
- Interfaces
Serial current loops
Profinet
D-SUB9
Gateway
Ethernet
RJ-45
- Type
GW PN/ASCII 1E/2DB9
- Operating voltage
30 V DC
- Max. operating temperature
+70 °C
- Min. operating temperature
-40 °C
- Operating temperature
-40 up to +70 °C
- Dim
(W x H) 22.5 mm x 99 mm
- Max. current consumption
85 mA
- Height
99 mm
- Width
22.5 mm
- Manufacturer part #
1021058
- Interfaces
Ethernet
PROFINET
- Current consumption
76 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2208978 Phoenix Contact 1021058 GW PN/ASCII 1E/2DB9 Data gateway Serial current loops, Profinet, D-SUB9, Gateway, Ethernet, RJ-4
Datasheet 2208978 Phoenix Contact 1021058 GW PN/ASCII 1E/2DB9 Data gateway Serial current loops, Profinet, D-SUB9, Gateway, Ethernet, RJ-4
User & Safety Instructions
User & Safety Instructions 2208978 Phoenix Contact 1021058 GW PN/ASCII 1E/2DB9 Data gateway Serial current loops, Profinet, D-SUB9, Gateway, Ethernet, RJ-4
Description
The GW PN/ASCII... converts serial RAW or ASCII strings to PROFINET. Includes one RJ45 connector and two D-SUB-9 connectors.
