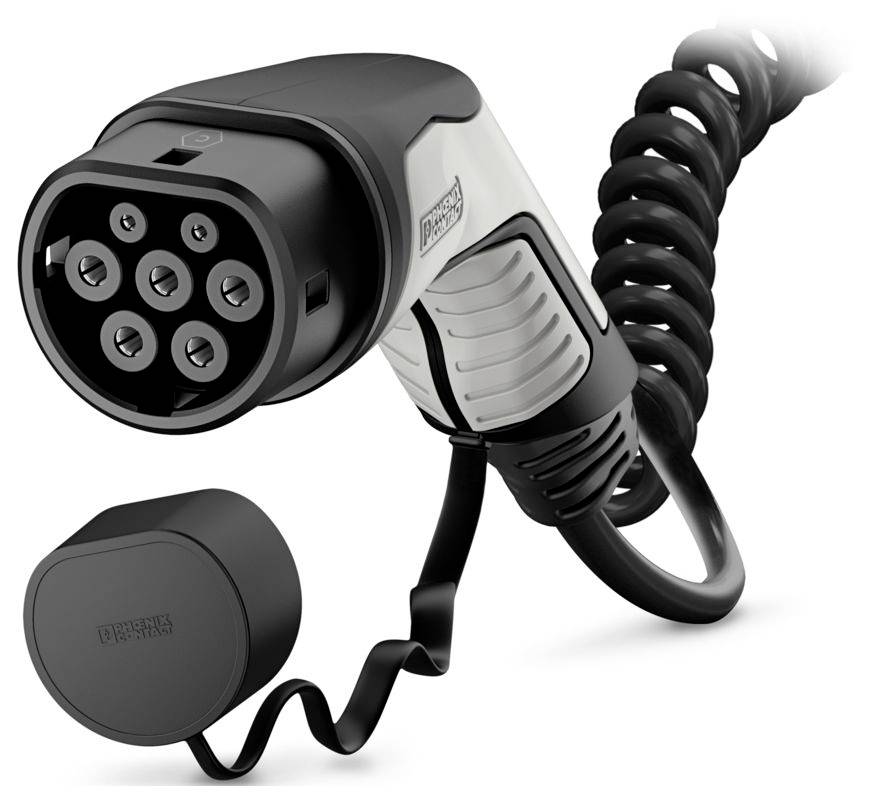

Phoenix Contact 1053264 eMobility charging cable 5 m Spiral cable
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of communication managers: 2
- Construction of vehicle side: Type 2
- Infrastructure side version: Free cable end
- Cable type: Spiral
- Contact material: Other
- Charging mode: Mode 3
- With Cable Control Box (ICCB): No.
- With temperature sensor: No.
- Nominal current 20 A
- Surface treatment contacts: Other
- Current type AC 3-phase
- Product type
eMobility charging cable
- Type A
Open cable ends
- Type B
Type 2
- No. of phases
3-phase
- Charging mode
Mode 3
- Cable length
5 m
- Cable features
Spiral cable
- Nominal voltage
480 V
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Charging current
20 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562366 Phoenix Contact 1053264 eMobility charging cable 5 m Spiral cable
User & Safety Instructions
User & Safety Instructions 3562366 Phoenix Contact 1053264 eMobility charging cable 5 m Spiral cable
Description
CHARX connect comfort, type 2, AC charging cable, 20 A permanent, 480 V AC, with vehicle charging plug and open cable end, cable: 5 m, black, coiled, with protective cap, Black, gray, Phoenix Contact logo, IEC 62196-2, for charging with AC current (AC) from electric vehicles (EV) with type 2 vehicle charging sockets
