Phoenix Contact 1054544 PG socket CAT6A IP20, IP00 Grey
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material casing: PBT
- Ambient temperature (operation): -5 °C - +50 °C.
- Connection type: screw terminals.
- AWG single-wire max. 12
- Connection cross-section: 4 mm²
- Weight: 101.2 g
- Material: Die-cast zinc, nickel-plated (RJ45)
- Mounting instructions: Shield connection: Threaded pin M4, tightening torque: 0.8 Nm - 1 Nm
- Product type
PG socket
- Light bulb features
CAT6A
- Outlets
1
- Nominal current
13 A
- Mounting type
Screw fastening
- Factory colour
Grey
IP20
IP00

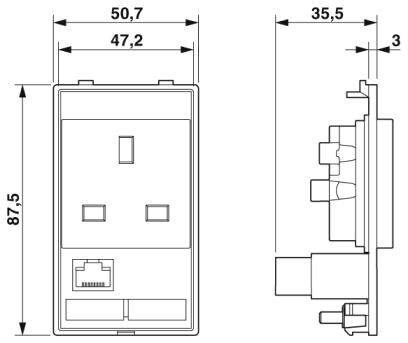

- Dim
(L x W x H) 87.5 x 50.7 x 43 mm
- Length
87.5 mm
- Width
50.7 mm
- Height
43 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2209057 Phoenix Contact 1054544 PG socket CAT6A IP20, IP00 Grey
Datasheet 2209057 Phoenix Contact 1054544 PG socket CAT6A IP20, IP00 Grey
User & Safety Instructions
User & Safety Instructions 2209057 Phoenix Contact 1054544 PG socket CAT6A IP20, IP00 Grey
Description
Earthing contact socket-outlet, plastic, for England, incl. RJ45 gender changer (socket/socket, shielded), CAT6A
