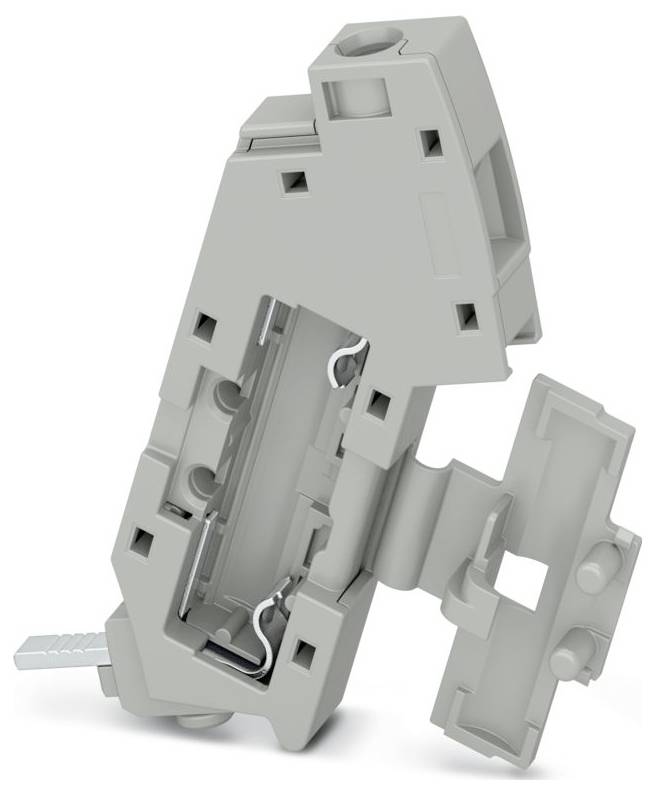

Image similar
Phoenix Contact 1054762 TTC-6-FC-UT Holder 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: TERMITRAB complete
- Message Surge Protection Faulty: None
- Connection type: screw terminals.
- M3 screw thread
- Tightening torque 0.5 Nm
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 4 mm².
- Wire cross-section AWG: 24 ... 12
- Width 6.2 mm +0.1 mm
- Height: 24 mm
- Depth: 47 mm
- Colour: Grey (RAL 7042)
- Flammability class according to UL 94 V-0
- Material: housing: PBT
- Mechanical Data: Mechanical Data
- Open side wall: No.
- Rated current 6.3 A
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 4000 m (amsl)
- Standards/regulations EN 60947-7-3
- Note: 2009
- Mounting type: Snap and screw on TERMITRAB complete
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- Operating voltage range 60 V DC
- Product type
Holder
IP20
- Manufacturer part #
1054762
- Dim
(W x H x D) 6.2 x 24 x 47 mm
- Width
6.2 mm
- Height
24 mm
- Depth
47 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562375 Phoenix Contact 1054762 TTC-6-FC-UT Holder 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3562375 Phoenix Contact 1054762 TTC-6-FC-UT Holder 1 pc(s)
Description
Fuse holder for overvoltage protection devices of the TERMITRAB product family complete with screw connection technology. Multiple port connection possible at TTC-6 housings. For commercial 5x20 mm fine-wire fuses.
