Phoenix Contact 1064363 SOL-SC-3ST-0-DC-1MPPT-1001EQ Generator junction box

A grey electrical distribution enclosure with a transparent front cover reveals internal wiring and multiple fuse components.

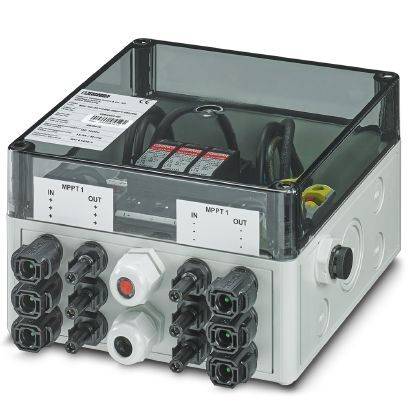

Electronic device with multiple ports, switches, and markings. Ports for 'IN', 'OUT', and 'MPPT'. Clear casing lid.

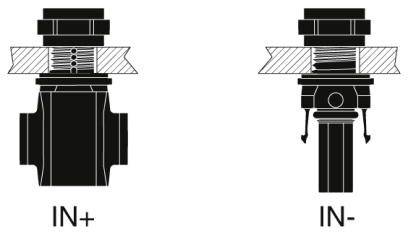

Diagram shows two valves: On the left marked with 'IN+', on the right marked with 'IN-'. Both valves have different orientations and functions.
A grey rectangle with two grey circles on a green and yellow striped background; below it an earth/ground symbol.
'Earth conductor' symbol: yellow and green striped cable sheath with earthing symbol underneath.

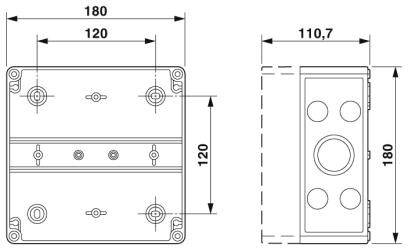

Technical drawing of a rectangular enclosure with dimensions: 180 mm x 120 mm. Shows front and side view with drill holes.
Phoenix Contact 1064363 SOL-SC-3ST-0-DC-1MPPT-1001EQ Generator junction box-6

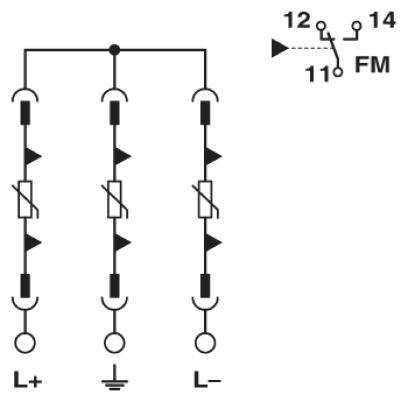

Circuit diagram of an electrical circuit with three parallel diode branches, connected to positive and negative terminals.

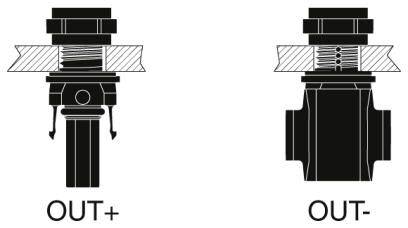

Diagram shows two valves: On the left 'OUT+' with arrows indicating flow direction, on the right 'OUT-' without flow arrows.
1/9
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • IP65 rating
  • Ambient temperature (operation): -20 °C - +55 °C.
  • Cover/door material: Polycarbonate (transparent)
  • Number of string inputs: 3
  • Current per string: 13.3 A.
  • Number of outputs: 3 (per MPP tracker)
  • Number of MPP trackers supported: 1
  • Type of cable entry: SUNCLIX
  • Cable cross-section String input: 2.5 mm² - 6 mm²
  • Cable cross-section output: 2.5 mm² - 6 mm²
Product type

Generator junction box

Dim

(W x H x D) 180 x 180 x 111 mm

Weight

2.4050

Content

1 pc(s)

Width

180 mm

Height

180 mm

Depth

111 mm

System voltage

1000 V

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2209083 Phoenix Contact 1064363 SOL-SC-3ST-0-DC-1MPPT-1001EQ Generator junction box

Datasheet 2209083 Phoenix Contact 1064363 SOL-SC-3ST-0-DC-1MPPT-1001EQ Generator junction box

User & Safety Instructions

User & Safety Instructions 2209083 Phoenix Contact 1064363 SOL-SC-3ST-0-DC-1MPPT-1001EQ Generator junction box

Description

Standard-compliant switching device combination thanks to the application of DIN EN 61439.

This text is machine translated.

What kind of Solar Installation Accessories are you looking for?

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
