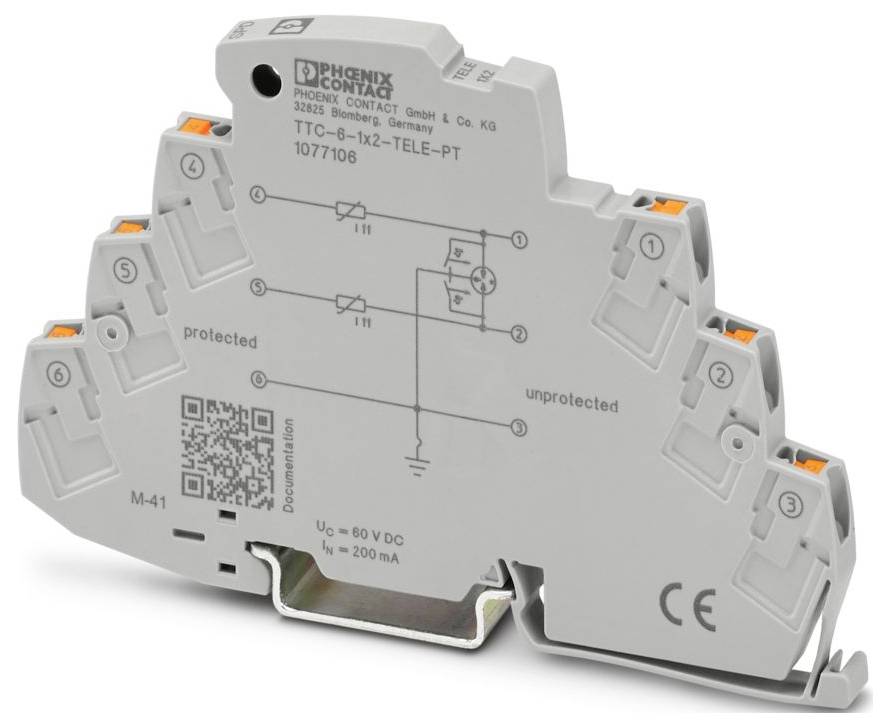

Name: Phoenix Contact 1077106 TTC-6-1X2-TELE-PT Surge protection device 10 kA 1 pc(s)
Brand: Phoenix Contact
SKU: 3563113

'Single-channel surge protection device for electronic equipment with a maximum voltage of 60 V DC and current of 200 mA.'

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product family: TERMITRAB complete
IEC TEST CLASS B2;C1;C2;C3;D1
Designed: Single piece mounting rail module
Message Surge Protection Faulty: None
Push-in connection
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
Conductor cross-section rigid: 0.2 mm² ... 4 mm².
Wire cross-section AWG: 24 ... 12
Width 6.2 mm +0.1 mm
Height: 1.8" (105.8 mm)
Depth: 69.5 mm (including mounting rail 7.5 mm)
Colour: Grey (RAL 7042)
Flammability class according to UL 94 V-0
Material: housing: PBT
Mechanical Data: Mechanical Data
Open side wall: No.
Highest continuous voltage UC 60 V DC
Rated current 200 mA
Operating current IC at UC ≤ 1 µA
Earth current IPE ≤ 1 µA
Total leakage surge current ITtotal (8/20) µs 10 kA
Protection level Up (wire): ≤ 650 V (B2 - 1 kV);≤ 800 V (B2 - 4 kV) ;≤ 1 kV (C1 - 1 kV / 5 A);≤ 1.4 kV (C2 - 15 kV / 500 kA); ≤ 850 V (C3 - 10 A);≤ 1.1 kV (C3 - 25 A);≤ 1.4 kV (C3 - 100 A )
Protection level Up (wire-earth): ≤ 600 V (B2 - 1 kV);≤ 750 V (B2 - 4 kV) ;≤ 750 V (C1 - 10 kV / 5 A);≤ 650 V (C2 - 15 kV / 500 kA);≤ 800 V (C3 - 1 A);≤ 750 V (C3 - 25 A);≤ 1.2 kV (C3 - 100 A)
Capacity (wire-wire): Typ. 10 pF
Resistance per path: 6 Ω
Surge current (Ground): B2 - 4 kV / 100 A; C1 - 1 kV / 500 A; C2 - 10 kV / 5 kA; C3 - 100 A; D1 - 500 A
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -40 °C ... 70 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Altitude: ≤ 4000 m (amsl)
Standards/regulations EN 61643-21
Note:2001 + A1:2009 + A2:2013
Mounting type: Mounting rail: TH 35 - 7.5 mm
Insulation properties: Insulation properties
Over voltage category III
Pollution level: 2
Insulating material PBT
Permissible air humidity (operation): 5 % ... 95 %.
Conductor pairs per module: 1
Nominal impulse surge current In (8/20) µs (wire-ground): 5 kA
Impulse leakage surge current Iimp (10/350) µs (wire-ground) 0.5 kA
Response time TA (wire-earth): ≤ 100 ns
Impulse reset time (wire-earth): ≤ 200 ms
EN 61643-21, EN 61643-21
Nominal suppression current In (8/20) µs (wire-wire) 5 kA
Impulse leakage surge current Imp (10/350) µs (wire conductor) 0.5 kA
Response time TA (wire-wire): ≤ 100 ns
AE insertion loss, sym.: Typ. 1 dB (≤ 40 MHz/150 Ω)
Cut-off frequency FG (3 dB), balanced In the 150 Ω system: Typ. 100 MHz
Surge current (core): B2 - 4 kV / 100 A; C1 - 1 kV / 500 A; C2 - 10 kV / 5 kA; C3 - 100 A
Impulse reset time (wire): ≤ 30 ms
