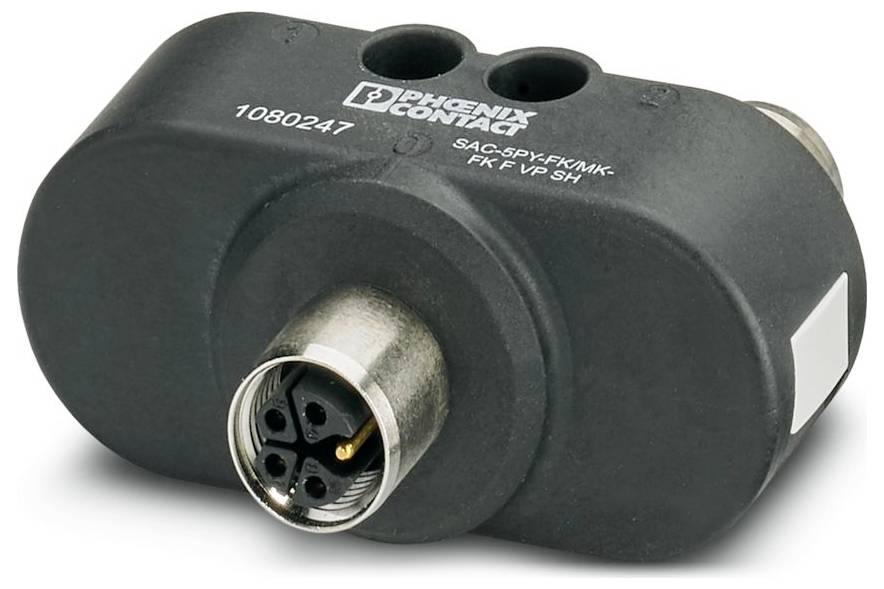

Phoenix Contact 1080247 Y-splitter M12 No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Y-splitter
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
M12 socket, straight
M12 socket, straight
No. of pins
5
Datasheet (PDF)
Technical specifications
- Socket: Straight M12
- Number of pins: 5
- NOMINAL VOLTAGE 630 V AC
- Width 28 mm
- Height: 47 mm
- Flammability class according to UL 94: V0
- Mechanical Data: Mechanical Data
- Ambient conditions: Environmental conditions
- Protection system: IP65
- Ambient temperature (operation): -40 °C ... 85 °C (plug/socket)
- Standards/regulations: IEC 61076-2-111
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level 3
- Material seal HNBR
- Length: 62.5 mm.
- Material contact surface Au
- Nominal current IN 16 A (at 40 °C)
- Material: CuZn (pin contact);(socket contact)
- M12 thread type
- Mounting instructions: CAUTION: When laying cables, observe the permissible bending radii, as the degree of protection is endangered by excessive bending forces. Catch mechanical loads before the connector, e.g. Through cable ties.
- M12 connector
- Status display: No.
- Application: Power supply
- Coding: K
- Status display available: No.
- Material contact carrier: PBT
- Shielded: Yes
- Amount of the cable outlet: 2
- Mating cycles: 100
- Track 1: Track 1
- Coding type K
- Track 2: Track 2
- Central distance 35 mm
- Material grip body: PBT
- Material: Brass, nickel-plated
- Track 3: Track 3
- Type
SAC-5PY-FK/MK-FK F VP SH
- Product type
Y-splitter
- Connector standard
Sensor connector
- Connection side A
M12 plug, straight
- Connection side B
M12 socket, straight
M12 socket, straight
- No. of pins
5
- Nominal voltage
630 V AC
- Connection
M12 socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
K
- Contact material
CuZn
- Contact surface
Gold (Au)
IP65
- Features
Shielded
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Manufacturer part #
1080247
- Content
1 pc(s)
- Rated voltage
630 V
- Shielded
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563259 Phoenix Contact 1080247 Y-splitter M12 No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3563259 Phoenix Contact 1080247 Y-splitter M12 No. of pins (RJ): 5 1 pc(s)
Description
Y distributor, 5-pin, shielded, direct plug M12, coding: K, on straight socket M12, coding: K and straight socket M12, coding: K, for alternating current up to 16 A/630 V, parallel distributor
This text is machine translated.
