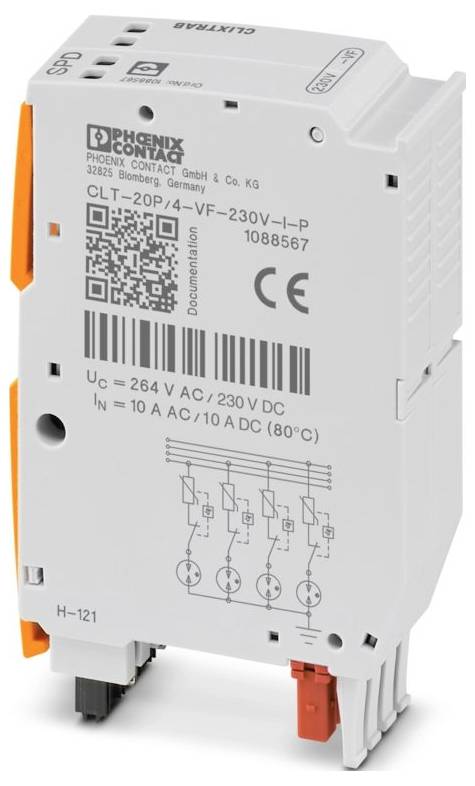

Phoenix Contact 1088567 CLT-20P/4-VF-230V-I-P Surge protection plug 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- CLIXTRAB product family
- IEC TEST CLASS C1;C2;C3;D1
- Plug type
- Message Surge Protection Faulty: Optical
- NOMINAL VOLTAGE 240 V AC
- Connection type: Pluggable
- Width 20.6 mm
- Height: 53.25 mm
- Depth: 81.9 mm
- Colour: Light gray (RAL 7035)
- Flammability class according to UL 94 V-0
- Material housing PA 6.6+GV 20 %
- Mechanical Data: Mechanical Data
- Open side wall: No.
- Direction of effect: Line-Earth Ground
- Maximum continuous voltage UC: 230 V DC;264 V AC
- RATED CURRENT 10 A AC (80 °C / 10 A AC C);6 A DC (80 °C / 6.3 A DC F);10 A DC (80 °C / 10 A DC D01 GR)
- Operating current IC at UC ≤ 1 µA
- Earth current IPE ≤ 4 µA
- Total leakage surge current ITtotal (8/20) µs 12 kA
- Protection level Up (wire-ground): ≤ 1.4 kV (C1 - 1.5 kV / 750 A);≤ 1.4 kV (C2 - 6 kV / 3 kA);≤ 1.5 kV (C3 - 50 A)
- Required maximum backup fuse: 10 A AC (C);6.3 A DC (F);10 A DC (D01 GR)
- C1 - 1.5 kV / 750 A; C2 - 500 kV / 3 kA; C3 - 50 A; D1 - 6 A
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 80 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m (amsl)
- Standards/regulations EN 61643-21
- Note:2001 + A1:2009 + A2:2013
- Mounting type: On base element
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- PA 6.6+GV 20%
- Permissible air humidity (operation): 5 % ... 95 %.
- Shock (operation): 5g (half sine / 11 ms / 3x ±X, ±Y, ±Z);10g (half sine / 8 ms / 3x ±X, ±Y, ±Z);5g (half sine / 30 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation): 0.58g (5 ... 150 Hz / 5 h / X, Y, Z);1g (5 ... 2000 Hz / 5 h / X, Y, Z)
- Response time TA (wire-earth): ≤ 100 ns
- AE Insertion loss, unbalanced: Type 0.3 dB (≤ 60 MHz/150 Ω)
- Impulse reset time (wire-earth): ≤ 30 ms
- Cut-off frequency FG (3 dB), unbalanced (Signal mass) in 150 Ω system: Type. 60 MHz
- Capacity (wire signal mass): Type 20 pF
- Product type
Surge protection plug
- Nominal voltage
230 V AC
- Type
Connector
IP20
- Manufacturer part #
1088567
- Dim
(W x H x D) 20.6 x 53.25 x 81.9 mm
- Width
20.6 mm
- Height
53.25 mm
- Depth
81.9 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563550 Phoenix Contact 1088567 CLT-20P/4-VF-230V-I-P Surge protection plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3563550 Phoenix Contact 1088567 CLT-20P/4-VF-230V-I-P Surge protection plug 1 pc(s)
Description
Surge protection plug can be plugged directly onto 4 terminal blocks, with integrated status display on the module for a 4-wired floating signal circuit with Hohem nominal current. Nominal voltage: 230 V/AC
