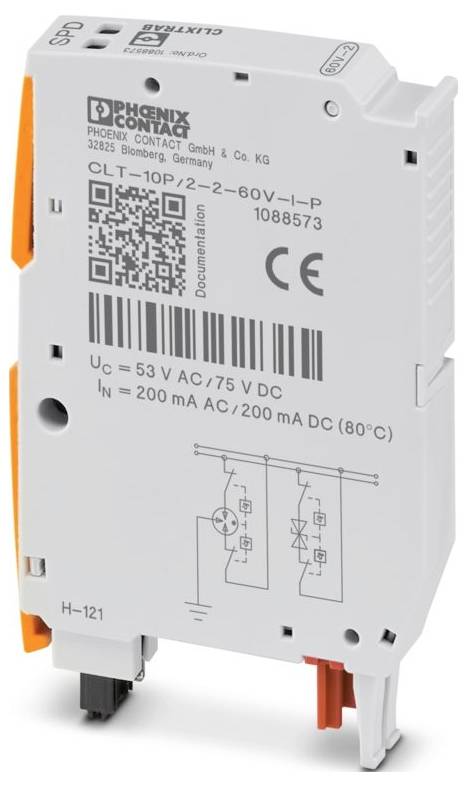

Phoenix Contact 1088573 CLT-10P/2-2-60V-I-P Surge protection plug 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- CLIXTRAB product family
- IEC TEST CLASS C1;C2;C3;D1
- Plug type
- Message Surge Protection Faulty: Optical
- NOMINAL VOLTAGE 60 V DC
- Connection type: Pluggable
- Width: 10.3 mm
- Height: 53.25 mm
- Depth: 81.9 mm
- Colour: Light gray (RAL 7035)
- Flammability class according to UL 94 V-0
- Material housing PA 6.6+GV 20 %
- Mechanical Data: Mechanical Data
- Open side wall: No.
- Direction of action: Line-Line & Line-Earth Ground
- Maximum continuous voltage UC: 75 V DC;53 V AC
- Rated current 200 mA (80 °C)
- Operating current IC at UC ≤ 1 µA
- Earth current IPE ≤ 1 µA
- Total leakage surge current ITtotal (8/20) µs 10 kA
- Protection level Up (wire-wire): ≤ 240 V (C3 - 40 A)
- Protection level Up (Ground wire): ≤ 1.55 kV (C1 - 2 kV / 1 kA);≤ 1.2 kV (C2 - 10 kV / 5 kA);≤ 1.65 kV (C3 - 100 A)
- Capacity (wire-wire): Typ. 500 pF
- Required maximum backup fuse: 200 mA (T)
- C1 - 2 kV / 1 kA; C2 - 1.25 kV / 5 kA; C3 - 100 A; D1 - 10 kA
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 80 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m (amsl)
- Standards/regulations EN 61643-21
- Note:2001 + A1:2009 + A2:2013
- Mounting type: On base element
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level 3
- PA 6.6+GV 20%
- Permissible air humidity (operation): 5 % ... 95 %.
- Shock (operation): 5g (half sine / 11 ms / 3x ±X, ±Y, ±Z);10g (half sine / 8 ms / 3x ±X, ±Y, ±Z);5g (half sine / 30 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation): 0.58g (5 ... 150 Hz / 5 h / X, Y, Z);1g (5 ... 2000 Hz / 5 h / X, Y, Z)
- Response time TA (wire-earth): ≤ 100 ns
- AE Insertion loss, unbalanced: Type 0.3 dB (≤ 60 MHz/150 Ω)
- Impulse reset time (wire-earth): ≤ 100 ms
- Response time TA (wire-wire): ≤ 1 ns
- AE insertion loss, sym.: Typ. 0.3 dB (≤ 1.3 MHz / 150 Ω)
- Cut-off frequency FG (3 dB), balanced In the 150 Ω system: Typ. 4.5 MHz
- Surge current resistance (wire-wire) C3 - 40 A
- Cut-off frequency FG (3 dB), unbalanced (Signal mass) in 150 Ω system: Type. 60 MHz
- Capacity (wire signal mass): Type 15 pF
- Product type
Surge protection plug
- Leakage current
10 kA
- Nominal voltage
60 V DC
- Type
Connector
IP20
- Manufacturer part #
1088573
- Dim
(W x H x D) 10.3 x 53.25 x 81.9 mm
- Width
10.3 mm
- Height
53.25 mm
- Depth
81.9 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563584 Phoenix Contact 1088573 CLT-10P/2-2-60V-I-P Surge protection plug 10 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3563584 Phoenix Contact 1088573 CLT-10P/2-2-60V-I-P Surge protection plug 10 kA 1 pc(s)
Description
Surge protection plug can be plugged directly into 2 terminal blocks, with integrated status display on the module for a 2-wired, floating signal circuit. Nominal voltage: 60 V/DC
This text is machine translated.
