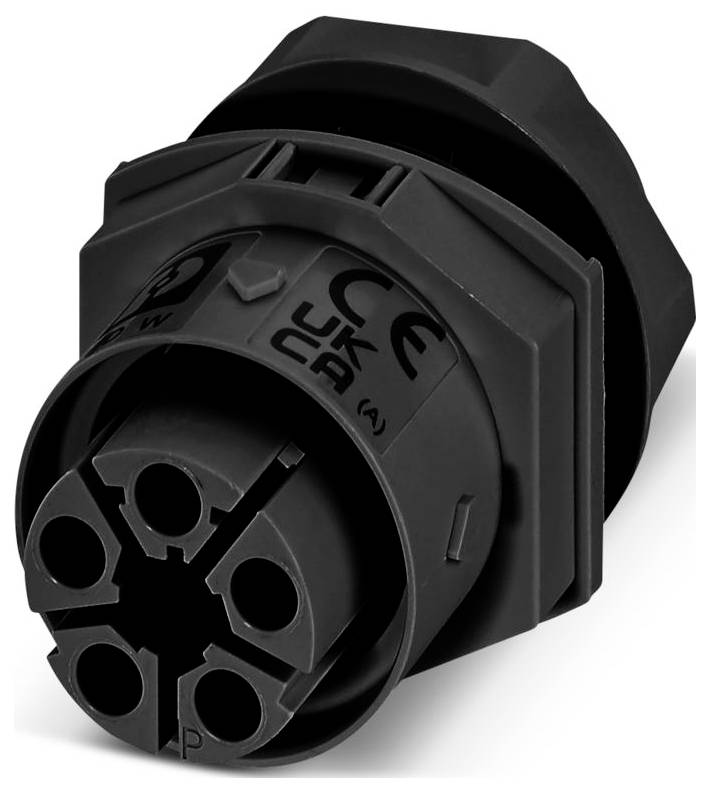

Phoenix Contact 1088686 Feedthrough
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of connections per pin:1
- Built-in version: Built-in part/connector
- Colour of the coding/contact insert: Black
- Thread connection dimension M25
- Halogen-free: No.
- Mechanical coding: Yes
- Surface treatment contacts: Silver-plated
- PIN identification: Other
- Number of pins: 5
- Material of housing: Polyamide (PA)
- Product type
Feedthrough
- Type A
Socket
- Connection
Push-in wire connector
- Rated voltage
600 V
- Test current
17.5 A
- Mounting type
Wall
- Number of pins
5
IP66
- Height
32.998247 mm
- Length
43.45 mm
- Width
32.998247 mm
- Case colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563732 Phoenix Contact 1088686 Feedthrough
User & Safety Instructions
User & Safety Instructions 3563732 Phoenix Contact 1088686 Feedthrough
Description
Wall ducts, for connectors, product family: IPD, connection type: Push-in connection, pin number: 4+PE, M25, socket, 0.5 mm² ... 2.5 mm², 600 V, 17.5 a, PA, black, Coding: P
